FP1107R2-R30-R 数据表(PDF) 3 Page - Eaton All Rights Reserved.

部件名 FP1107R2-R30-R
功能描述  High frequency, high current power inductors
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  EATON [Eaton All Rights Reserved.]
网页  https://www.eaton.com
标志 EATON - Eaton All Rights Reserved.

FP1107R2-R30-R 数据表(HTML) 3 Page - Eaton All Rights Reserved.

  FP1107R2-R30-R Datasheet HTML 1Page - Eaton All Rights Reserved. FP1107R2-R30-R Datasheet HTML 2Page - Eaton All Rights Reserved. FP1107R2-R30-R Datasheet HTML 3Page - Eaton All Rights Reserved. FP1107R2-R30-R Datasheet HTML 4Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
3
www.eaton.com/electronics
Technical Data 4342
Effective June 2017

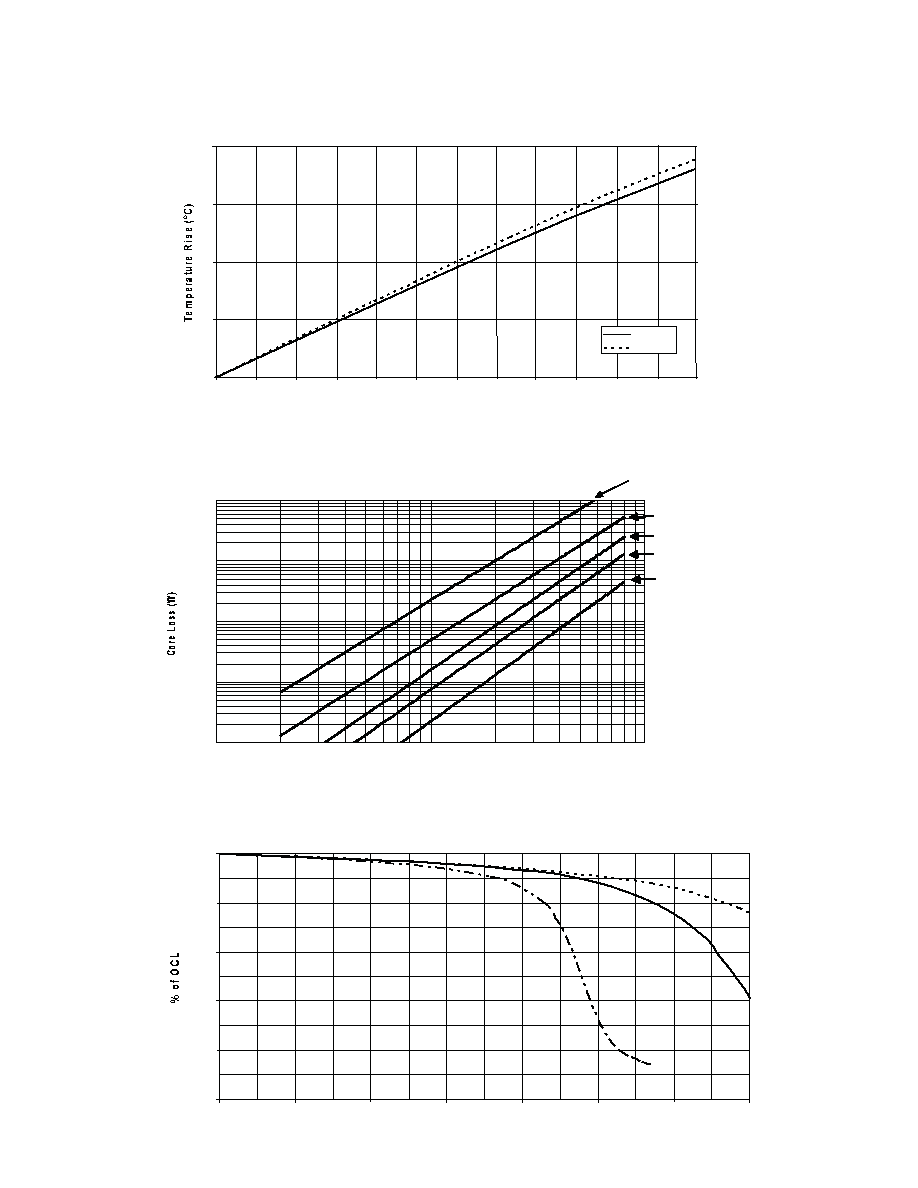

Core loss vs Bp-p
Inductance characteristics
FP1107
High frequency, high current power inductor
Temperature rise vs total loss
80
60
40
20
FP1107R 1
FP1107R 2
0
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
T otal Loss (W)
1MHz
10
500kHz
300kHz
200kHz
1
100kHz
0.1
0.01
0.001
100
1000
10000
Bp-p (Ga uss)
% of O C L vs % of Isat1
100%
-40°C
80%
+25°C
60%
40%
+125°C
20%
0%
0%
20%
40%
60%
80%
100%
120%
140%
% of Isat1



Html Pages

1 2 3 4
