FP1110V1-R32-R 数据表(PDF) 4 Page - Eaton All Rights Reserved.

部件名 FP1110V1-R32-R
功能描述  High frequency, high current power inductors
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  EATON [Eaton All Rights Reserved.]
网页  https://www.eaton.com
标志 EATON - Eaton All Rights Reserved.

FP1110V1-R32-R 数据表(HTML) 4 Page - Eaton All Rights Reserved.

  FP1110V1-R32-R Datasheet HTML 1Page - Eaton All Rights Reserved. FP1110V1-R32-R Datasheet HTML 2Page - Eaton All Rights Reserved. FP1110V1-R32-R Datasheet HTML 3Page - Eaton All Rights Reserved. FP1110V1-R32-R Datasheet HTML 4Page - Eaton All Rights Reserved. FP1110V1-R32-R Datasheet HTML 5Page - Eaton All Rights Reserved. FP1110V1-R32-R Datasheet HTML 6Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 4 / 6 page
background image
4
Technical Data
10427
Effective August 2015
FP1110V
High frequency, high current power inductors
www.eaton.com/elx

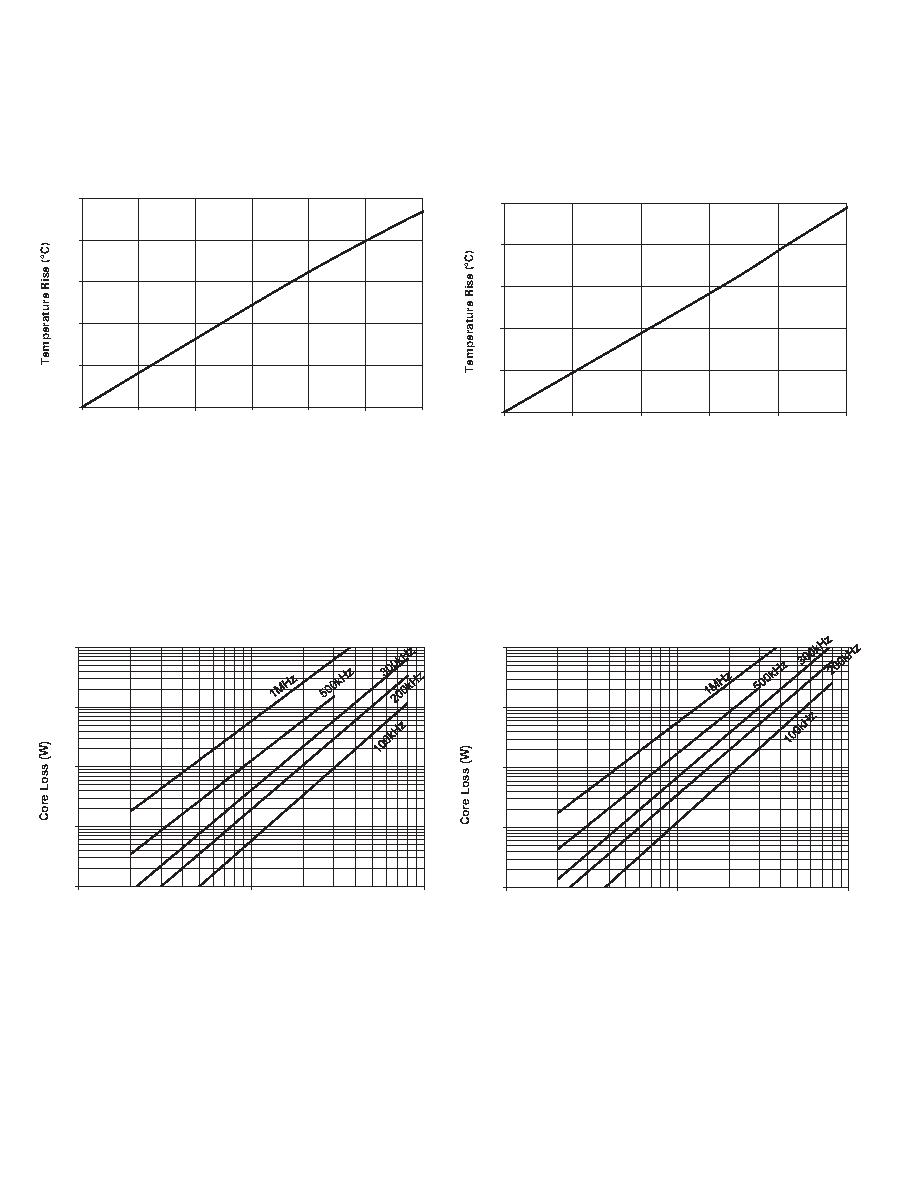

Temperature rise vs. total loss
