Technical Data 10148
Effective June 2017

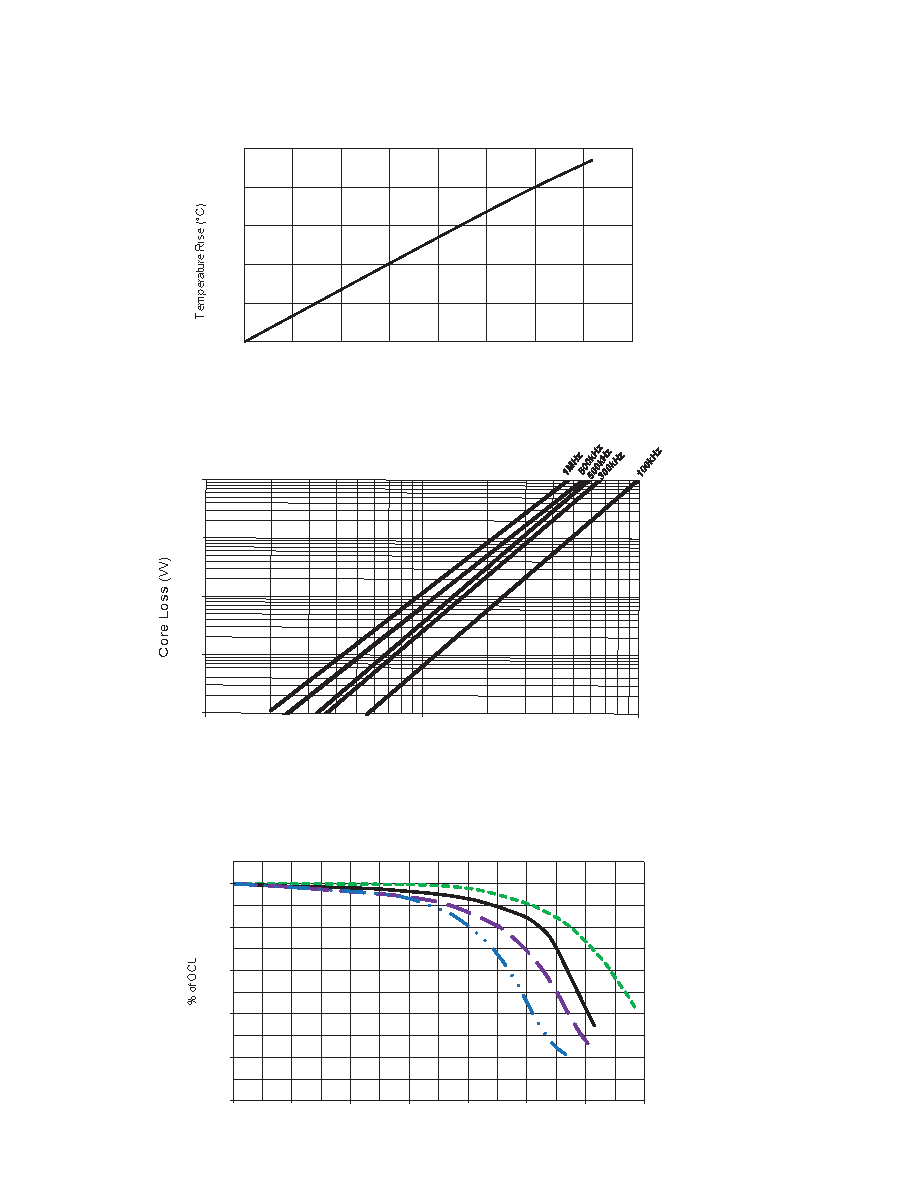

Core loss vs Bp-p
Inductance characteristics
FP1208
High frequency, high current power inductor
Temperature rise vs total loss
50
40
30
20
10
0
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Total Loss (W)
% of OCL vs % of I sat1
100%
80%
-40°C
60%
+25°C
40%
+85°C
20%
+125°C
0%
0%
20%
40%
60%
80%
100%
120%
140%
% of Isat1
10
1
0.1
0.01
0.001
100
1000
10000
Bp-p (Gauss)
