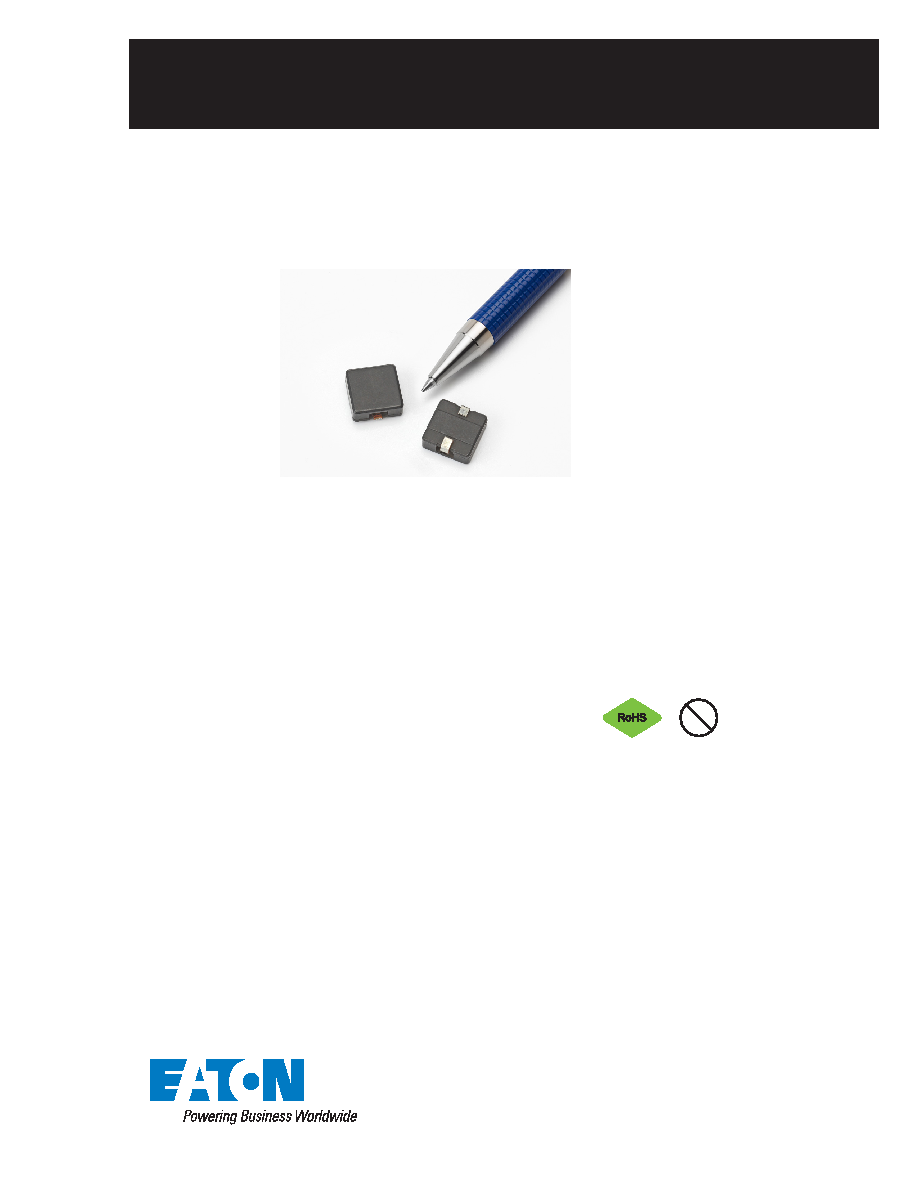

Technical Data 4126

Effective October 2015

Supersedes March 2007

Product description

•

Low profile surface mount inductors designed

for higher speed switch mode applications

requiring low voltage, and high current

•

Design utilizes high temperature powder iron

material with a non-organic binder to eliminate

thermal aging

•

Inductance range from 0.17 uH to 47.9 uH

•

Current range from 1.7 to 56 Amps

•

Frequency range 1kHz to 500kHz

Applications

•

Multi-phase regulators

•

Voltage Regulator Modules (VRMs)

•

Distributed power systems DC-DC converters

•

Notebook and laptop regulators

•

Desktop and server VRMs and EVRDs

•

Point-of-Load (POL) modules

•

Battery power systems

•

High current power supplies

•

Data networking and storage systems

Environmental data

•

Storage temperature range (component):

-40°C to +155°C

•

Operating temperature range: -40°C to +155°C

(ambient plus self-temperature rise)

•

Solder reflow temperature: J-STD-020D

compliant

HC8LP

Low profile, high current power inductors

Pb
