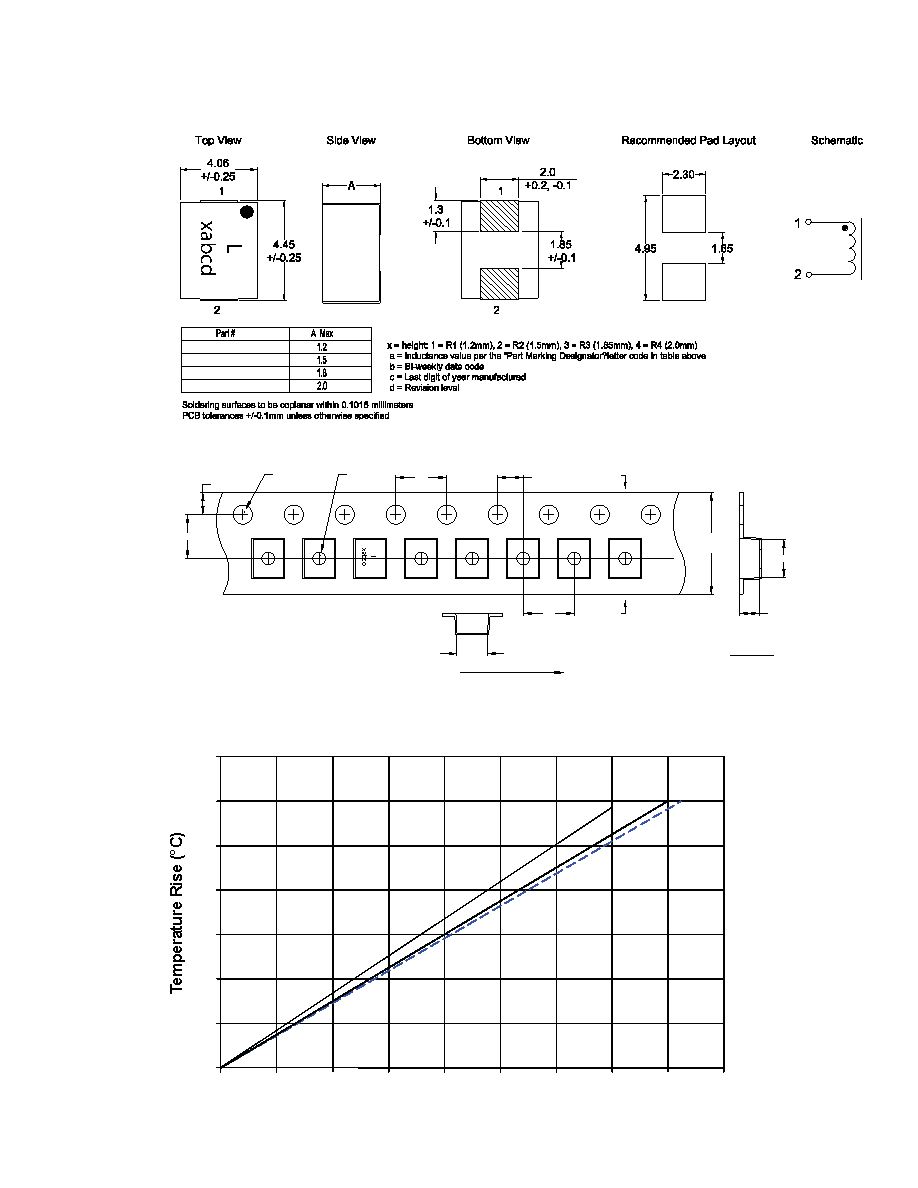

4 / 13 page

www.eaton.com/elx

Technical Data 10230

Effective August 2014

MPIA4040 Automotive Grade High

Current, High Frequency Miniature

Power Inductors

Temperature rise vs. total loss

Dimensions - mm

Packaging information - mm

MPIA4040R1-xxx-R

MPIA4040R2-xxx-R

MPIA4040R3-xxx-R

MPIA4040R4-xxx-R

Part Marking:

xabcd

L = Automotive product

User Direction of feed

12.0

±0.30

SECTION A-A

4.45

4.8

MPIA4040R1=1.30

MPIA4040R2=1.60

8.0

1.75

5.5

1.5 dia

1.5 dia.

4.0

2.0

MPIA4040R3=1.95

MPIA4040R4=2.1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Total Loss (W)

R1, R4

Supplied in tape and reel packaging:

•

MPIA4040R1 = 5500

parts per 13” diameter reel

•

MPIA4040R2 = 4500 parts per 13” diameter reel

•

MPIA4040R3 = 3500 parts per 13” diameter reel

•

MPIA4040R4 = 3000 parts per 13” diameter reel

Do not route traces or vias underneath the inductor

Discontinued,

Effective

September

15,

2016

or until

inventory

is depleted.

Recommended

replacement

MPIA40-V1
