FP1505R1-R10-R 数据表(PDF) 3 Page - Eaton All Rights Reserved.

部件名 FP1505R1-R10-R
功能描述  High frequency, high current power inductors
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  EATON [Eaton All Rights Reserved.]
网页  https://www.eaton.com
标志 EATON - Eaton All Rights Reserved.

FP1505R1-R10-R 数据表(HTML) 3 Page - Eaton All Rights Reserved.

  FP1505R1-R10-R Datasheet HTML 1Page - Eaton All Rights Reserved. FP1505R1-R10-R Datasheet HTML 2Page - Eaton All Rights Reserved. FP1505R1-R10-R Datasheet HTML 3Page - Eaton All Rights Reserved. FP1505R1-R10-R Datasheet HTML 4Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
3
www.eaton.com/electronics
Technical Data 4365
Effective July 2017

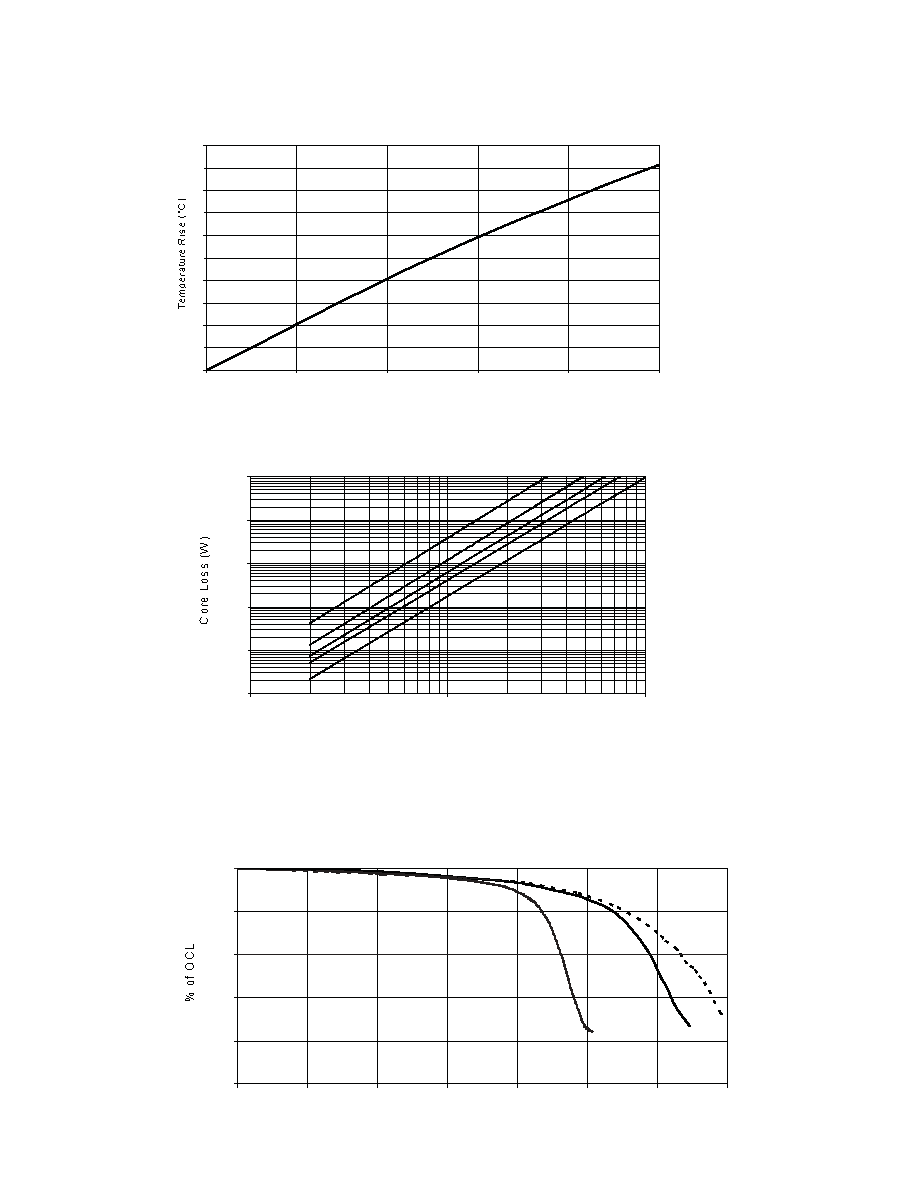

Core loss vs Bp-p
Inductance characteristics
FP1505
High frequency, high current power inductor
