FP1505R1-R30-R 数据表(PDF) 1 Page - Eaton All Rights Reserved.

部件名 FP1505R1-R30-R
功能描述  High frequency, high current power inductors
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  EATON [Eaton All Rights Reserved.]
网页  https://www.eaton.com
标志 EATON - Eaton All Rights Reserved.

FP1505R1-R30-R 数据表(HTML) 1 Page - Eaton All Rights Reserved.

  FP1505R1-R30-R Datasheet HTML 1Page - Eaton All Rights Reserved. FP1505R1-R30-R Datasheet HTML 2Page - Eaton All Rights Reserved. FP1505R1-R30-R Datasheet HTML 3Page - Eaton All Rights Reserved. FP1505R1-R30-R Datasheet HTML 4Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 1 / 4 page
background image

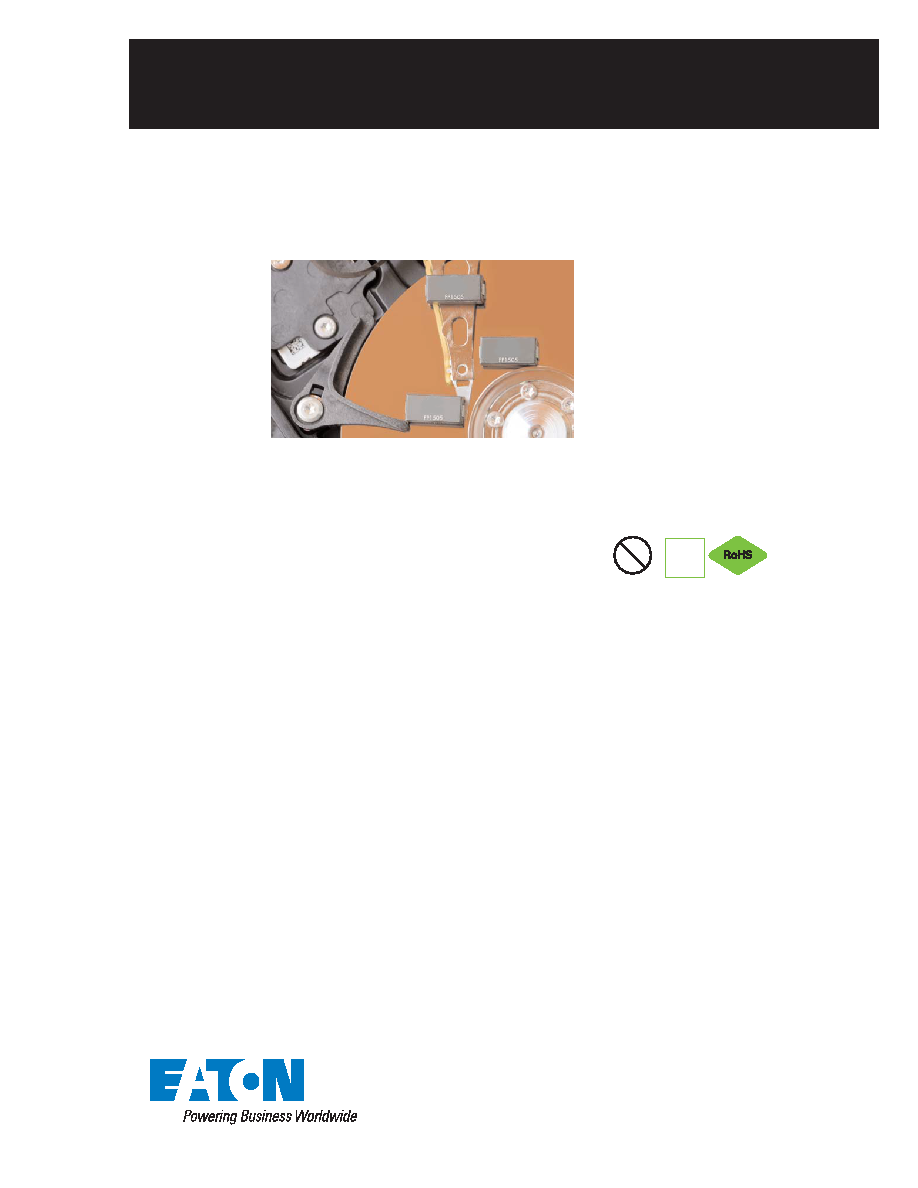

Technical Data 4365
Effective July 2017
Supersedes April 2009
Product features
•
7.0 x 15.0 x 5.0mm surface mount package
•
Ferrite core material
•
High current handling capability, low core loss
•
Designed for high speed, high current switch
mode applications
•
Tight DCR tolerance for sensing circuits
•
Inductance range from 100 nH to 400 nH
•
Current range from 24 A to 105 A
•
Frequency range up to 1 MHz
Applications
•
Storage temperature range (component):
-40 °C to +125 °C
•
Operating temperature range: -40 °C to +125 °C
(ambient plus self-temperature rise)
•
Solder reflow temperature:
J-STD-020 (latest revision) compliant
FP1505
High frequency, high current power inductors
Pb HALOGEN
HF
FREE
•
Multi-phase regulators
•
Voltage Regulator Module (VRM)
•
Desktop and server VRMs and EVRDs
•
Data networking and storage systems
•
Notebook regulators
•
Graphics cards and battery power systems
•
Point of load modules
•
DCR current sensing
Environmental data
SMD Device
