HC2LP-2R2-R 数据表(PDF) 3 Page - Eaton All Rights Reserved.

部件名 HC2LP-2R2-R
功能描述  Low profile, high current power inductors
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  EATON [Eaton All Rights Reserved.]
网页  https://www.eaton.com
标志 EATON - Eaton All Rights Reserved.

HC2LP-2R2-R 数据表(HTML) 3 Page - Eaton All Rights Reserved.

  HC2LP-2R2-R Datasheet HTML 1Page - Eaton All Rights Reserved. HC2LP-2R2-R Datasheet HTML 2Page - Eaton All Rights Reserved. HC2LP-2R2-R Datasheet HTML 3Page - Eaton All Rights Reserved. HC2LP-2R2-R Datasheet HTML 4Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
3
Technical Data
4114
Effective October 2015
HC2LP
Low profile, high current power inductors
www.eaton.com/elx

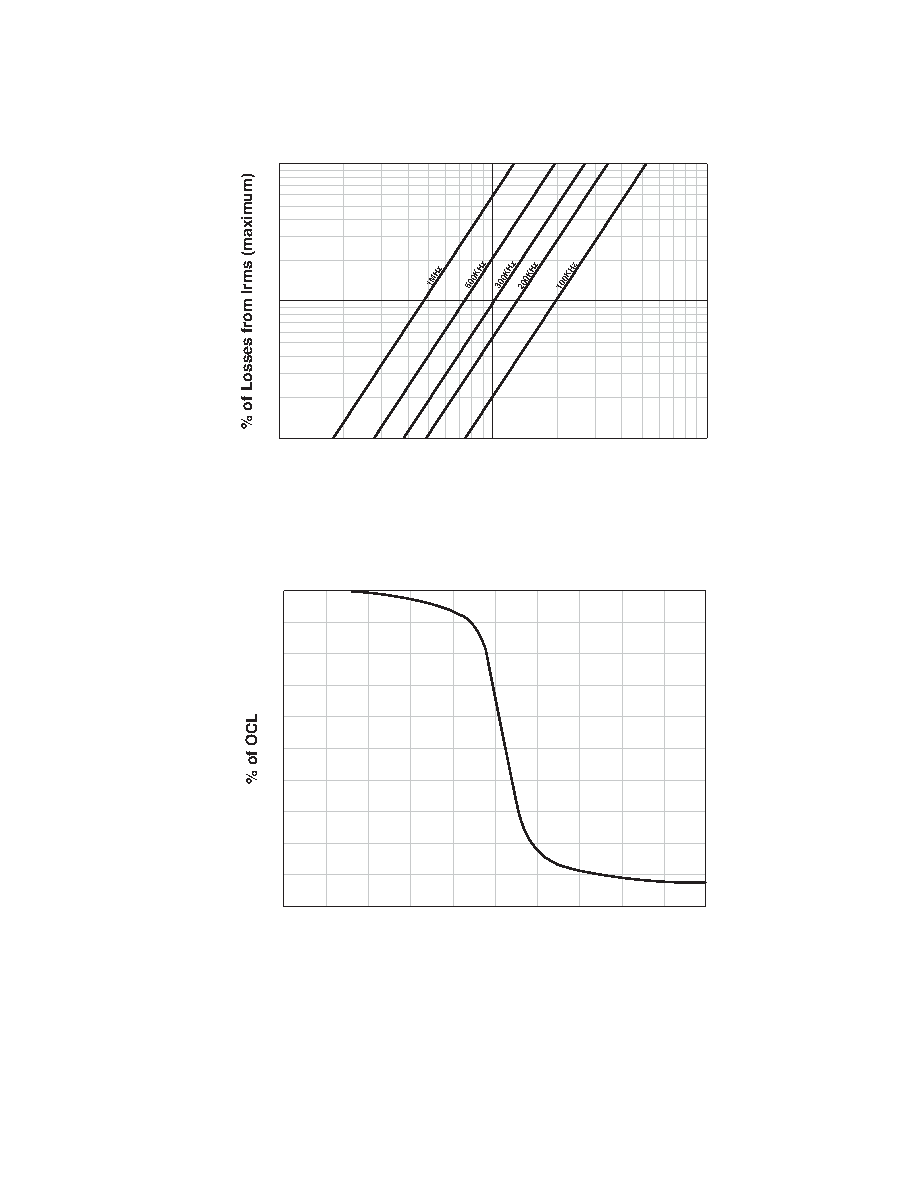

Core loss
IRMS DERATING WITH CORE LOSS
1000
800
600
500
400
300
200
100
80
60
50
40
30
20
10
%of Applied Volt- -Seconds
99
98
97
96
95
94
92
90
80
70
60
50
40
20
0
OCL vs. Isat
020406080
100
120
140
160
180
200
0
10
20
30
40
50
60
70
80
90
100
% of ISAT
Inductance Characteristics



Html Pages

1 2 3 4


数据表 下载

Go To PDF Page
