Technical Data
10551
Effective September 2016
HCM1A1305
Automotive grade high current power inductors
www.eaton.com/electronics

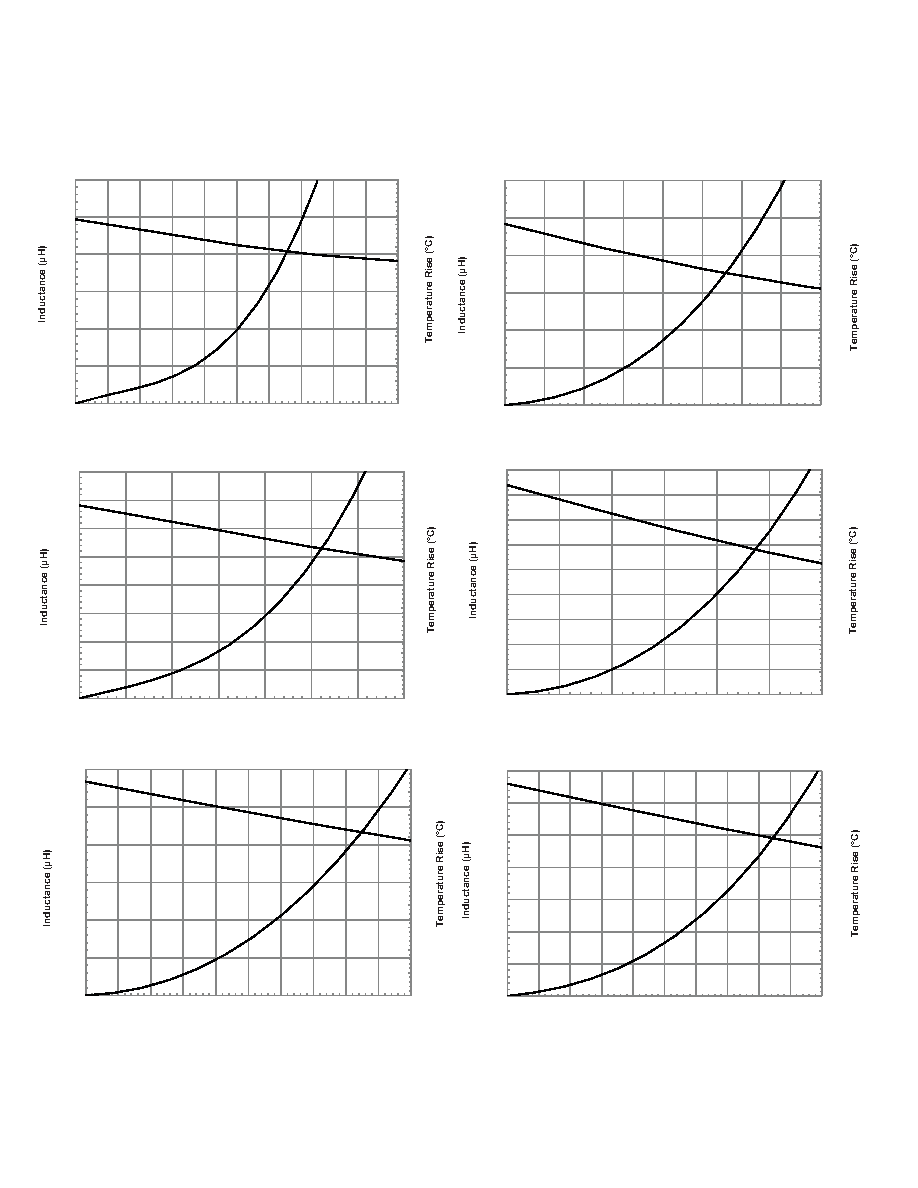

Inductance and temperature rise vs. current
0
10
20
30
40
50
60
70
80
90
100
0.00
0.02
0.04
0.06
0.08
0.10
0.12
0102030405060708090100
Idc (A)
HCM1A1305-R10-R
0
10
20
30
40
50
60
70
80
90
100
0.00
0.05
0.10
0.15
0.20
0.25
0.30
01020304050607080
Idc (A)
HCM1A1305-R22-R
0
10
20
30
40
50
60
70
80
90
100
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
010203040506070
Idc (A)
HCM1A1305-R33-R
0
10
20
30
40
50
60
70
80
90
100
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0102030405060
Idc (A)
HCM1A1305-R47-R
0
10
20
30
40
50
60
70
80
90
100
0.00
0.10
0.20
0.30
0.40
0.50
0.60
05
10
15
20
25
30
35
40
45
50
Idc (A)
HCM1A1305-R56-R
0
10
20
30
40
50
60
70
80
90
100
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
05
10
15
20
25
30
35
40
45
50
Idc (A)
HCM1A1305-R68-R
