Technical Data

10433

Effective September 2015

HCM1307

High current power inductors

www.eaton.com/elx

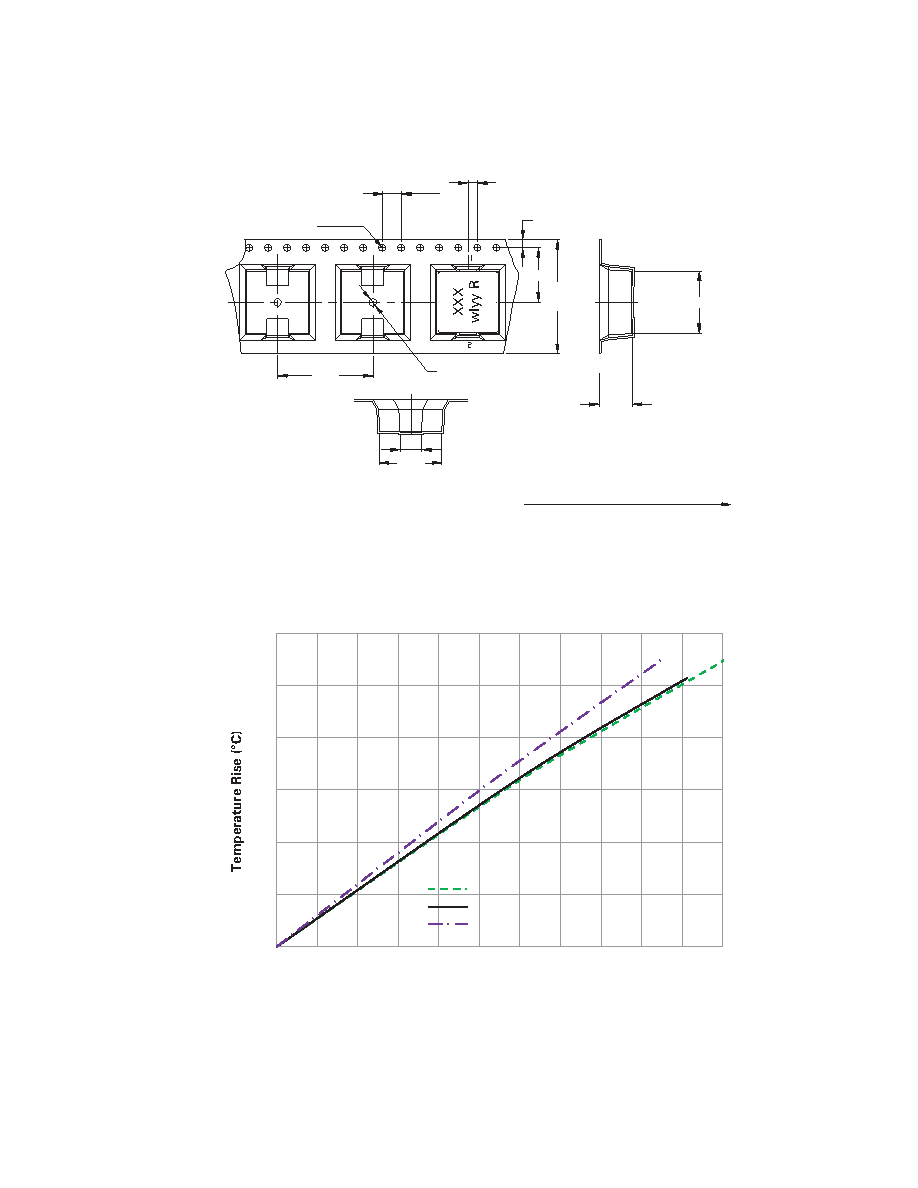

Packaging information (mm)

Supplied in tape and reel packaging, 400 parts per 13” diameter reel

Temperature rise vs. total loss

1.5 dia

4.0

2.0

20.0

1.5 dia

1.75

13.3

7.0

4.5

13.1

11.5

24.0

±0.3

User direction of feed

0

10

20

30

40

50

60

0.0

0.2

0.4

0.6

0.8

1.0

1.2

1.41.6

1.82.0

2.2

Total Loss (W)

HCM1307-R47-R

HCM1307-1R0-R

HCM1307-3R3-R
