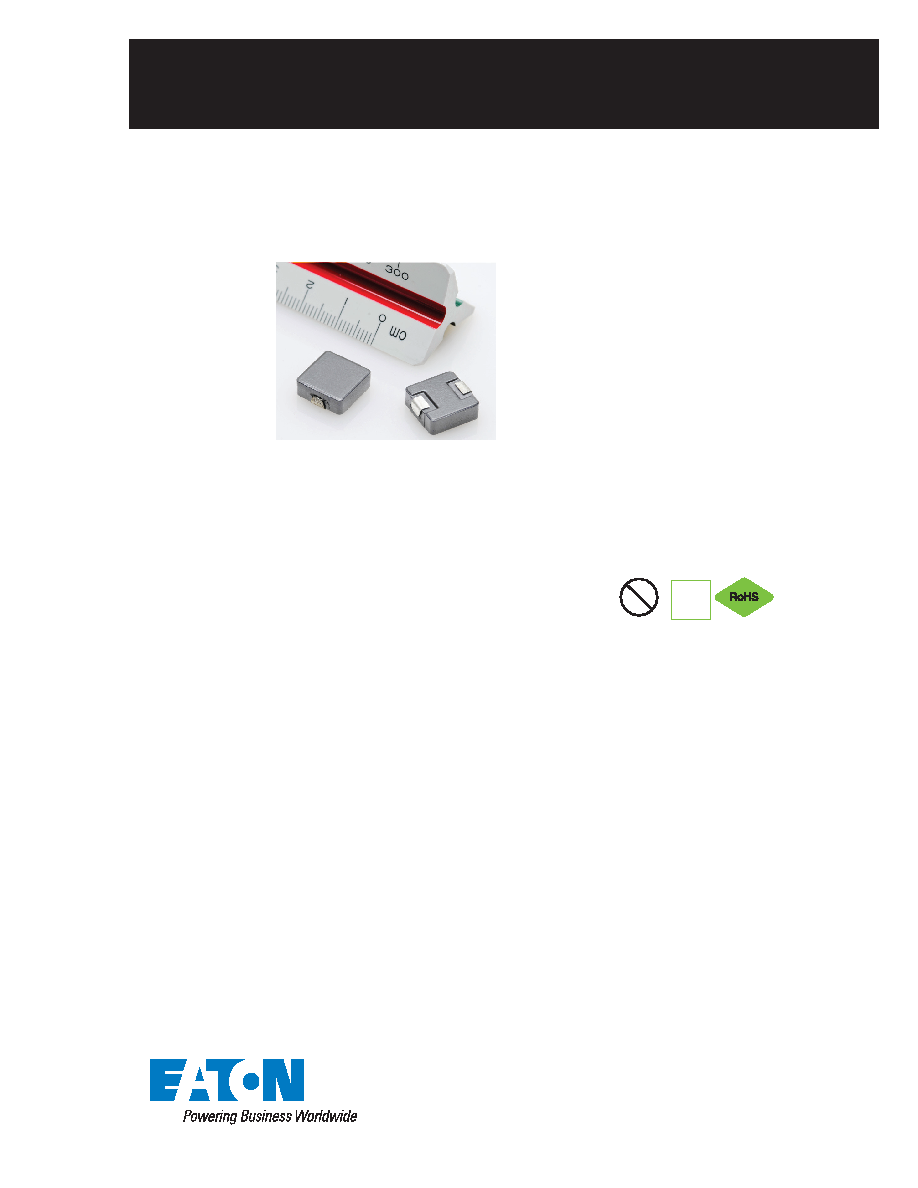

Technical Data 4371

Effective September 2017

Supersedes June 2014

Product features

•

High current carrying capacity

•

Low core losses

•

Magnetically shielded, low EMI

•

Frequency range up to 5 MHz

•

Inductance range from 0.10 µH to 33 µH

•

Current range from 5.2 A to 118 A

•

13.8 mm x 12.5 mm footprint surface mount

package in a 5.0 mm height

•

Iron powder core material

Applications

•

Storage temperature range (component):

-55 °C to +125 °C

•

Operating temperature range: -55 °C to +125 °C

(ambient plus self-temperature rise)

•

Solder reflow temperature:

J-STD-020 (latest revision) compliant

HCM1305

High current power inductors

•

Voltage Regulator Module (VRM)

•

Multi-phase regulators

•

Point-of-load modules

•

Desktop and server VRMs and EVRDs

•

Base station equipment

•

Notebook and laptop regulators

•

Battery power systems

•

Graphics cards

•

Data networking and storage systems

Environmental data

Pb HALOGEN

HF

FREE
