Technical Data 10354

Effective October 2017

HCV1206

High current power inductors

www.eaton.com/electronics

Product Specifications

(μH) ±10%

(A)

(A)

DCR (mΩ)

@ +20 °C

±10%

HCV1206-R42-R

0.42

16

42

3.15

HCV1206-R48-R

0.48

16

37

3.15

HCV1206-R90-R

0.90

14

28

4.6

HCV1206-1R0-R

1.0

14

24.5

4.6

HCV1206-1R5-R

1.5

12

21

6.0

HCV1206-2R0-R

2.0

12

16

6.0

HCV1206-3R0-R

3.0

11

13

7.4

1. Open Circuit Inductance (OCL) Test Parameters: 100 kHz, 0.1 Vrms, 0.0 Adc, +25 °C

PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the

temperature rise. It is recommended that the temperature of the part not exceed +125 °C under worst case operating

conditions verified in the end application.

4. Part Number Definition: HCV1206-xxx-R

HCV1206 = Product code and size

xxx=Inductance value in μH,

-R suffix = RoHS compliant

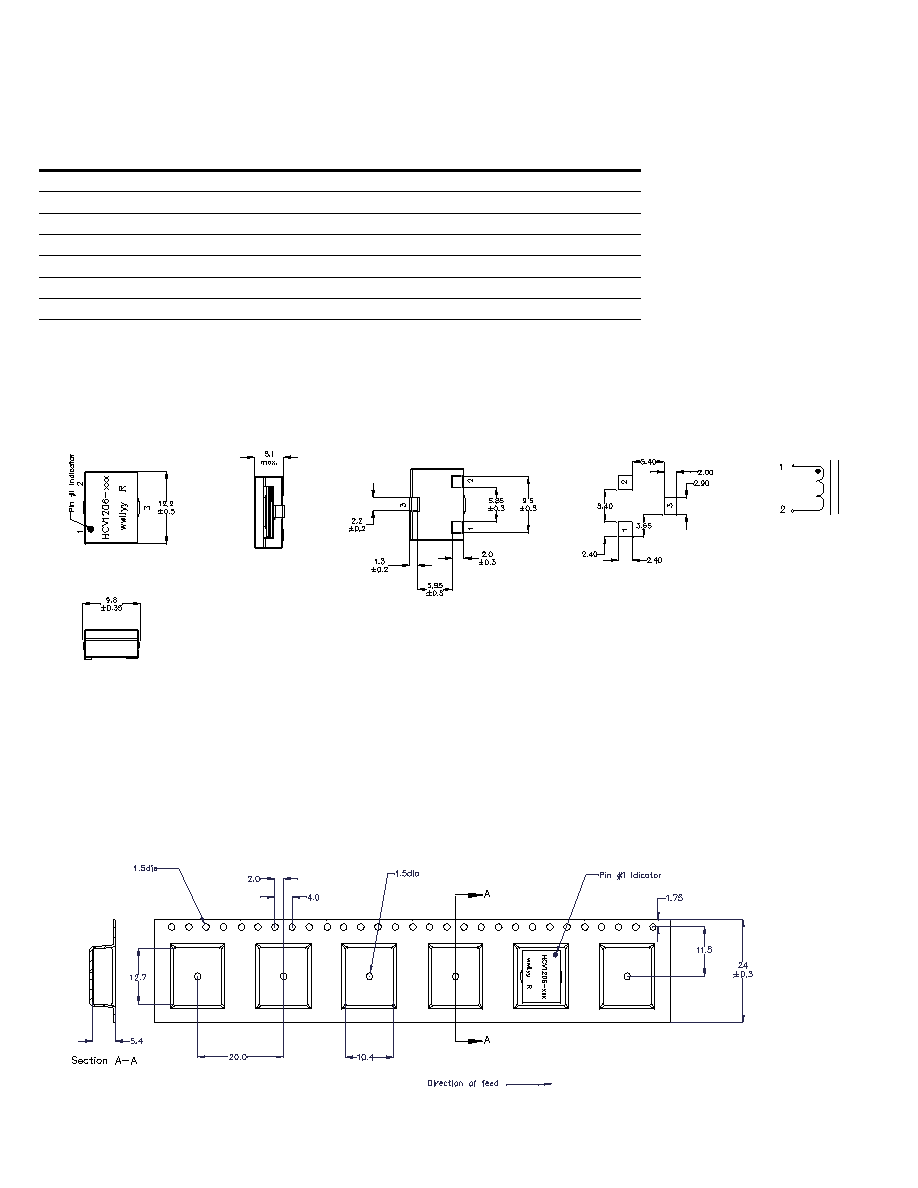

Dimensions- mm

Part marking: HCV1206–xxx, xxx=inductance value in μH, R=decimal point,

wwllyy= date code, R=revision level

Soldering surfaces to be coplanar within 0.1 millimeters

Pin 3 is for mounting stability. No connection.

Do not route traces or vias underneath the inductor.

Recommended Pad Layout

Schematic

Packaging information- mm

Supplied in tape and reel packaging, 550 parts per 13” diameter reel
