MDA

1/4” x 1 1/4” Time-delay ceramic tube fuses

Technical Data

2002

Effective June 2017

38.10

(1.500)

32.82

(1.292)

38.10

(1.500)

6.76

(0.266)

31.75

(1.250)

6.35

(0.250)

DIA. OF LEADS

0–15 AMP:

20–30 AMP:

0.81

(0.032)

1.02

(0.040)

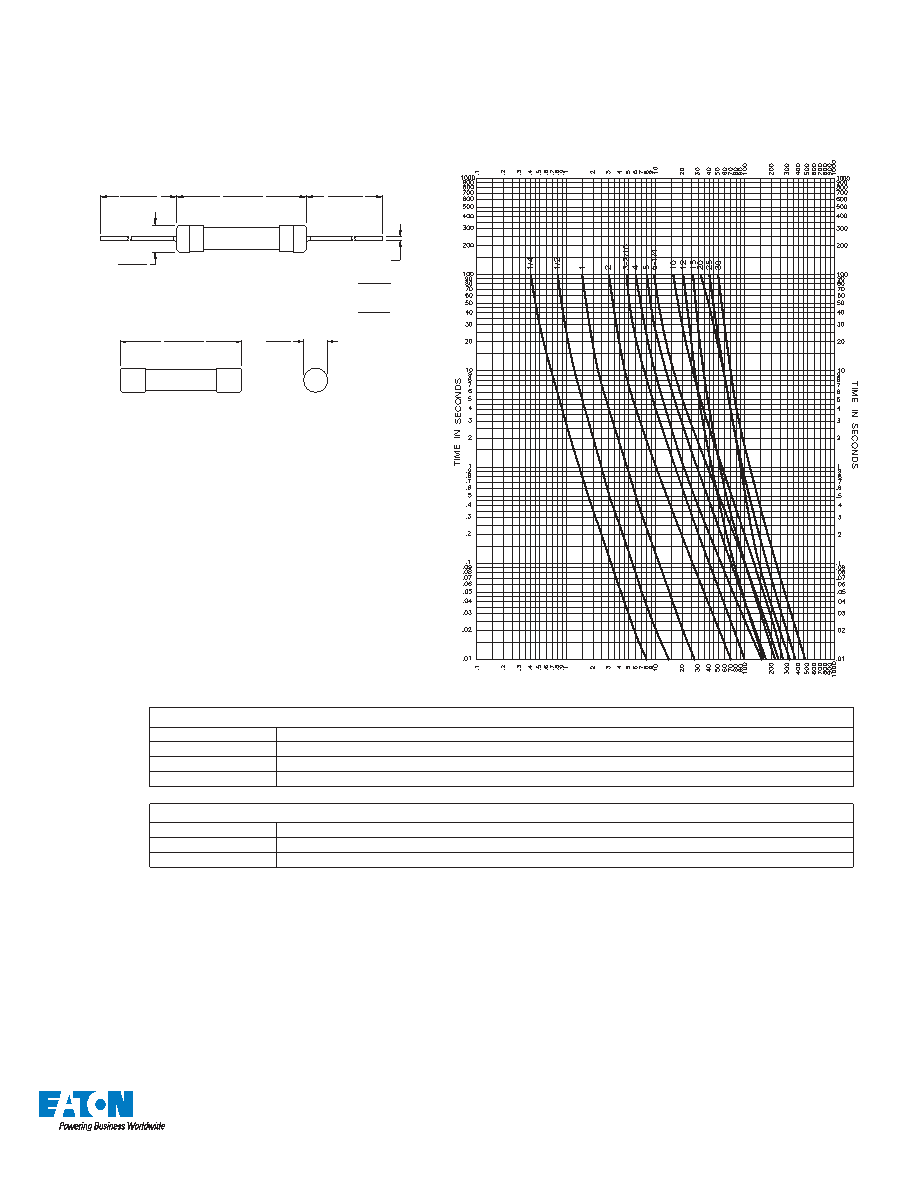

Dimensions - mm (in)

Drawing Not to Scale

Time-Current Curves

CURRENT IN AMPS

CURRENT IN AMPS

Packaging Code

Packaging Code Pre x

Description

BK-

100 fuses packed into a cardboard carton

BK1-

1,000 fuses packed into a cardboard carton

BK8-

8,000 fuses packed into a cardboard carton

Option Code

Option Code

Description

B

Sealed to withstand aqueous cleaning (Board Washable)

V

Axial leads - copper tinned wire with nickel plated brass overcaps
