MPIA4015V2-R56-R 数据表(PDF) 17 Page - Eaton All Rights Reserved.

部件名 MPIA4015V2-R56-R
功能描述  Automotive grade High current, low profile, miniature power inductors
PDF  22 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  EATON [Eaton All Rights Reserved.]
网页  https://www.eaton.com
标志 EATON - Eaton All Rights Reserved.

MPIA4015V2-R56-R 数据表(HTML) 17 Page - Eaton All Rights Reserved.

Back Button MPIA4015V2-R56-R Datasheet HTML 13Page - Eaton All Rights Reserved. MPIA4015V2-R56-R Datasheet HTML 14Page - Eaton All Rights Reserved. MPIA4015V2-R56-R Datasheet HTML 15Page - Eaton All Rights Reserved. MPIA4015V2-R56-R Datasheet HTML 16Page - Eaton All Rights Reserved. MPIA4015V2-R56-R Datasheet HTML 17Page - Eaton All Rights Reserved. MPIA4015V2-R56-R Datasheet HTML 18Page - Eaton All Rights Reserved. MPIA4015V2-R56-R Datasheet HTML 19Page - Eaton All Rights Reserved. MPIA4015V2-R56-R Datasheet HTML 20Page - Eaton All Rights Reserved. MPIA4015V2-R56-R Datasheet HTML 21Page - Eaton All Rights Reserved. Next Button
Zoom Inzoom in Zoom Outzoom out
 17 / 22 page
background image
17
Technical Data
10652
Effective April 2017
MPIA40-V2
Automotive grade
High current, low profile, miniature power inductors
www.eaton.com/electronics

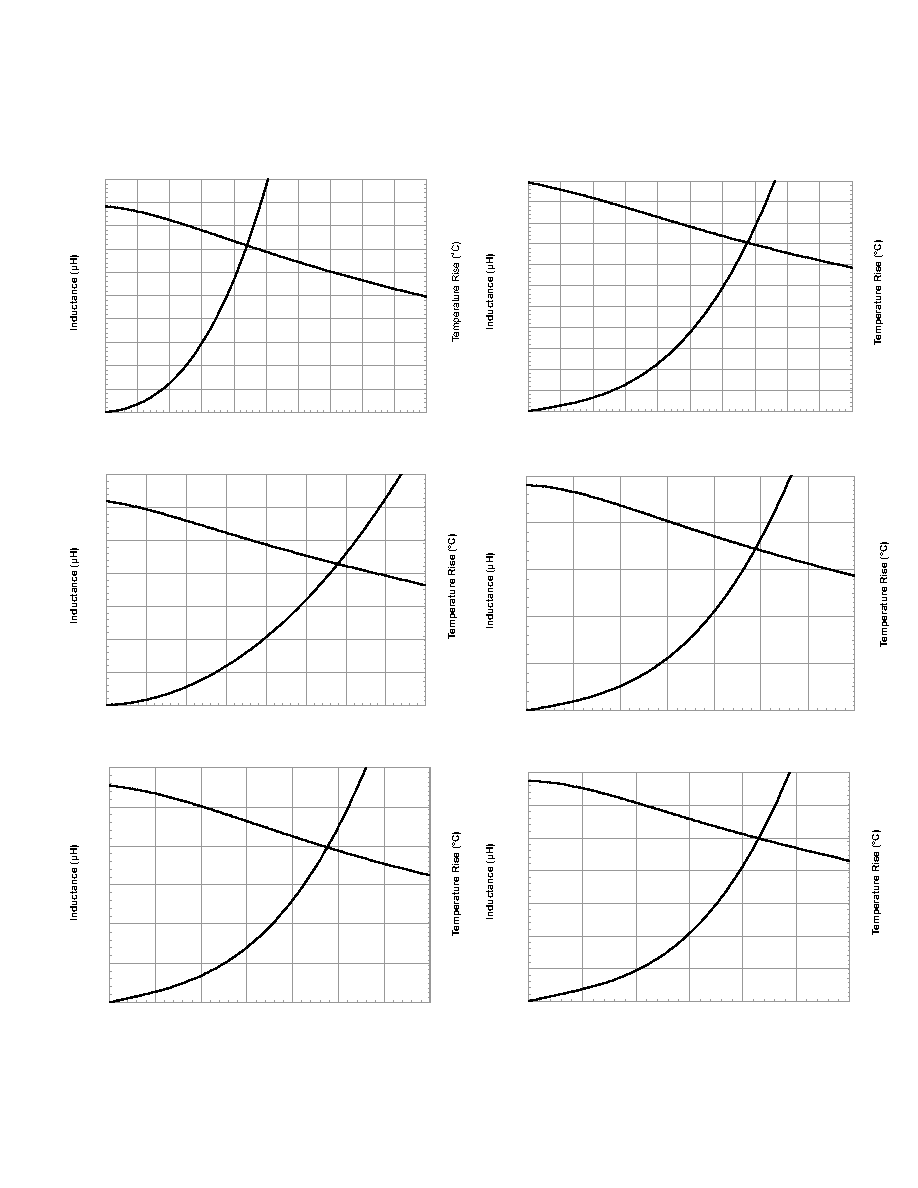

Inductance and temperature rise vs. Current
