1 / 6 page

Technical Data 4313

Effective October 2015

Supersedes March 2007

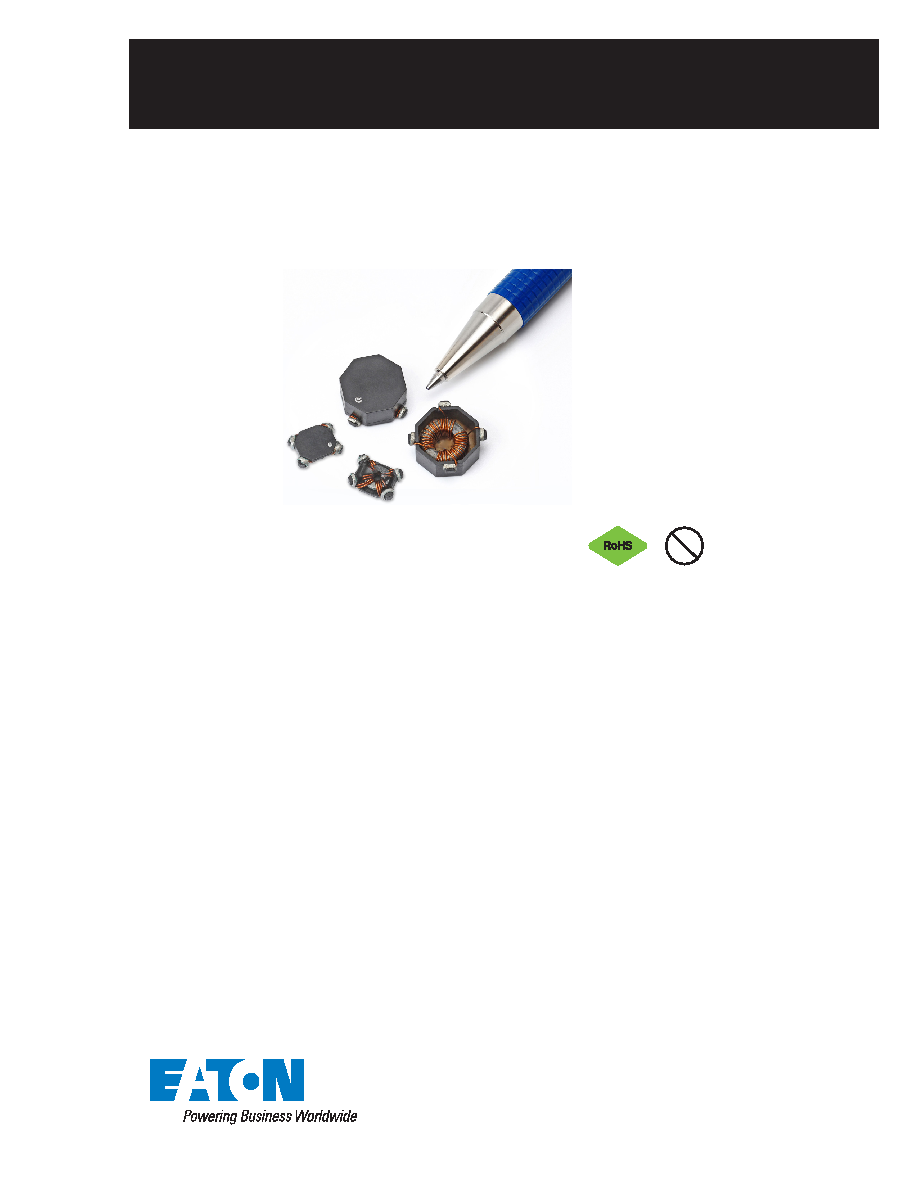

Product description

•

Three sizes of surface mount torroidal common-

mode inductors that provide 300Vdc isolation

•

Inductance range from 5.5uH to 1600uH

•

Current range up to 7.0 Amps

•

Noise attenuation up to 44 dB

•

Frequency range up to 100 MHz

•

Meets UL94V-0 flammability standard

•

Ferrite core material

Applications

•

EMI filters

•

DC-DC brick power supplies

•

Discrete output supplies

•

Discrete and point-of-use power supplies (PUPS)

Environmental data

•

Storage temperature range: -40°C to +160°C

•

Operating ambient temperature range: -40°C to

+160°C (range is application specific)

•

Solder reflow temperature: J-STD-020D compliant

CMS

Common mode inductors, surface mount

Pb
