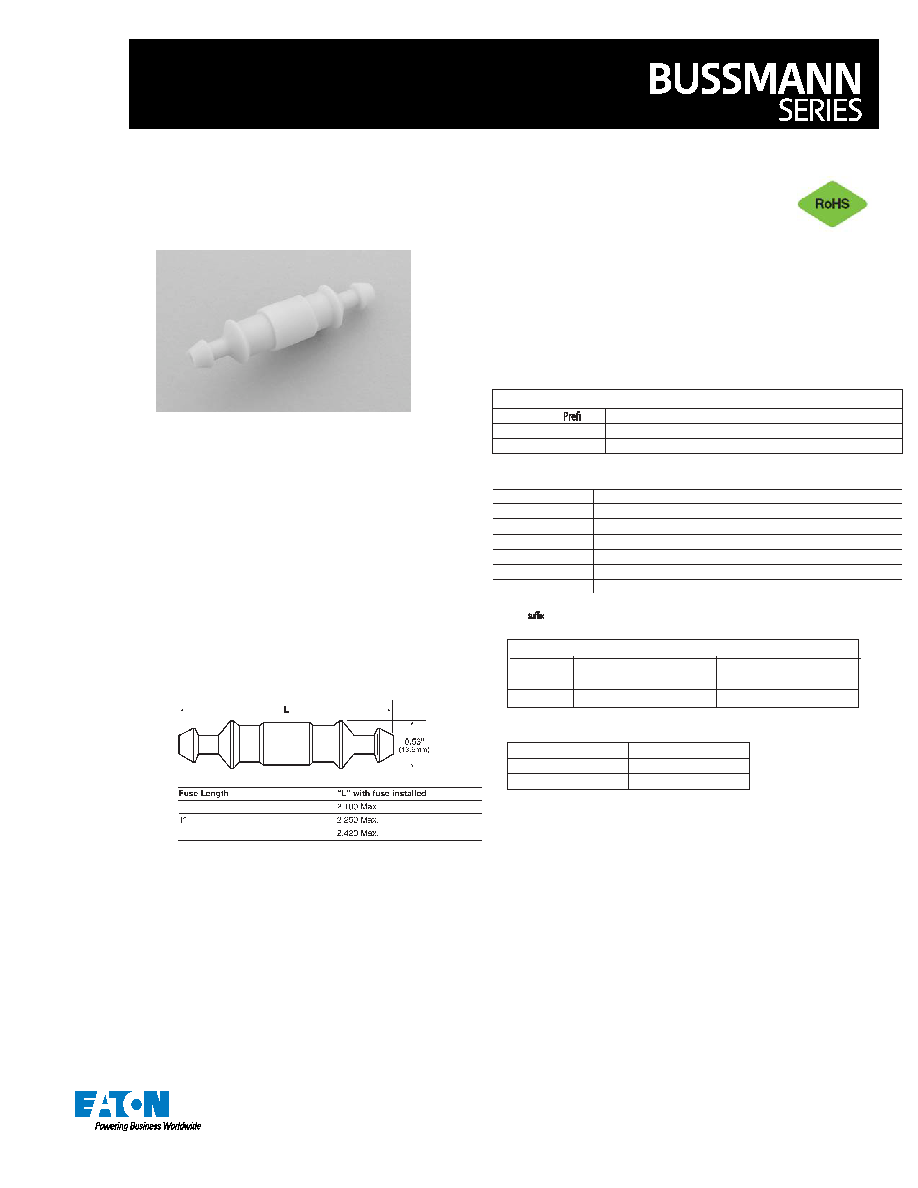

HHB

1/4” x 7/8” to 1/4" x 1 1/4" In-line fuse holder

Product features

•

For 1⁄4" x 7⁄8" to 1⁄4" x 1 1⁄4" fuses

•

Accepts #16 to #12 AWG copper wire

•

Simple crimp assembly

•

“Snap-Lock” feature provides strong positive

union

•

High visibility yellow color

•

Recommended crimp tools:

o

Thomas & Betts – ERG4002

o

Channellock No. 909

o

Thomas & Betts WT-112M

•

UL flammability rating 94 V2

Ordering

• Specify packaging code

• Insert packaging code prefix before part number

E.g. BK/HHB-R

• Specify option codes if desired

• Drop “-R” suffix when ordering. E.g. BK/HHB-Y408

Specifications

Part

Number

Volts

Amps

HHB-R*

32

30 max

*RoHS compliant construction.

7

Dimensions - in (mm)

Drawing Not to Scale

Component

Material

Body

Nylon

Crimp

Copper Tin-Plated

Packaging Code

Packaging Code

x

Description

Blank

10 fuse holders packed into a carton

BK

1,000 fuse holders packed into a cardboard shelf package

Option Code

Option Code

Description

#14AWG insulated wire with 8 inch yellow leads

#14AWG insulated wire with 8 inch red leads

#14AWG insulated wire with 8 inch black leads

#14AWG insulated wire with 19 inch yellow leads

#14AWG insulated wire with 19 inch red leads

#14AWG insulated wire with 19 inch black leads

**Not available in RoHS compliant construction.

† Drop “-R”

when ordering these options.
