HKP

1/4” x 1 1/4” Panel-mount fuse holders

Technical Data 2106

Effective June 2017

HKP, HKP-L, and HKP-W

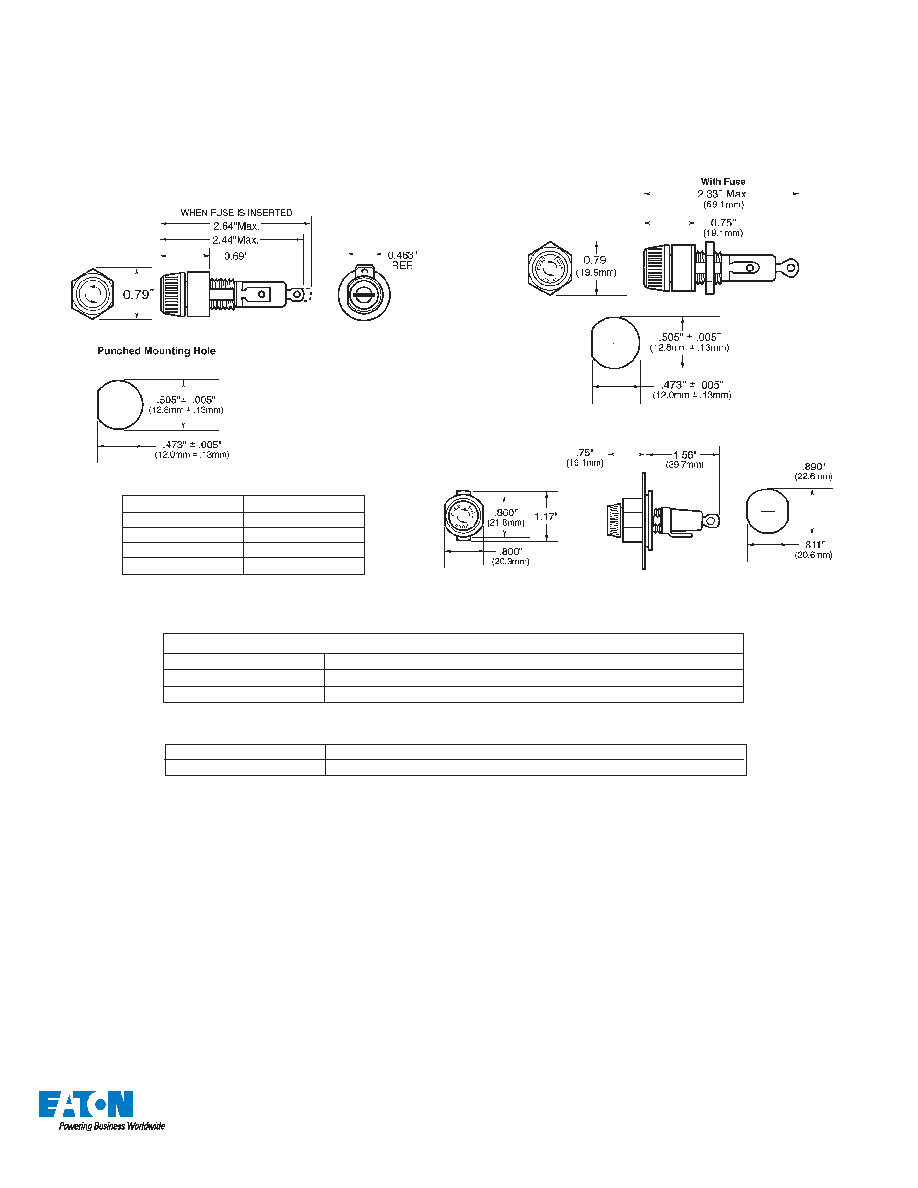

Dimensions - in (mm)

Drawing Not to Scale

HKP-BBHH, HKP-HH, HKP-LW-HH

HKP-OO

Component

Material

Terminal

Tin-Plated Brass

Body

Thermoset

Cap

Thermoset

Nut

Thermoplastic

Packaging

Packaging Code Prefix

Description

Blank

10 fuseholders packed into a carton

BK

100 fuseholder components packed separately into a carton

Option Code

Option Code Suffix

Description

-R

RoHS compliant version
