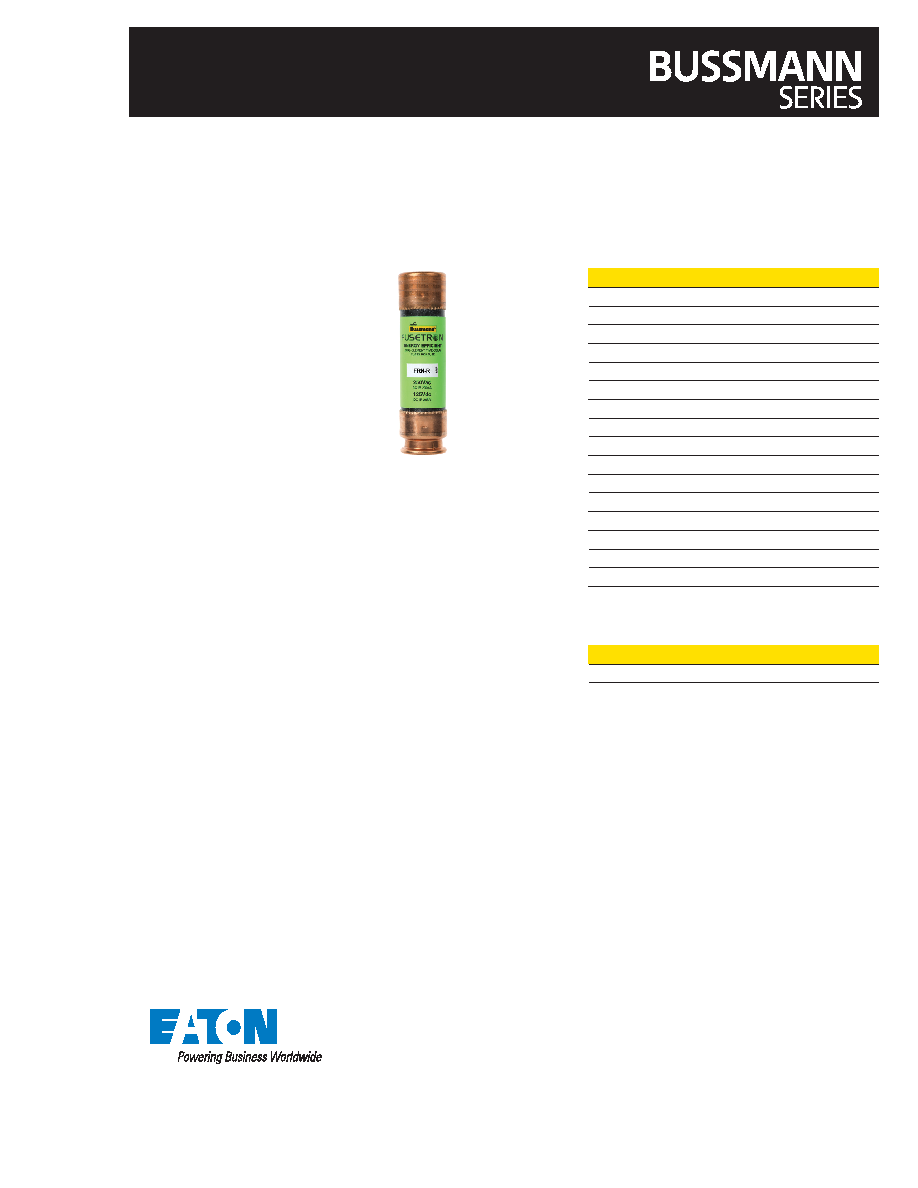

FRN-R datasheet(1/6 Pages) EATON

部件名	FRN-R

功能描述	Fusetron??FRN-R Class RK5 250Vac/125Vdc 1??0-60A, dual element, time-delay fuses

PDF	6 Pages

Scroll/Zoom	100%

制造商	EATON [Eaton All Rights Reserved.]

网页	https://www.eaton.com

标志

1 / 6 page

Technical Data1019

Effective February 2016

Supersedes July 2013

Fusetron™ FRN-R Class RK5 250Vac/125Vdc

1⁄10-60A, dual element, time-delay fuses

Catalog symbols:

• FRN-R-_ (non-indicating)

• FRN-R-_ID (indicating)

Description:

Eaton Bussmann® series advanced protection,

energy efficient FRN-R Class RK5 dual element,

current-limiting, time-delay fuses with optional

open fuse indication on select ratings. Time-delay

– 10 seconds (minimum) at 500% of rated current

(8 seconds for 1⁄10-30A sizes).

Specifications:

Ratings

• Volts

• 250Vac

• 125Vdc

• Amps 1⁄10-60A

• Interrupting rating

• 200kA Vac RMS Sym.

• 20kA Vdc

Agency information

• UL Listed, Std. 248-12, Class RK-5, Guide

JDDZ, File E4273

• CSA Certified, C22.2 No. 248.12, Class 1422-

02, File 53787

• CE

Catalog numbers (amps) — non-indictaing fuses

FRN-R-1⁄10

FRN-R-1-8⁄10

FRN-R-8*

FRN-R-1⁄8

FRN-R-2

FRN-R-9*

FRN-R-15⁄100

FRN-R-2-1⁄4

FRN-R-10*

FRN-R-2⁄10

FRN-R-2-1⁄2

FRN-R-12*

FRN-R-1⁄4

FRN-R-2-8⁄10

FRN-R-15*

FRN-R-3⁄10

FRN-R-3

FRN-R-17-1⁄2*

FRN-R-4⁄10

FRN-R-3-2⁄10

FRN-R-20*

FRN-R-1⁄2

FRN-R-3-1⁄2

FRN-R-25*

FRN-R-6⁄10

FRN-R-4

FRN-R-30*

FRN-R-8⁄10

FRN-R-4-1⁄2

FRN-R-35*

FRN-R-1

FRN-R-5

FRN-R-40*

FRN-R-1-1⁄8

FRN-R-5-6⁄10

FRN-R-45*

FRN-R-1-1⁄4

FRN-R-6

FRN-R-50*

FRN-R-1-4⁄10

FRN-R-6-1⁄4

FRN-R-60*

FRN-R-1-1⁄2

FRN-R-7

FRN-R-1-6⁄10

FRN-R-7-1⁄2

* Open fuse indication available by inserting the sufix “ID.”

E.g., FRN-R-15ID.

Carton Quantity:

Amp rating

Carton qty.

1⁄10 – 60

10

Features:

• Provides motor overload, ground fault and

short-circuit protection

• Helps protect motors against burnout from

overloads

• Helps protect motors against burnout from

single-phasing on three-phase systems

• Simplifies and improves blackout prevention

(selective coordination)

• Dual-element fuses can be applied in circuits

subject to temporary motor overloads and surge

currents to provide both high performance

short-circuit and overload protection

• The overload element provides protection

against low level overcurrent of overloads

and will hold an overload which is five times

greater than the ampere rating of the fuse for a

minimum of ten seconds
