Technical Data 1017

Effective August 2018

Fusetron™ 600 V Class RK5 FRS-R — 600 Vac/300 Vdc,

1/10-60 A, dual element, time-delay fuses

Eaton.com/bussmannseries

Recommended fuse blocks

Amps

Catalog no.

1-Pole

2-Pole

3-Pole

30

RM60030-1_

RM60030-2_

RM60030-3_

60

RM60060-1_

RM60060-2_

RM60060-3_

For additional information on the 600 volt fuse blocks, see data

sheet no. 10489.

Fuse reducers for Class R fuses

Equipment fuse clips

Desired fuse (case)

size

Catalog no. (pairs)

600 V

60 A

30 A

NO.663-R

100 A

30 A

NO.216-R

60 A

NO.616-R

200 A

60 A

NO.626-R

For additional information on Class R fuse reducers, see data sheet

no. 1118.

Dimensions — in

0.81" (±0.008)

5"

(±0.031)

1/10 to 30A

5.5"

(±0.031)

35 to 60A

1.06" (±0.008)

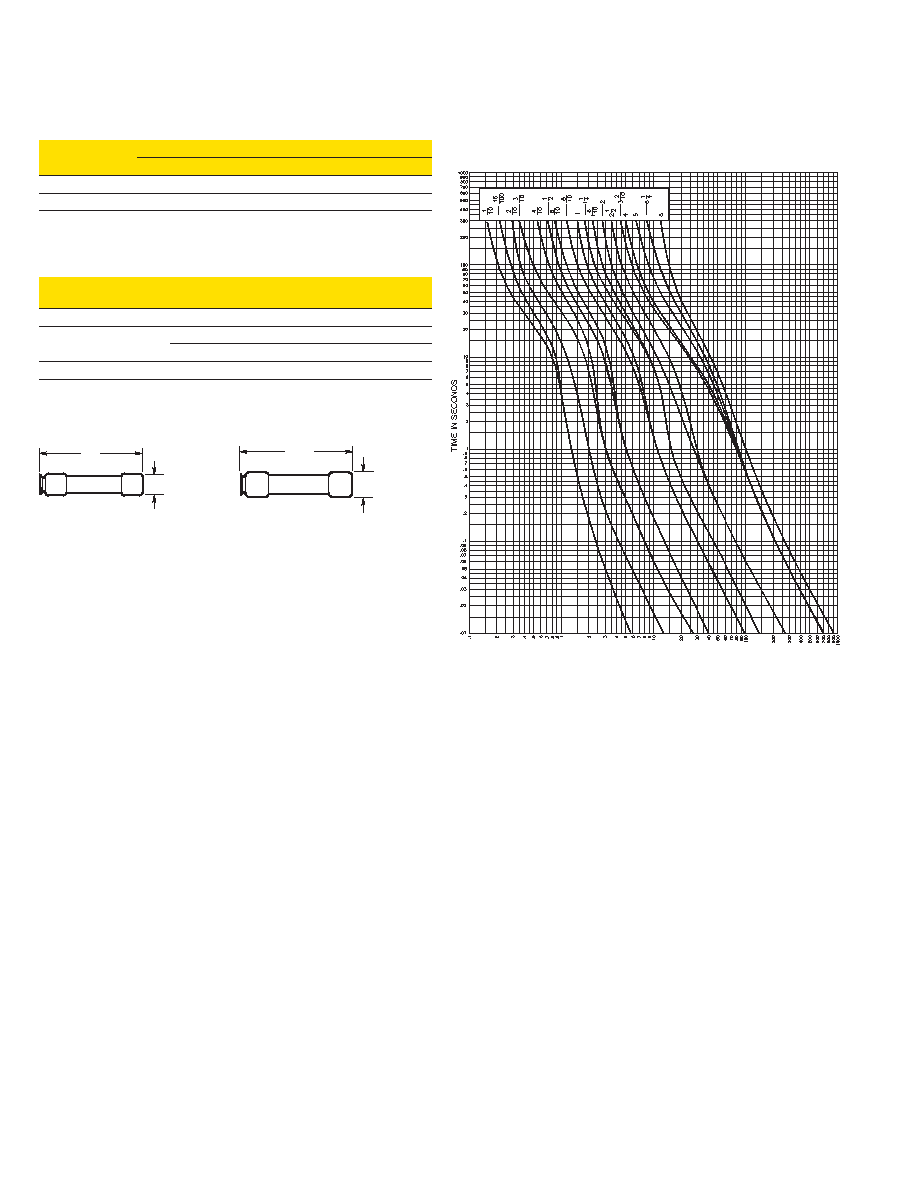

Time-current curves - average melt

1/10 to 8 amps

AMP RATING

CURRENT IN AMPS
