VCM Series Ceramic Multilayer Capacitors (Radial & Axial)

Vatronics makes Radial leads MLCC and axial leads MLCC, Capacitance: from 0.5PF

to 10uF,Working voltage: from 25V to 100V,Dielectric types: NPO (COG), X7R,

Y5V,Z5U, Capacitance tolerance: +/-0.1PF to +80/-20%,Package styles: tape and reel,

Ammo, Bulk. Radial leads MLCC have various lead spaces:

2.54/3.5/4.57/5.08/7.5mm

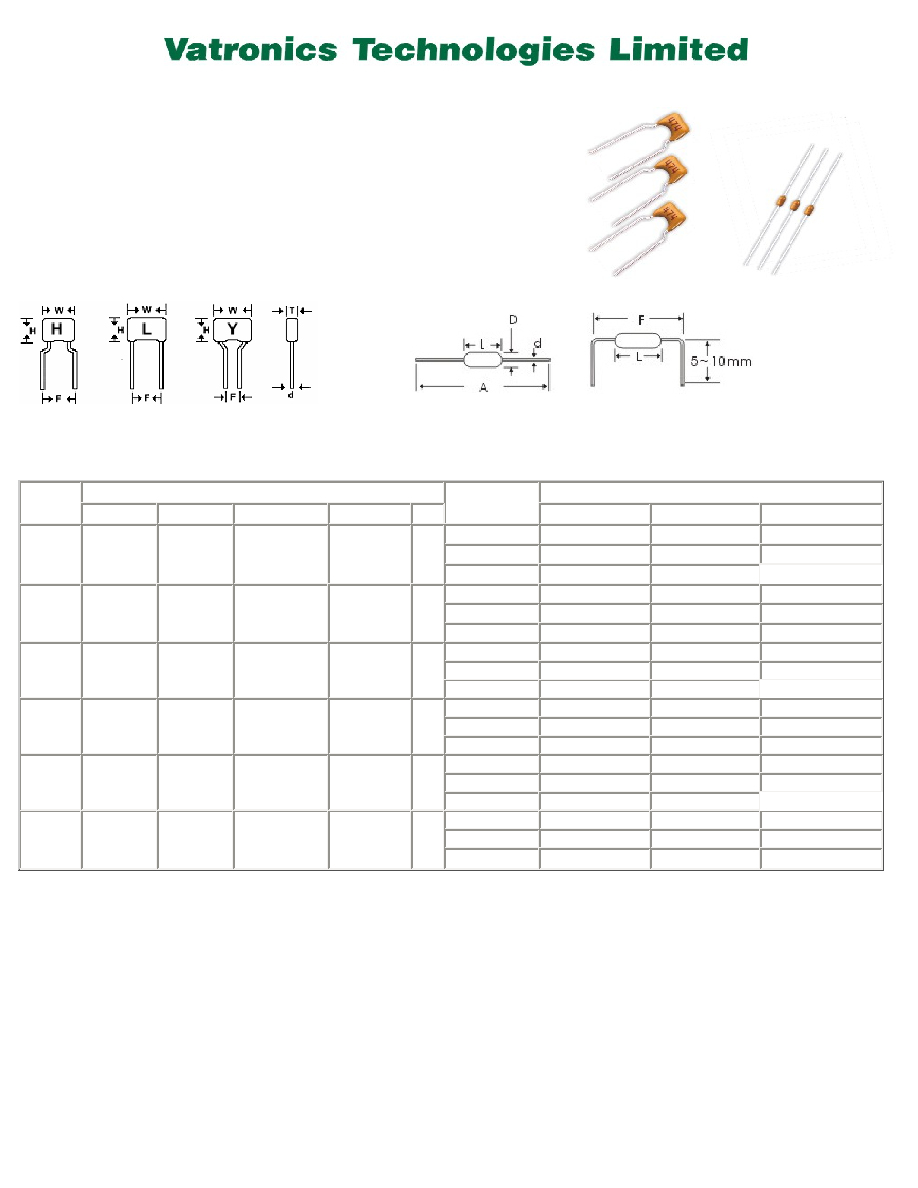

Drawing of output

Vatronics Radial Type Size,Capacitance and Voltage

Size

Dimensions(mm)

Voltage

Capacitance(pF)

F

Wmax

Hmax

Tmax

D

COG(NPO)

X7R

Y5V(Z5U)

0805

5.0

2.5

4.2

3.8

3.8

0.5

25V

0R5~332

221~105

103~105

50V

0R5~222

221~105

103~684

100V

0R5~102

221~683

1206

5.0

2.5

5.0

4.5

3.8

0.5

25V

0R5~682

102~105

103~105

50V

0R5~472

102~105

103~105

100V

0R5~392

102~683

•

1210

5.0

7.6

5.5

3.8

0.5

25V

561~103

102~334

104~105

50V

561~682

102~205

104~105

100V

561~472

102~104

1812

5.0

8.5

8.5

3.8

0.5

25V

102~153

103~474

154~335

50V

102~103

103~334

154~225

100V

102~682

103~224

•

2225

7.5

10.5

9.5

4.2

0.5

25V

102~223

103~105

684~475

50V

102~223

103~105

684~335

100V

102~103

103~474

3035

7.5

12.5

10.5

4.2

0.5

25V

102~104

103~225

105~106

50V

102~473

103~225

105~685

100V

102~333

103~105

•
