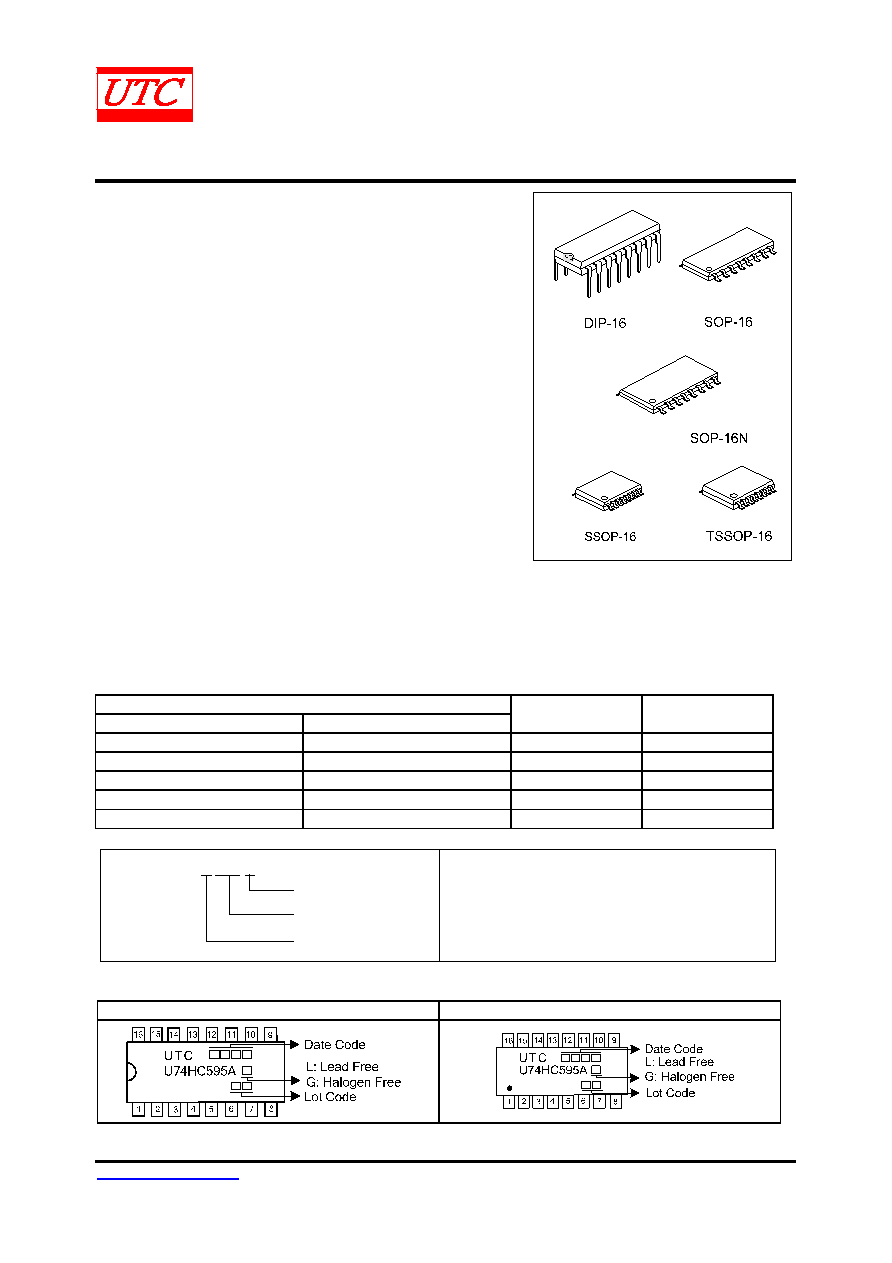

UNISONIC TECHNOLOGIES CO., LTD

U74HC595A

CMOS IC

www.unisonic.com.tw

1 of 8

Copyright © 2016 Unisonic Technologies Co., Ltd

QW-R502-354.H

8-BIT SERIAL-IN SHIFT

REGISTER WITH LATCHED

3-STATE PARALLEL OUTPUTS，

PROVIDING SERIAL OUTPUT



DESCRIPTION

The

UTC

74HC595A

contains

an

8-bit

register

with

asynchronous reset input and an 8-bit latch with output. The Serial

Data Input (SER) will shift into the internal shift register during every

LOW-to-HIGH transition on the Shift Clock. The latch will latch the

8-bit data from the shift register during the LOW-to-HIGH transition

on the Latch Clock. The shift register also provides a serial output.



FEATURES

* Operation Voltage Range: 2~6V

* High Noise Immunity

* Output Compatibility with CMOS and TTL

* Specified from -40 ~ +125°C



ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

U74HC595AL-D16-T

U74HC595AG-D16-T

DIP-16

Tube

U74HC595AL-S16-R

U74HC595AG-S16-R

SOP-16

Tape Reel

U74HC595AL-S16N-R

U74HC595AG-S16N-R

SOP-16N

Tape Reel

U74HC595AL-R16-R

U74HC595AG-R16-R

SSOP-16

Tape Reel

U74HC595AL-P16-R

U74HC595AG-P16-R

TSSOP-16

Tape Reel

(1) T: Tube, R: Tape Reel

(2) D16: DIP-16, S16: SOP-16, S16N: SOP-16N

R16: SSOP-16, P16: TSSOP-16

(3) G: Halogen Free and Lead Free, L: Lead Free

U74HC595AG-D16-T

(1)Packing Type

(2)Package Type

(3)Green Package



MARKING

DIP-16

SOP-16 / SOP-16N / SSOP-16 / TSSOP-16
