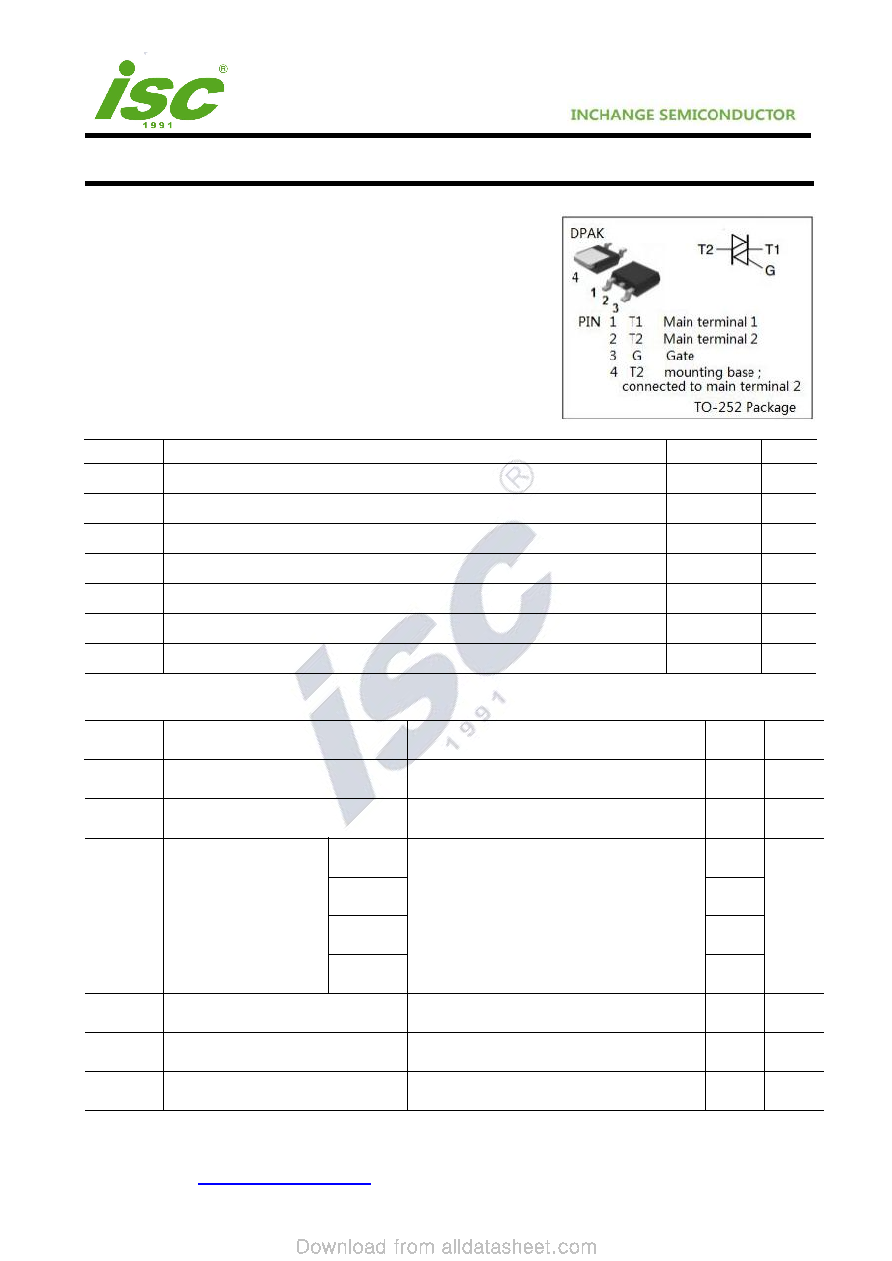

isc website：www.iscsemi.com

isc & iscsemi is registered trademark

isc Triacs

ISC4B96D

FEATURES

·

With TO-252 insulated package

·

Suitable for general purpose AC switching. Which can be

used as an ON/OFF function in applications such as static relays,

heating regulation,induction motor starting circuits. Or for phase

control operation in light dimmers, motor speed controllers etc.

·

Minimum Lot-to-Lot variations for robust device performance and

reliable operation

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

MIN

UNIT

VDRM

Repetitive peak off-state voltage

600

V

VRRM

Repetitive peak off-state voltage

600

V

IT(RMS)

RMS on-state current (full sine wave)

8

A

ITSM

Non-repetitive peak on-state current @50Hz

80

A

Tj

Operating junction temperature

125

℃

Tstg

Storage temperature

-40~150

℃

PG(AV)

Average gate power dissipation

1

W

ELECTRICAL CHARACTERISTICS (TC=25℃ unless otherwise specified)

SYMBOL

PARAMETER

CONDITIONS

MAX

UNIT

IRRM

Repetitive peak reverse current

VR=VRRM,

VR=VRRM, Tj=125℃

0.01

0.5

mA

IDRM

Repetitive peak off-state current

VD=VDRM,

VD=VDRM, Tj=125℃

0.01

0.5

mA

IGT

Gate trigger current

Ⅰ

VD=12V; RL= 33Ω

35

mA

Ⅱ

35

Ⅲ

35

Ⅳ

50

IH

Holding current

IGT= 0.5A, Gate Open

35

mA

VGT

Gate trigger voltage all quadrant VD=12V; RL= 33Ω

1.3

V

VTM

On-state voltage

IT= 8A; tp= 380μs

1.6

V
