PSB12 SERIES

• HighCurrentInductorincompact,lowprofilepackage

• Flat wire coil minimizes losses at high frequency

• Magnetically shielded

• Size: 13.5mm length x 12.8mm width

• Operating Temperature -55ºC to +125ºC

• RoHS Compliant Product

• Custom Design Available

ELECTRICAL PARAMETERS @ 25°C

Part Number

INDUCTANCE

(μH)

±20%

Irated

(A)

MAX

Isat

(A)

MAX

DCR

(mΩ)

MAX

Dimension H

(mm)

PSB1235-R20M

0.20

27.0

40.0

1.5

3.5

PSB1235-R60M

0.60

23.0

30.0

3.5

3.5

PSB1235-1R2M

1.2

19.0

21.0

3.5

3.5

PSB1250-6R8M

6.8

8.0

9.0

15.0

5.0

PSB1265-R90M

0.90

22.0

28.0

1.5

6.5

PSB1265-1R5M

1.5

20.0

26.0

2.0

6.5

PSB1265-2R2M

2.2

17.0

25.0

3.0

6.5

PSB1265-3R3M

3.3

15.0

15.0

4.5

6.5

PSB1265-4R7M

4.7

14.0

10.0

7.0

6.5

PSB1265-6R8M

6.8

12.0

8.0

10.0

6.5

PSB1265-100M

10.0

9.0

7.0

15.0

6.5

PSB1275-R82M

8.2

11.0

10.0

12.0

7.5

Note:

1.

Inductance measured at 100KHz, 1Vrms

2.

Temperature Rise 40°C TYP at DC Current Irated

3.

Inductance Drop 20% TYP at DC Current Isat

Productperformanceislimitedtospecifiedparameters.Dataissubjecttochangewithoutpriornotice.

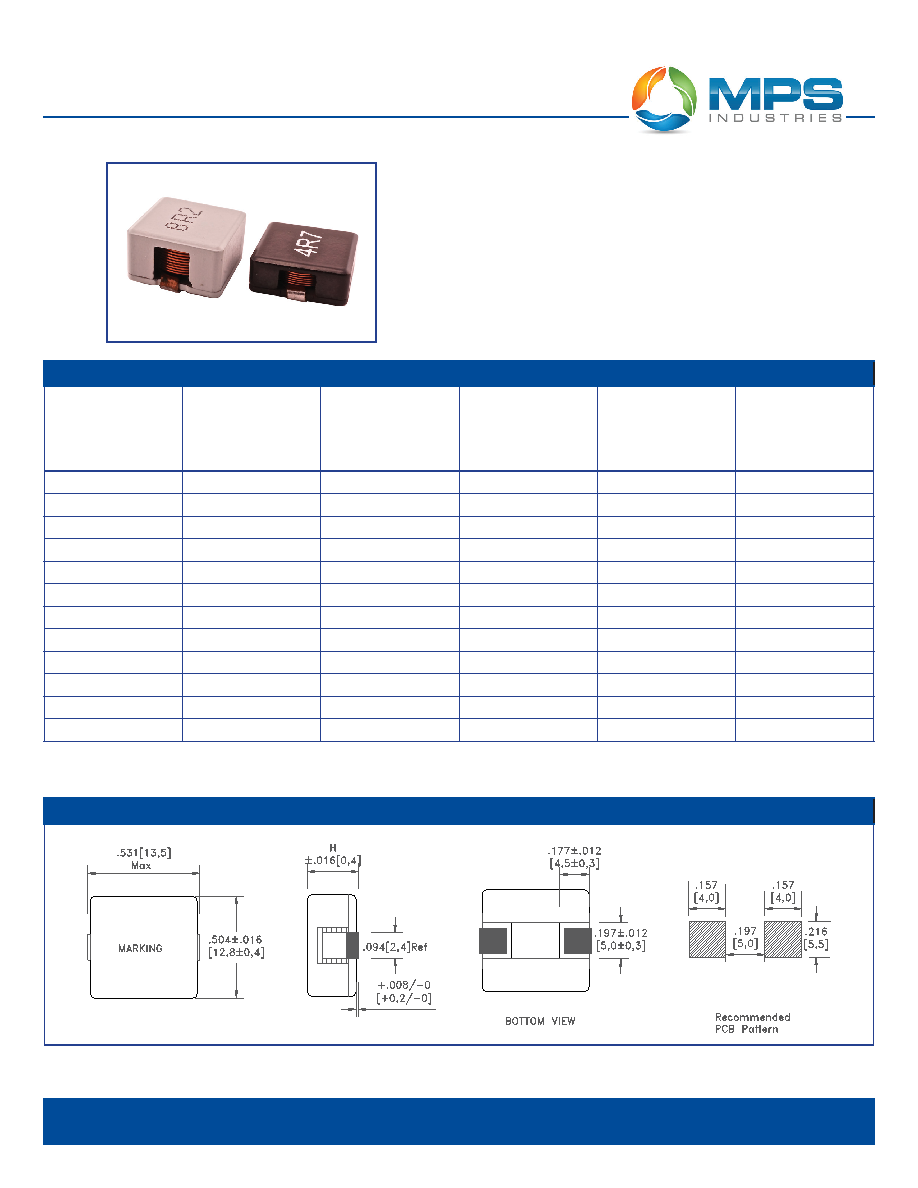

SMT FLAT WIRE HIGH

CURRENT INDUCTOR

Dimensions

Unlessotherwisespecified,alltolerancesare:

inch: .XX : ±0.015

.XXX : ±0.004

mm: X,X : ±0,38

X,XX : ±0,10

DIMENSIONS (inch / [mm])
