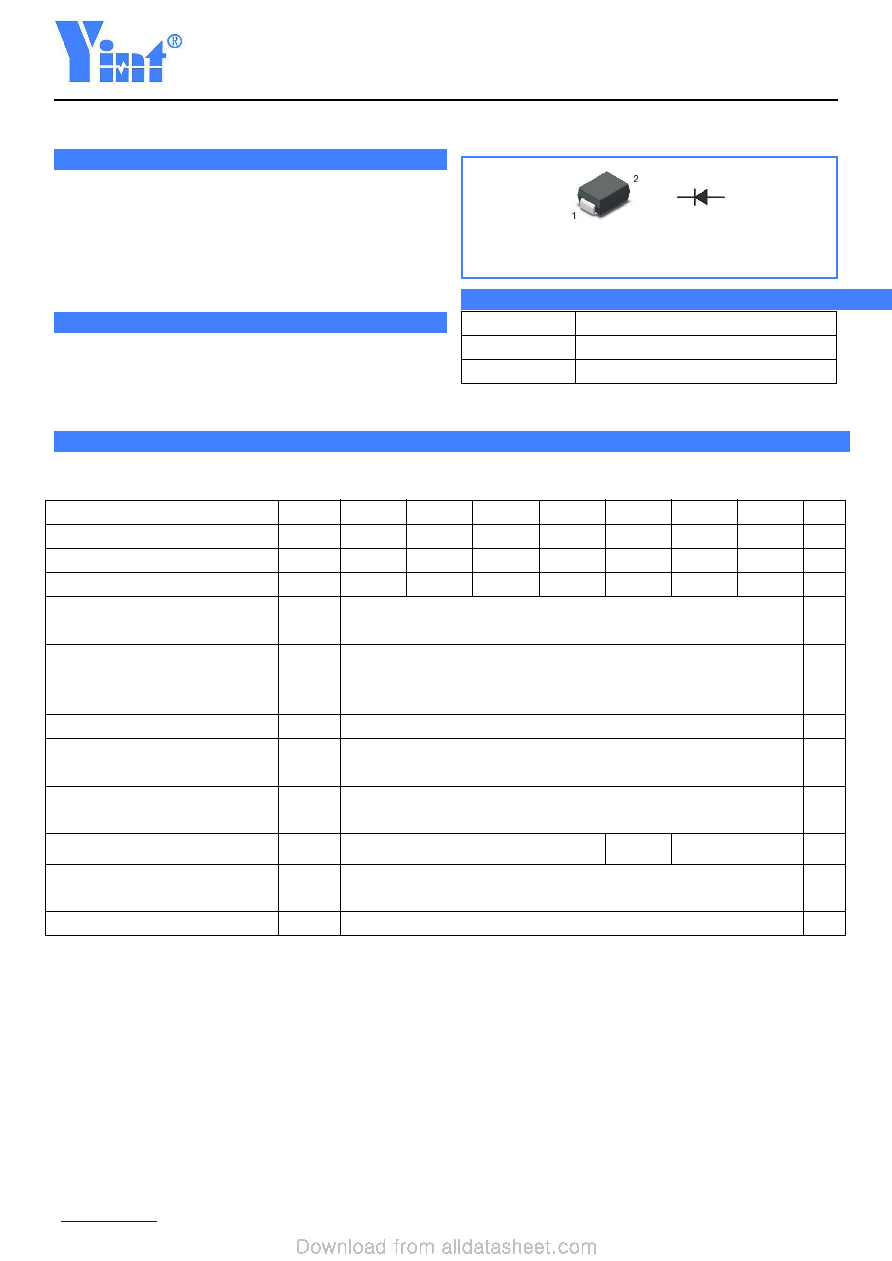

1 / 3 page

Surface Mount Fast Recovery Rectifiers

Trustworthy electronic circuit protection expert

RS3AB THRU RS3

www.yint.com.cn

1

Rev:19.3

RS3AB THRU RS3

Features

●

For surface mounted applications

●

Low profile package

●

Glass Passivated Chip Junction

●

Easy to pick and place

●

Fast reverse recovery time

●

Lead free in comply with EU RoHS 2011/65/EU directives

Mechanical Data

●

Case: SMB

●

Terminals: Solderable per MIL-STD-750, Method 2026

●

Approx. Weight: 0.098g / 0.003oz

Simplified outline SMB and symbol

Pinning

DESCRIPTION

1

Cathode

2

Anode

Absolute Maximum Ratings And Characteristics

Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.

Parameter

Symbols

RS3AB

RS3BB

RS3DB

RS3GB

RS3JB

RS3KB

RS3MB

Units

Maximum Repetitive Peak Reverse Voltage

VRRM

50

100

200

400

600

800

1000

V

Maximum RMS voltage

VRMS

35

70

140

280

420

560

700

V

Maximum DC Blocking Voltage

VDC

50

100

200

400

600

800

1000

V

Maximum Average Forward Rectified

Current at Tc = 125 °C

IF(AV)

3

A

Peak Forward Surge Current 8.3 ms Single

Half Sine Wave Superimposed on Rated

Load

IFSM

90

A

Maximum Forward Voltage at 1 A

VF

1.3

V

Maximum DC Reverse Current Ta = 25 °C

at Rated DC Blocking Voltage Ta =125 °C

IR

5

100

μ

A

Typical Junction Capacitance

at VR=4V f=1M

Cj

40

pF

Maximum Reverse Recovery Time(1)

trr

150

250

500

ns

Typical Thermal Resistance (2)

RθJA

RθJC

48

16

℃

/W

Operating and Storage Temperature Range

Tj, Tstg

-55 ~ +150

℃

（

1）Measured with IF = 0.5 A, IR = 1 A, Irr = 0.25 A

（

2）.P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas.
