Speaker

AS01308MR-2-R

J.D.

E.P.

B.R.

9/6/2007

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/30/2006

Date

5/31/2006

Date

5/31/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS01308MR-2-R.idw

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

RELEASED FROM ENGINEERING

5/30/2006

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

9/06/2007

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.2

MAX INPUT POWER

0.3

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 0.1W/0.1M

(AT 0.8, 1.0, 1.2, 1.5 kHz)

85 ± 3

dBA

DISTORTION (MAX.)

RESONANT FREQUENCY

1100 ± 20%

FREQUENCY RANGE

700 ~ 5000

HOUSING MATERIAL

METAL

CONE MATERIAL

MYLAR

MAGNET MATERIAL

OPERATING TEMPERATURE

-20 ~ +50

°C

WEIGHT

1.1

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

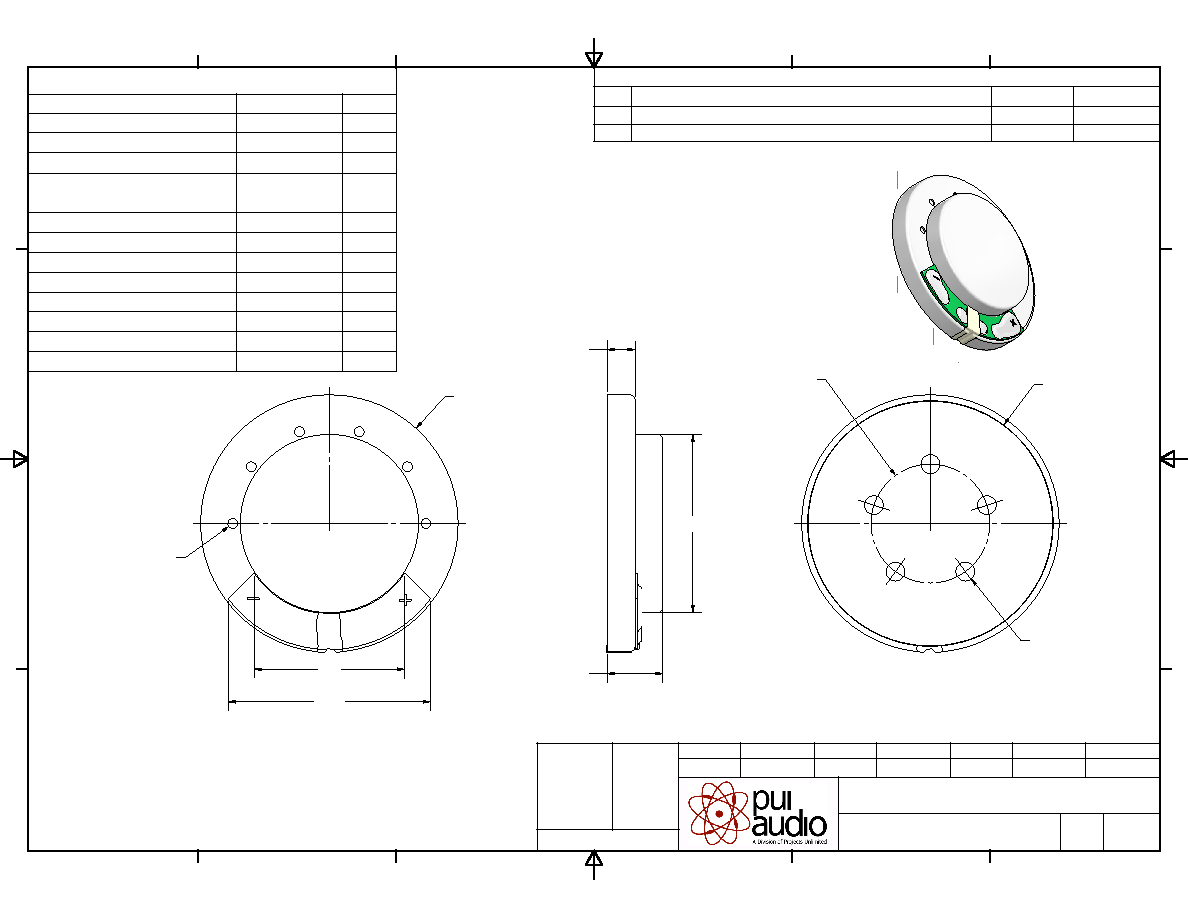

n`0.1
