AS01508AO-SC-R 数据表(PDF) 4 Page - PUI audio inc.

部件名 AS01508AO-SC-R
功能描述  Slim-Line Micro Speakers
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  PUIAUDIO [PUI audio inc.]
网页  http://www.puiaudio.com/
标志 PUIAUDIO - PUI audio inc.

AS01508AO-SC-R 数据表(HTML) 4 Page - PUI audio inc.

  AS01508AO-SC-R Datasheet HTML 1Page - PUI audio inc. AS01508AO-SC-R Datasheet HTML 2Page - PUI audio inc. AS01508AO-SC-R Datasheet HTML 3Page - PUI audio inc. AS01508AO-SC-R Datasheet HTML 4Page - PUI audio inc.
Zoom Inzoom in Zoom Outzoom out
 4 / 4 page

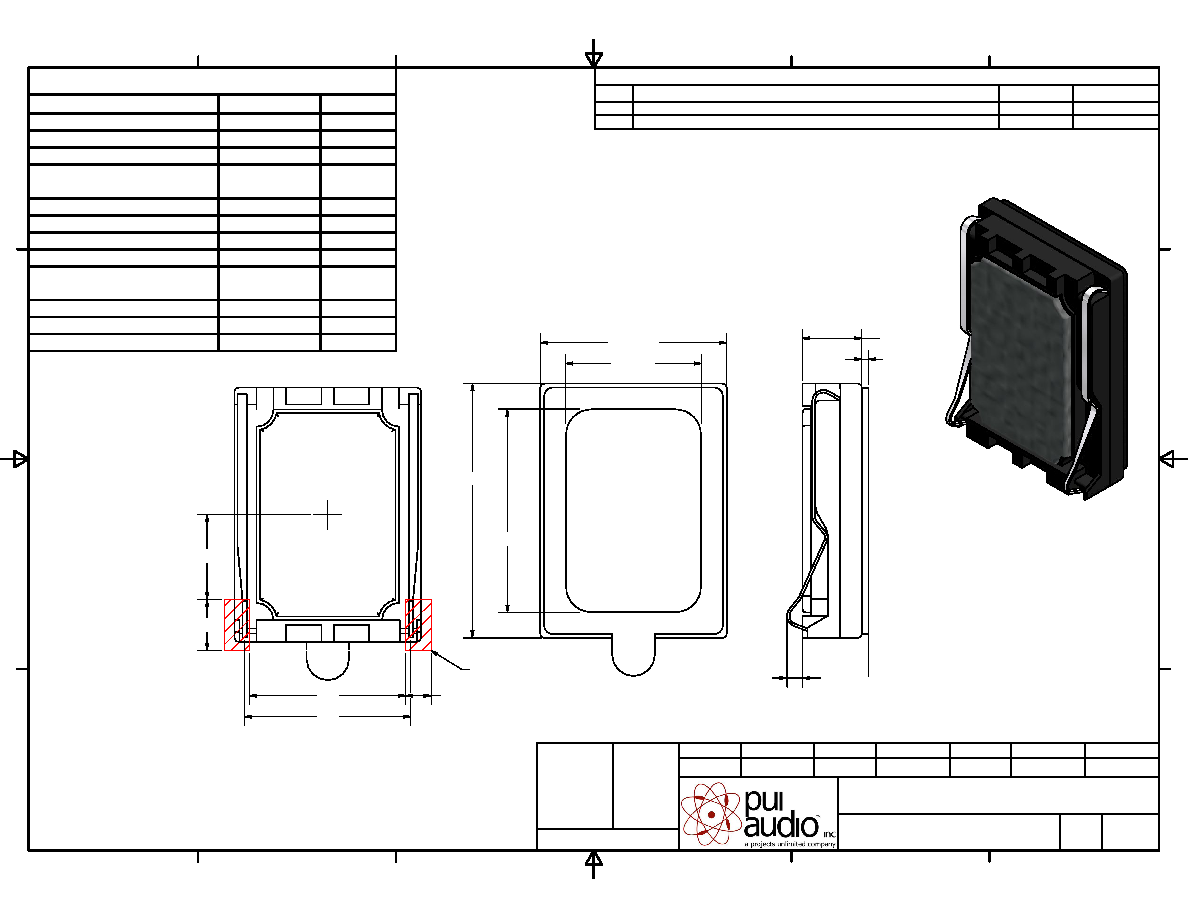

background image
Speaker
AS01508AO-SC-R
J.D.
M.L.
B.R.
4/10/2015
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
3/23/2015
Date
3/23/2015
Date
3/23/2015
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE 0.5 AND
ANGLES ARE 3 .
AS01508AO-SC-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
03/23/2015
A
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
4/10/2015
M.L.
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
0.7
W
MAX INPUT POWER
1.0
W
IMPEDANCE
8
15%
OHM
OUTPUT SPL @ 0.1W/0.1M
(AT 650-20kHz AVG.)
84
3
dBA
DISTORTION (MAX.)
10%
-
RESONANT FREQUENCY
550
20%
Hz
FREQUENCY RANGE
Fo ~ 20,000
Hz
HOUSING MATERIAL
ABS
-
CONE MATERIAL
ALUMINUM
CAP MYLAR
-
MAGNET MATERIAL
NdFeB
-
OPERATING TEMPERATURE
-40 ~ +80
C
WEIGHT
2
grams
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2011/65/EU COMPLIANT.
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
2003, Projects Unlimited Inc.
9.8
9.2
5
12
0.2
3
1.5
11
0.2
8
0.2
3.5
0.2
0.4
0.92
15
0.2
Positive (+) polarity
