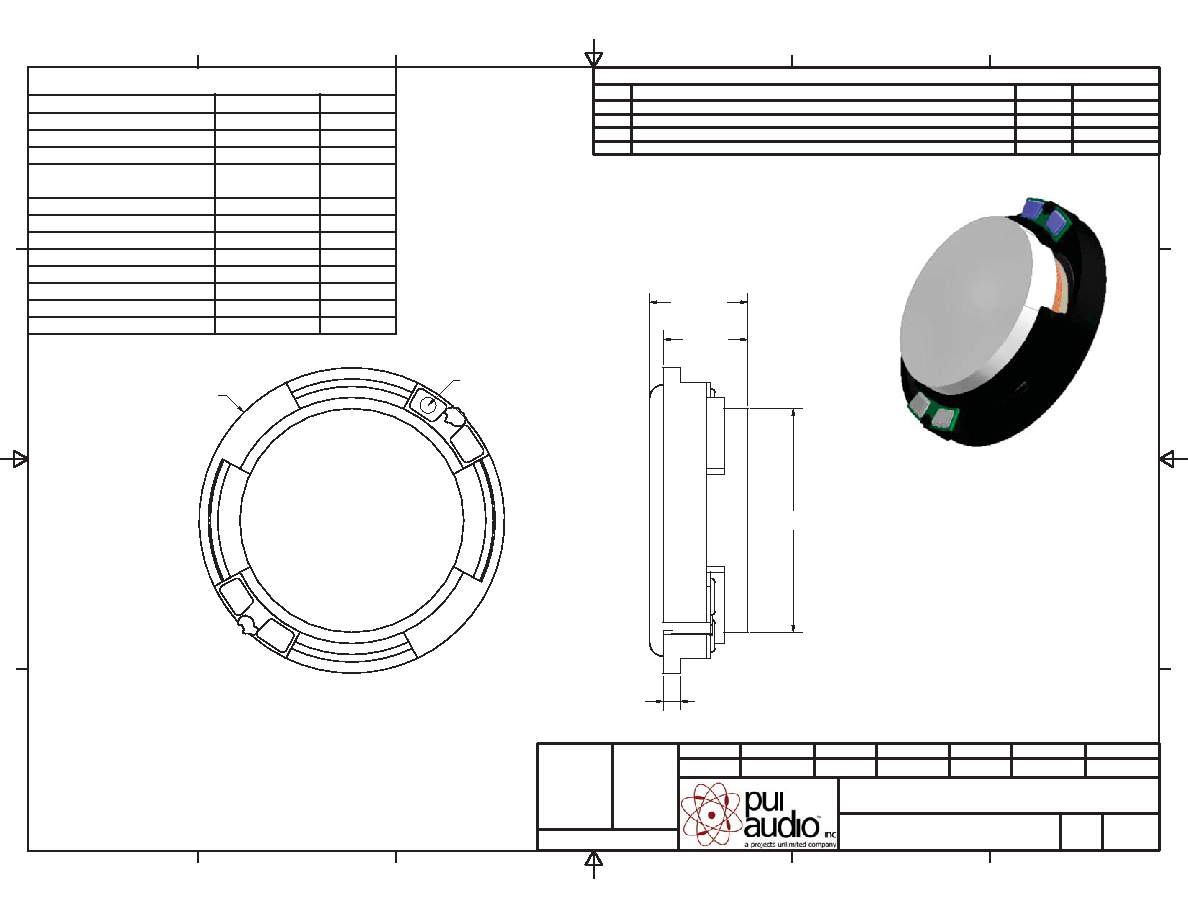

Speaker

AS01808MR-R

J.D.

X.X.

X.X.

11/4/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

12/31/2007

Date

7/18/2007

Date

7/18/2007

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS01808MR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE APPROVED

-

RELEASED FROM ENGINEERING

12/7/2005

A

ADDED RoHS NOTE

11/4/2008

J.D.

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

11/4/2008

B.R.

C

REVISED RESONANT FREQUENCY

8/25/2017

M.V.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

1

W

MAX INPUT POWER

1.5

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.8, 1.0, 1.2, 1.5 kHz)

80 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

550~745

Hz

FREQUENCY RANGE

250 ~ 20,000

Hz

HOUSING MATERIAL

ABS

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

RARE EARTH

-

OPERATING TEMPERATURE

-25 ~ +60

°C

WEIGHT

2.8

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

18 0.2

1 0.2

5 0.2

5.8 0.2

13.2 0.2

BLUE MARK

(+) LEAD

©2003, Projects Unlimited Inc.

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.
