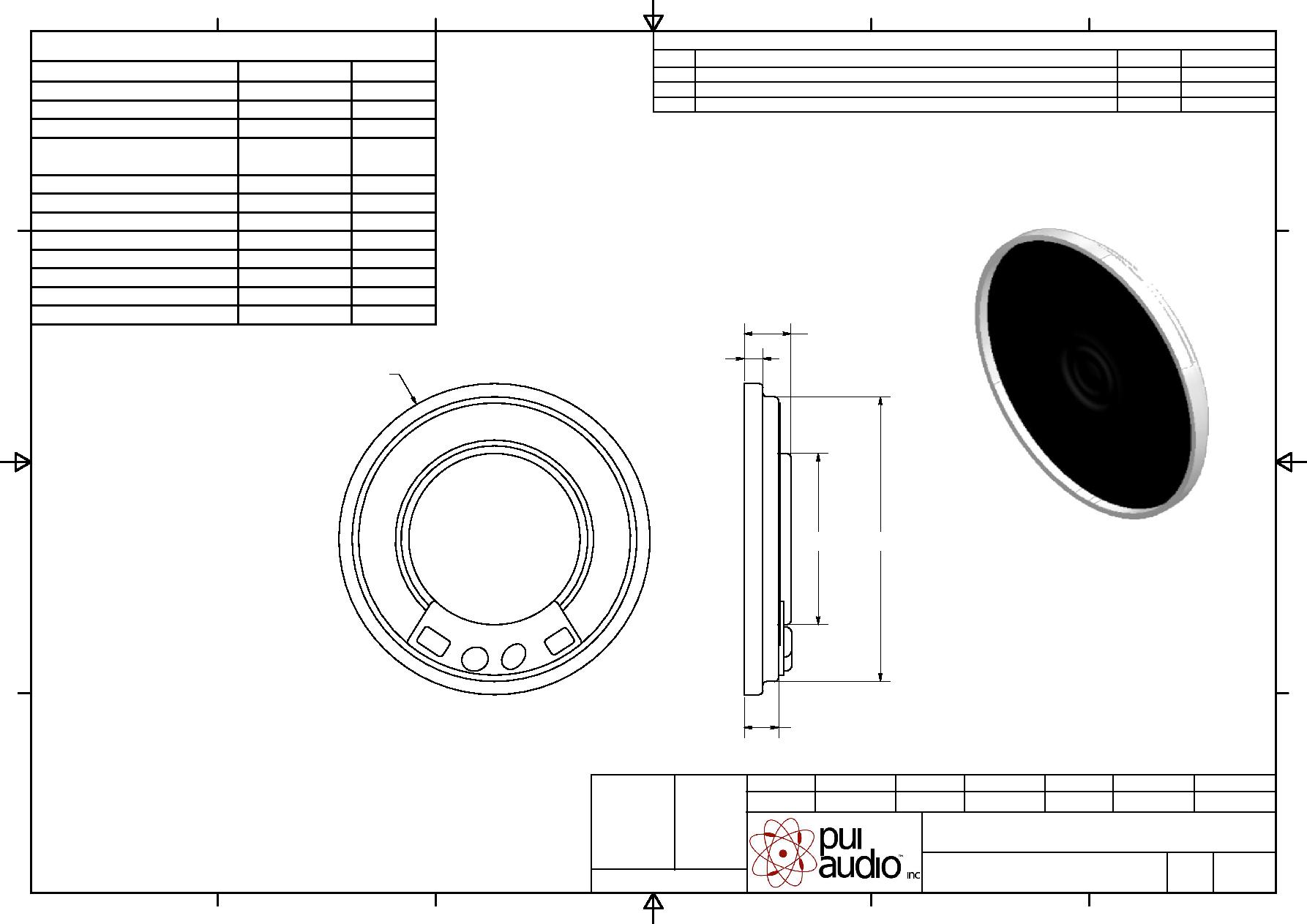

Speaker

AS02008MR-R

J.D.

E.P.

B.R.

1/25/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/2/2006

Date

5/2/2006

Date

5/2/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS02008MR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

5/2/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

1/25/2008

B.R.

B

CHANGED PLATING ON SPEAKER FRAME

3/21/2016

M.V.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.5

W

MAX INPUT POWER

0.8

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 0.1W/0.1M

(AT 0.8, 1.0, 1.2, 1.5, kHz)

86

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

500

20%

Hz

FREQUENCY RANGE

500 ~ 4,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +55

C

WEIGHT

2.4

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

20

0.2

3

0.2

1.2

0.2

11

18.3

2.21
