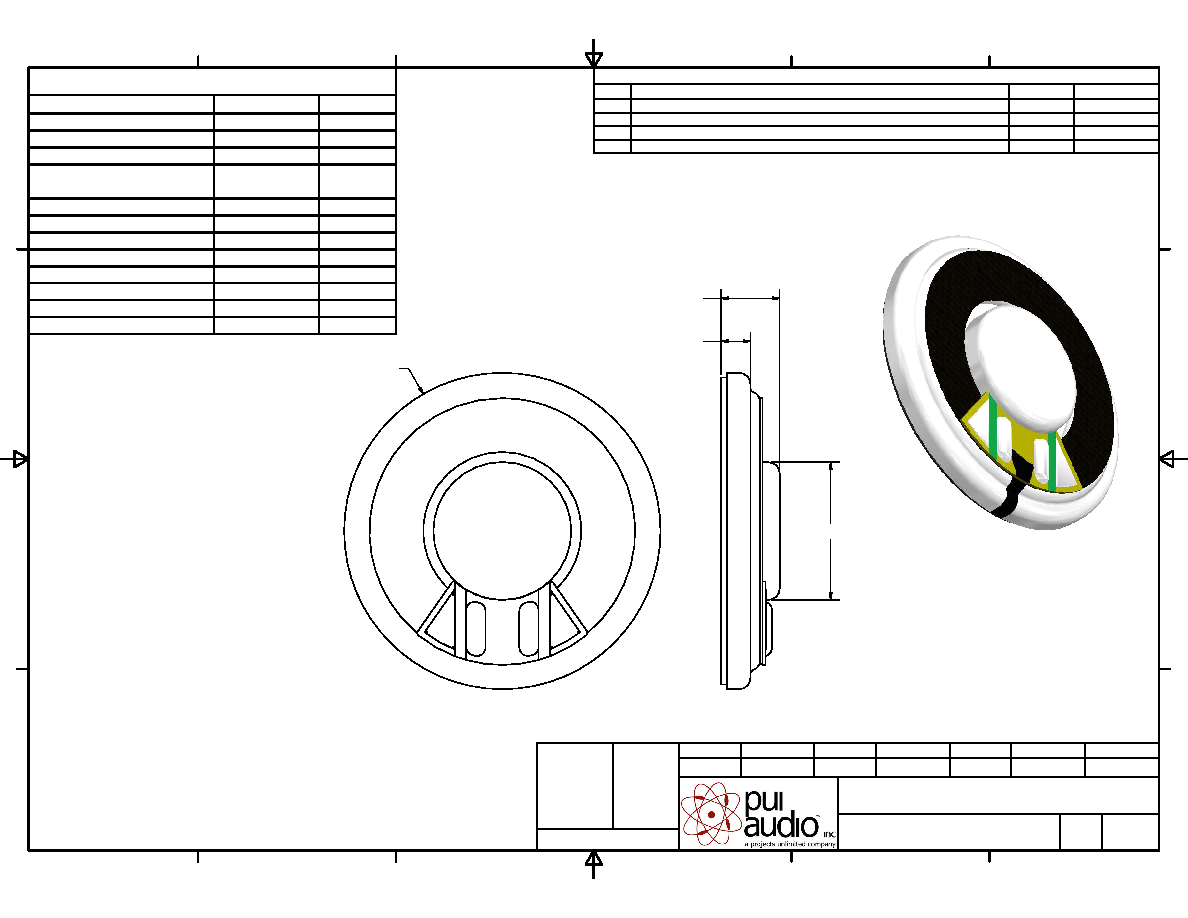

Speaker

AS02808MR-R

J.A.F.

E.P.

B.R.

11/13/2007

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

2/16/2006

Date

2/16/2006

Date

2/16/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS02808MR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

2/16/2006

A

REVISED PART DIMENSION

4/3/2007

B.R.

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

11/13/2007

B.R.

C

REVISED POWER RATING AND DIMENSIONS

11/1/2013

M.L.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

1

W

MAX INPUT POWER

1.5

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 1W/1M

(AT 0.6, 0.8, 1.0, 1.2 kHz)

80

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

500

100

Hz

FREQUENCY RANGE

500 ~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

N35

-

OPERATING TEMPERATURE

-20 ~ +60

C

WEIGHT

6.5

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

28

0.2

2.4

0.2

12.2

0.2

5.2

0.3

+

_

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.
