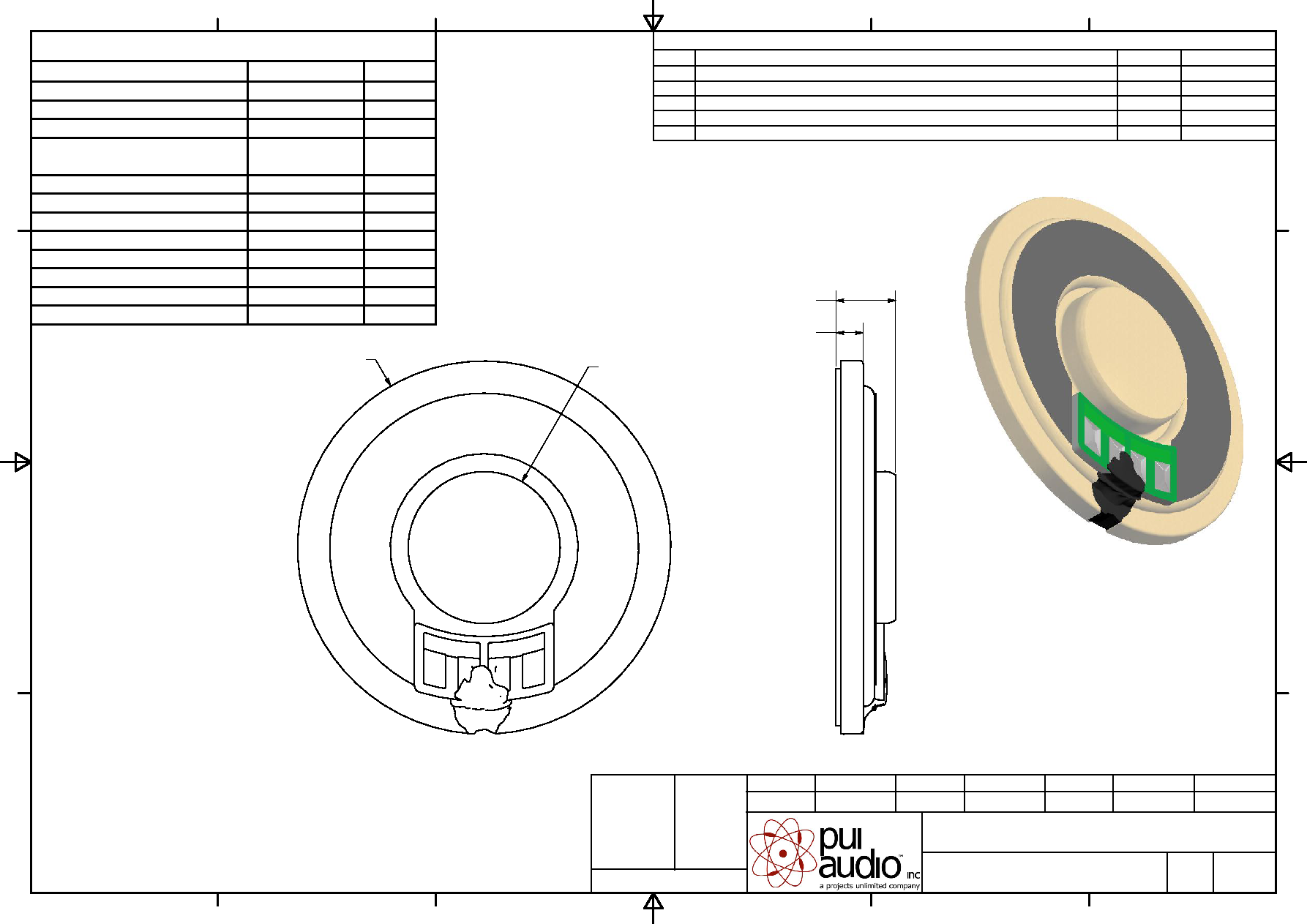

Speaker

AS03008MR-R

J.A.F.

B.R.

E.P.

11/6/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

11/8/2005

Date

11/8/2005

Date

11/8/2005

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS03008MR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

11/8/2005

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

11/6/2008

B.R.

B

REVISED OPERATING TEMP AND DIMENSIONS

11/1/2013

M.L.

C

REVISED MAGNET DIAMETER TO 12.9mm

5/24/2016

M.L.

D

REVISED SPL RATING DISTANCE FROM 1M TO 50CM

8/18/2017

M.V.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.5

W

MAX INPUT POWER

1

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 1W/50CM

(AT 0.8, 1.0, 1.2, 1.5 kHz)

82

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

650

20%

Hz

FREQUENCY RANGE

650 ~ 15,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

MYLR

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +60

C

WEIGHT

5.2

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 20011/65/EU COMPLIANT.

30

0.2

12.9

0.2

2.2

0.2

4.8

0.3

_

+

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.
