AS03608MR-4-R 数据表(PDF) 3 Page - PUI audio inc.

部件名 AS03608MR-4-R
功能描述  36mm diameter speaker with Nwodymium magnet for 85 dB sensitivity
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  PUIAUDIO [PUI audio inc.]
网页  http://www.puiaudio.com/
标志 PUIAUDIO - PUI audio inc.

AS03608MR-4-R 数据表(HTML) 3 Page - PUI audio inc.

  AS03608MR-4-R Datasheet HTML 1Page - PUI audio inc. AS03608MR-4-R Datasheet HTML 2Page - PUI audio inc. AS03608MR-4-R Datasheet HTML 3Page - PUI audio inc.
Zoom Inzoom in Zoom Outzoom out
 3 / 3 page
background image

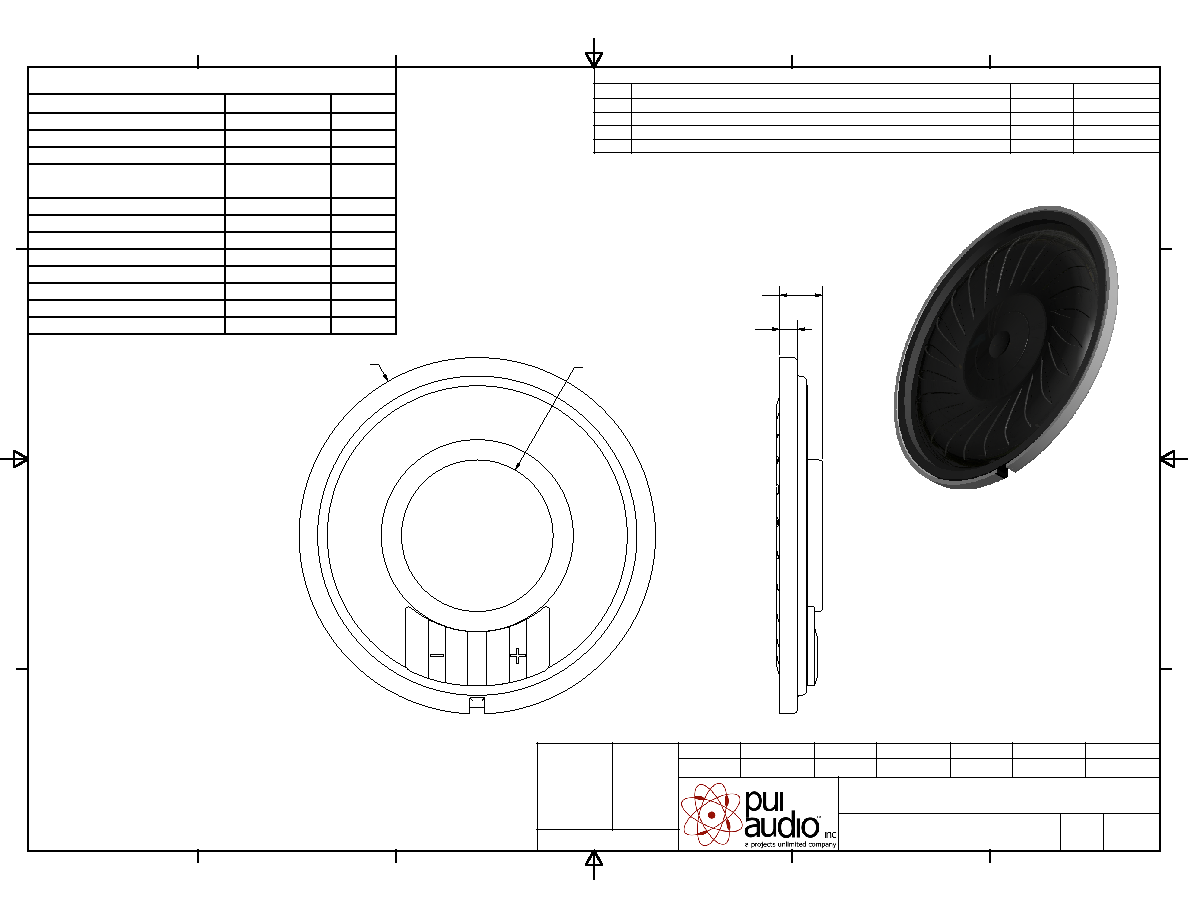

Speaker
AS03608MR-4-R
J.D.
E.P.
B.R.
12/3/2008
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
5/10/2006
Date
5/10/2006
Date
5/10/2006
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
AS03608MR-4-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
5/10/2006
A
REVISED HEIGHT DIMENSION
3/16/2007
R.W.
B
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
12/3/2008
B.R.
C
REVISED OUTPUT SPL DISTANCE kHz
11/11/2011
M.L.
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
0.8
W
MAX INPUT POWER
1
W
IMPEDANCE
8 ± 15%
OHM
OUTPUT SPL @ 1W/0.5M
(AT 0.6, 0.8, 1.0, 1.2 kHz)
85 ± 3
dBA
DISTORTION (MAX.)
5%
-
RESONANT FREQUENCY
450 ± 20%
Hz
FREQUENCY RANGE
450 ~ 20,000
Hz
HOUSING MATERIAL
METAL
-
CONE MATERIAL
MYLAR
-
MAGNET MATERIAL
N35
-
OPERATING TEMPERATURE
-20 ~ +50
°C
WEIGHT
8.5
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
©2003, Projects Unlimited Inc.
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
36
0.2
1.8
0.2
4.3
0.3
15.3
0.2
