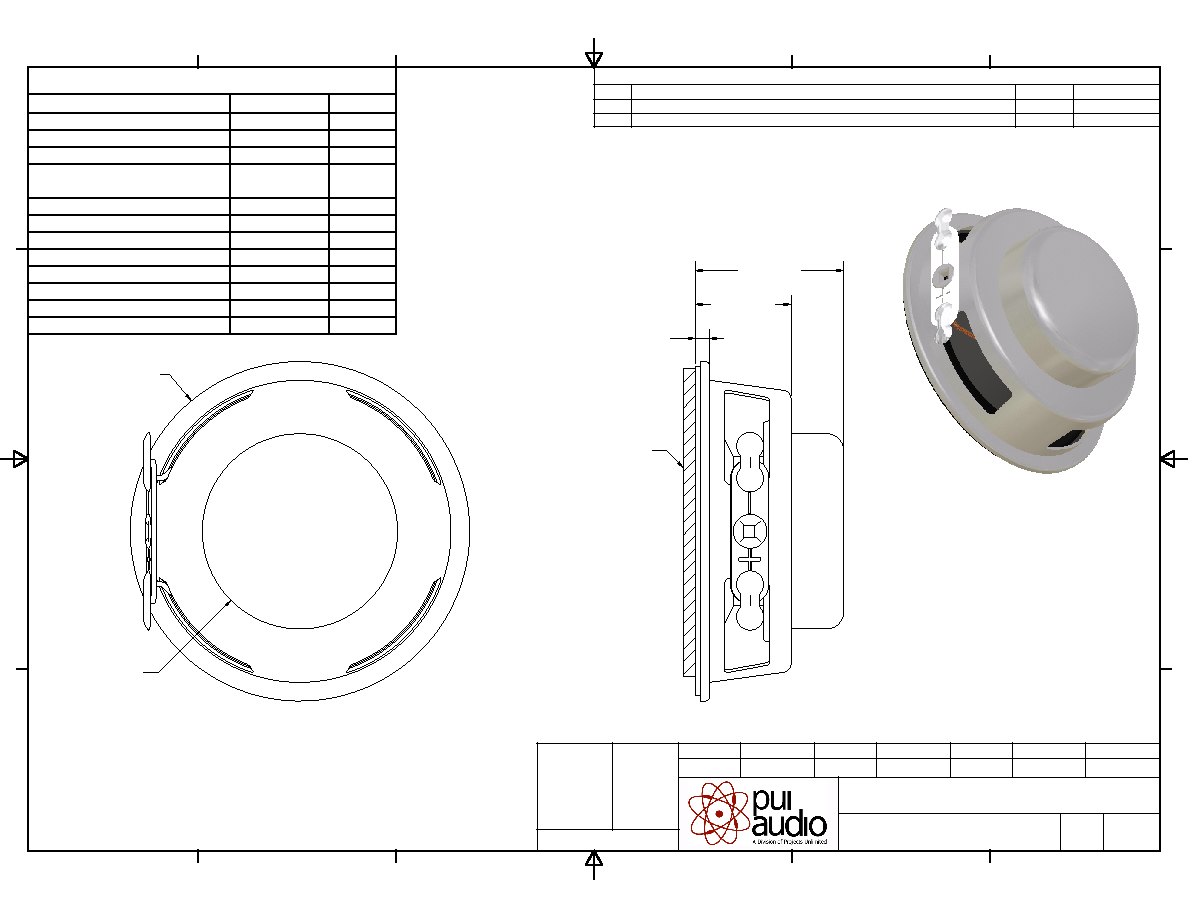

Speaker

AS04004PR-R

J.D.

C.W.

B.R.

6/15/2010

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/4/2010

Date

5/4/2010

Date

5/4/2010

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS04004PR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE APPROVED

-

RELEASED FROM ENGINEERING

5/4/2010

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

6/15/2010

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

3

W

MAX INPUT POWER

4

W

IMPEDANCE

4 ± 15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.6, 0.8, 1.0, 1.2 kHz)

86 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

180 ± 20%

Hz

FREQUENCY RANGE

100 ~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

PAPER

-

MAGNET MATERIAL

RARE EARTH

-

OPERATING TEMPERATURE

-40 ~ +85

°C

WEIGHT

25

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

©2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

40

1.7

11.3

17.5

ALLOW AT LEAST 0.8mm

FOR DIAPHRAGM MOVEMENT

(Ø35.6 BAFFLE OPENING)
