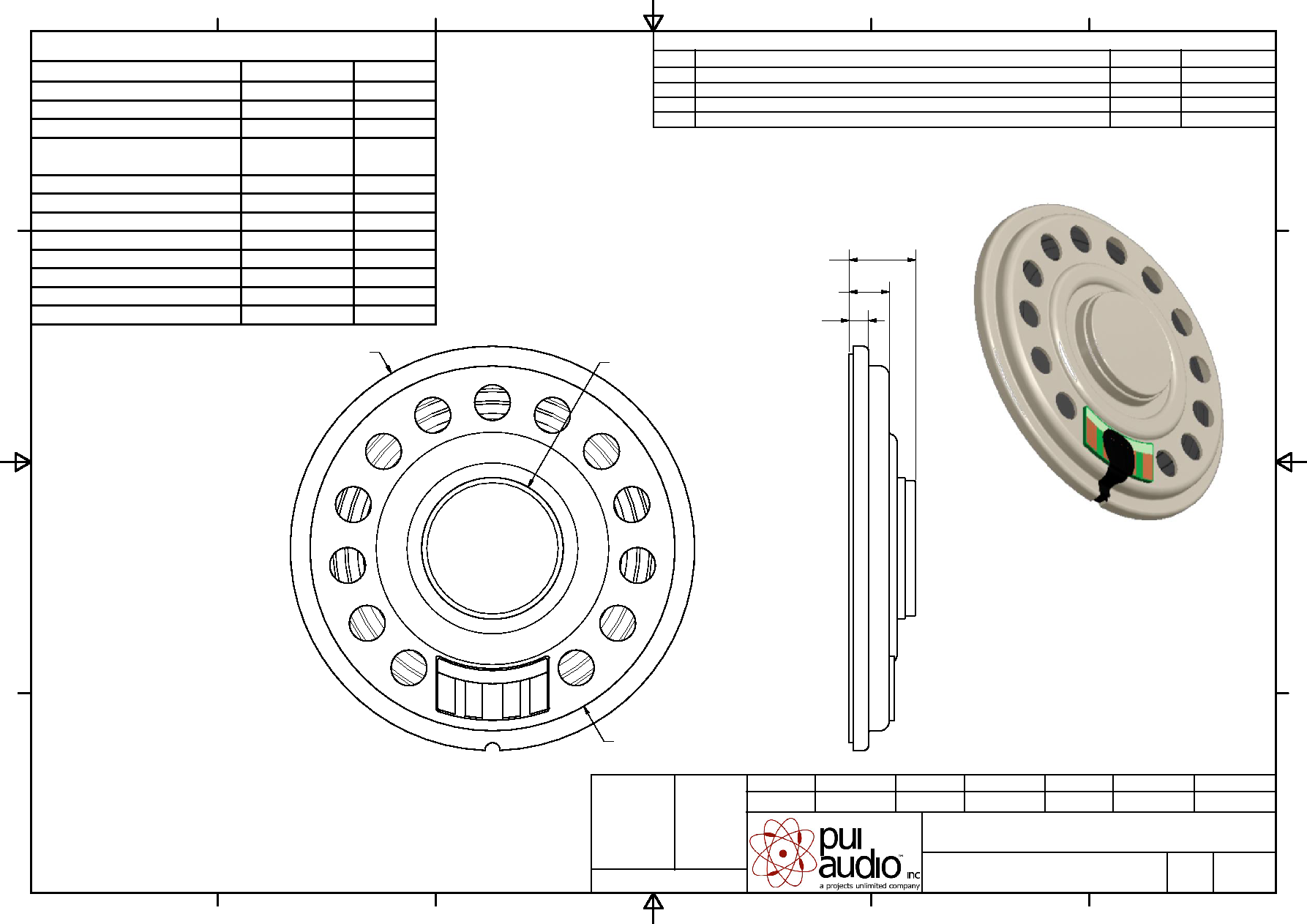

Speaker

AS04008PR-R

J.D.

B.R.

R.W.

10/21/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

9/25/2006

Date

9/25/2006

Date

9/25/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS04008PR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

9/25/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

10/21/2008

B.R.

B

REVISED SPL SPECIFICATION

9/23/2011

M.L.

C

REVISED SPL, DIMENSIONS, AND ROHS STATUS

9/26/13

M.L.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.5

W

MAX INPUT POWER

0.8

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 0.5W/0.1M

(AT 0.8, 1.0, 1.2, 1.5, kHZ)

94

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

700

20%

Hz

FREQUENCY RANGE

700 ~ 4,800

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

PAPER

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +60

C

WEIGHT

9

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

36.1

13.9

0.2

40

0.2

6.5

0.3

3.95

0.3

1.9

0.2
