Speaker

AS06008PS-R

M.V.

M.V.

B.R.

5/19/2016

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/19/2016

Date

5/19/2016

Date

5/19/2016

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS06008PS-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

5/19/2016

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

10

W

MAX INPUT POWER

15

W

IMPEDANCE

8 15%

OHM

OUTPUT SPL @ 1W/0.1M

(AT 110, 1,000, and 6,000 Hz)

99 3

dBA

RESONANT FREQUENCY

160 20%

Hz

FREQUENCY RANGE

Fo~ 18,000

Hz

HOUSING MATERIAL

ABS

-

CONE MATERIAL

PAPER

-

MAGNET MATERIAL

NdFeB

-

OPERATING TEMPERATURE

-20~ +60

C

WEIGHT

85

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

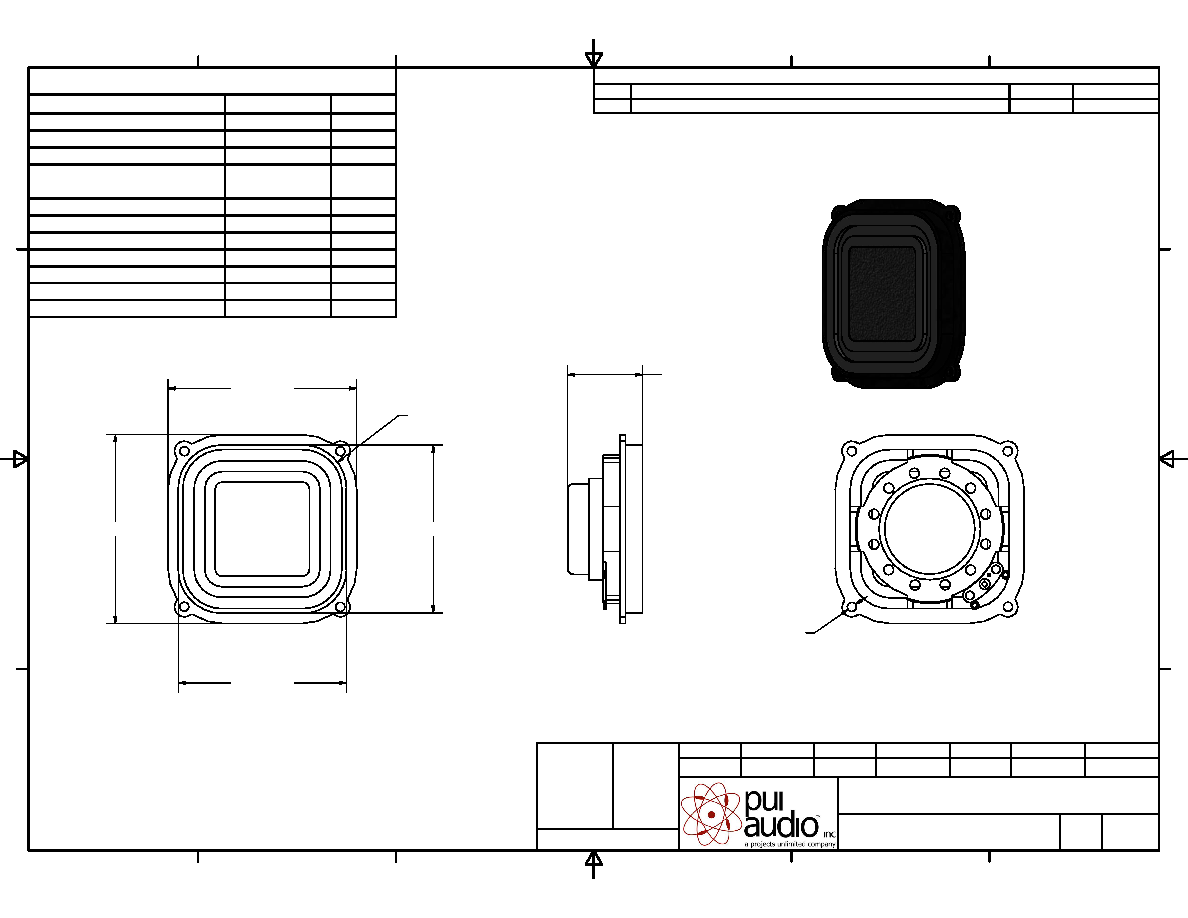

26.5

0.5

66.8

0.3

66.8

0.3

59.5

0.3

59.5

0.3

3.2 (4)

R15.5 (4)
