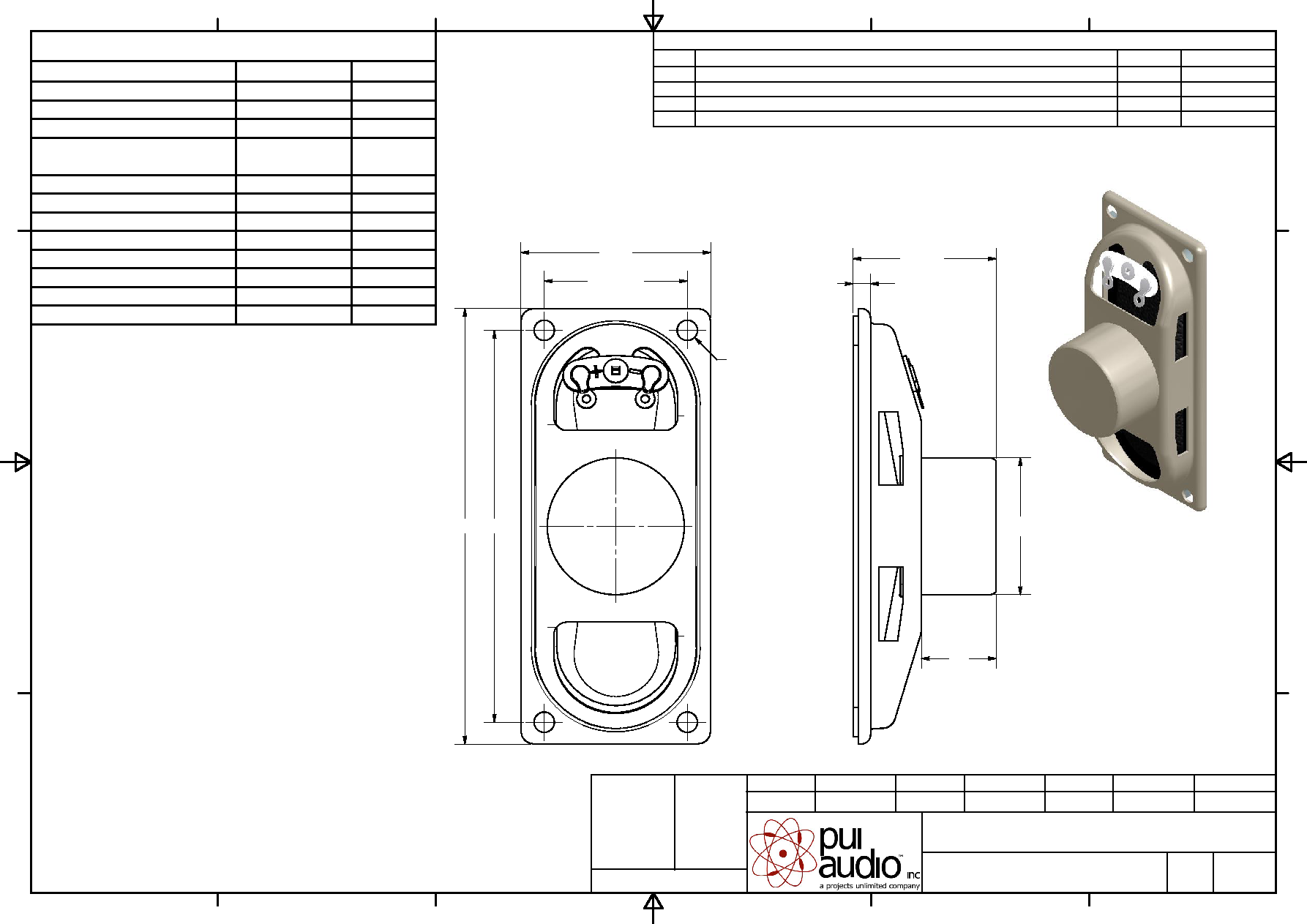

Speaker

AS07004PO-R

B.R.

B.R.

E.P.

10/9/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

4/11/2006

Date

4/11/2006

Date

4/11/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS07004PO-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

4/12/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

10/9/2006

B.R.

B

REVISED FLANGE HEIGHT DIMENSION

8/16/2011

C.W.

C

REVISED SPL TEST PARAMETERS

3/12/2015

M.L.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

2

W

MAX INPUT POWER

5

W

IMPEDANCE

4

15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.6, 0.8, 1.0, 1.2 kHz)

86

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

300

70

Hz

FREQUENCY RANGE

100 ~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

PAPER

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +60

C

WEIGHT

35

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

70 63

23

0.3

30.5

3.3

0.2 (4)

22

23

1

12

2

0.3

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.
