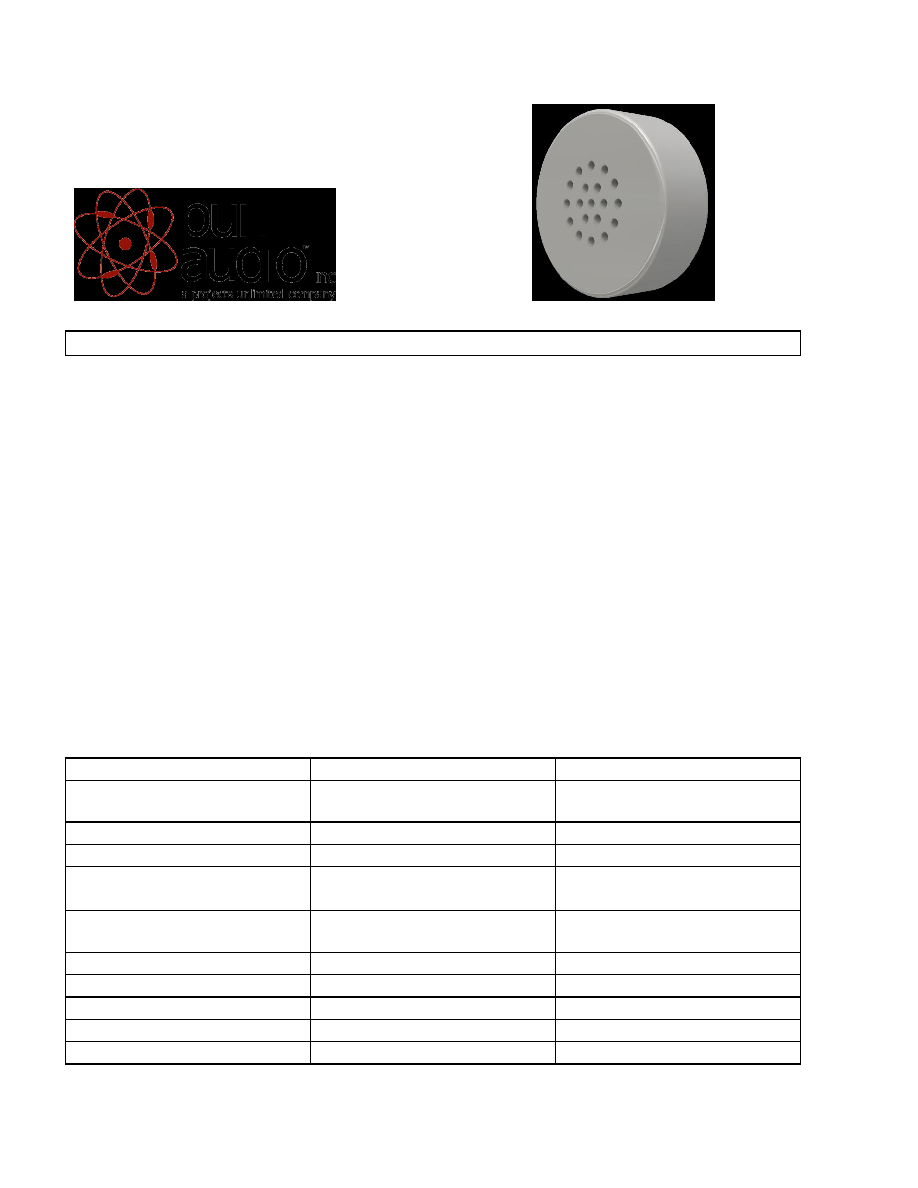

Data Sheet

DOM-3027L-HD-R

PUI Audio’s all-new HD Series microphones use premium-grade FETs and

diaphragms for high sensitivity and superior signal-to-noise ratio. Each

microphone features GSM buzz-blocking capacitors. Upgrade the ECM

microphone that you use today with a PUI Audio HD Series microphone.

The 8mm diameter DOM-3027L-HD-R is designed for extreme fidelity, in even

the quietest settings, from 20 Hz to 20 kHz.

Features:

•

8mm diameter

•

3mm height

•

-27 dB sensitivity

•

77 dB signal-to-noise ratio

•

True 20 Hz to 20 kHz performance

Specifications

Parameters

Values

Units

Sensitivity (1 kHz @ 50cm)

0 dB=1V/Pa

-27 ±3

dB

Rated Voltage

3

VDC

Output Impedance (@ 1 kHz)

2.2

kΩ

Current consumption

(3VS with 2.2 kΩ RL)

500

µA

Signal-to-Noise Ratio

(1kHz, 94 dB input, A-weighted)

77

dB

Decreasing Voltage (3VS to 2VS)

-3

dB

Frequency Range

20 ~ 20,000

Hz

Operating Voltage Range

1 ~ 10

VDC

Maximum SPL Input (THD<3%)

110

dB

Directivity

Omni-directional

-
