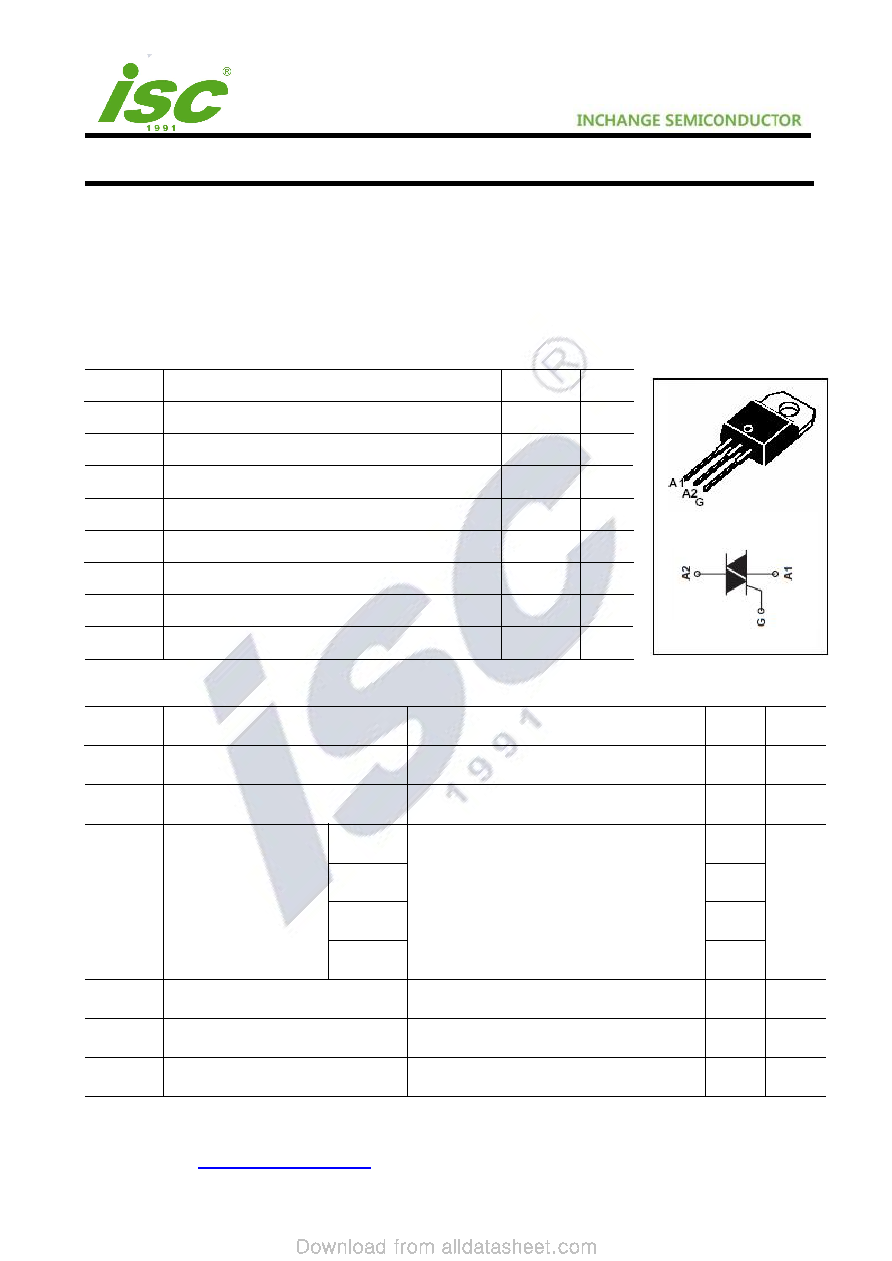

isc website：www.iscsemi.com

isc & iscsemi is registered trademark

isc Triacs

ISC4A131P

FEATURES

·

With TO-220AB insulated package

·

Suitables for general purpose applications where gate high sensitivity is

required. Application on 4Q such as phase control and static switching

·

Minimum Lot-to-Lot variations for robust device performance and reliable operation

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

MIN

UNIT

VDRM

Repetitive peak off-state voltage

800

V

VRRM

Repetitive peak reverse voltage

800

V

IT(RMS)

RMS on-state current (full sine wave)Tj=105℃

6

A

ITSM

Non-repetitive peak on-state current tp=20ms

60

A

Tj

Operating junction temperature

110

℃

Tstg

Storage temperature

-45~150

℃

Rth(j-c)

Thermal resistance, junction to case

2.7

℃

/W

Rth(j-a)

Thermal resistance, junction to ambient

60

℃

/W

ELECTRICAL CHARACTERISTICS (TC=25℃ unless otherwise specified)

SYMBOL

PARAMETER

CONDITIONS

MAX

UNIT

IRRM

Repetitive peak reverse current

VR=VRRM,

VR=VRRM, Tj=110℃

0.01

0.5

mA

IDRM

Repetitive peak off-state current

VD=VDRM,

VD=VDRM, Tj=110℃

0.01

0.5

mA

IGT

Gate trigger current

Ⅰ

VD=12V; RL= 30Ω

10

mA

Ⅱ

10

Ⅲ

10

Ⅳ

25

IH

Holding current

IGT= 0.1A, Gate Open

25

mA

VGT

Gate trigger voltage all quadrant VD=12V; RL= 30Ω

1.3

V

VTM

On-state voltage

IT= 8.5A; tp= 380μs

1.65

V
