TOPWAY
LCD Module User Manual
LM6800AFW-5
URL: www.topwaydisplay.com
www.topwaysz.com
Document Name: LM6800AGW-6-Manual-Rev0.1.DOC
Page: 6 of 10
3.3
AC Characteristics
VSS=0V, VDD =5V, TOP =25°C
Item
Symbol
MIN.
TYP.
MAX.
Unit
E cycle time
tc
1500
-
-
ns
E high level width
twh
700
-
-
ns
E low level width
twl
700
-
-
ns
E rise time
tr
-
-
18
ns
E fall time
tf
-
-
18
ns
Address set-up time
tasu
240
-
-
ns
Address hold time
tah
50
-
-
ns
Data set-up time
tdsu
300
-
-
ns
Data delay time
td
-
-
480
ns
Data hold time (write)
tdhw
15
-
-
ns
Data hold time (read)
tdhr
30
-
-
ns

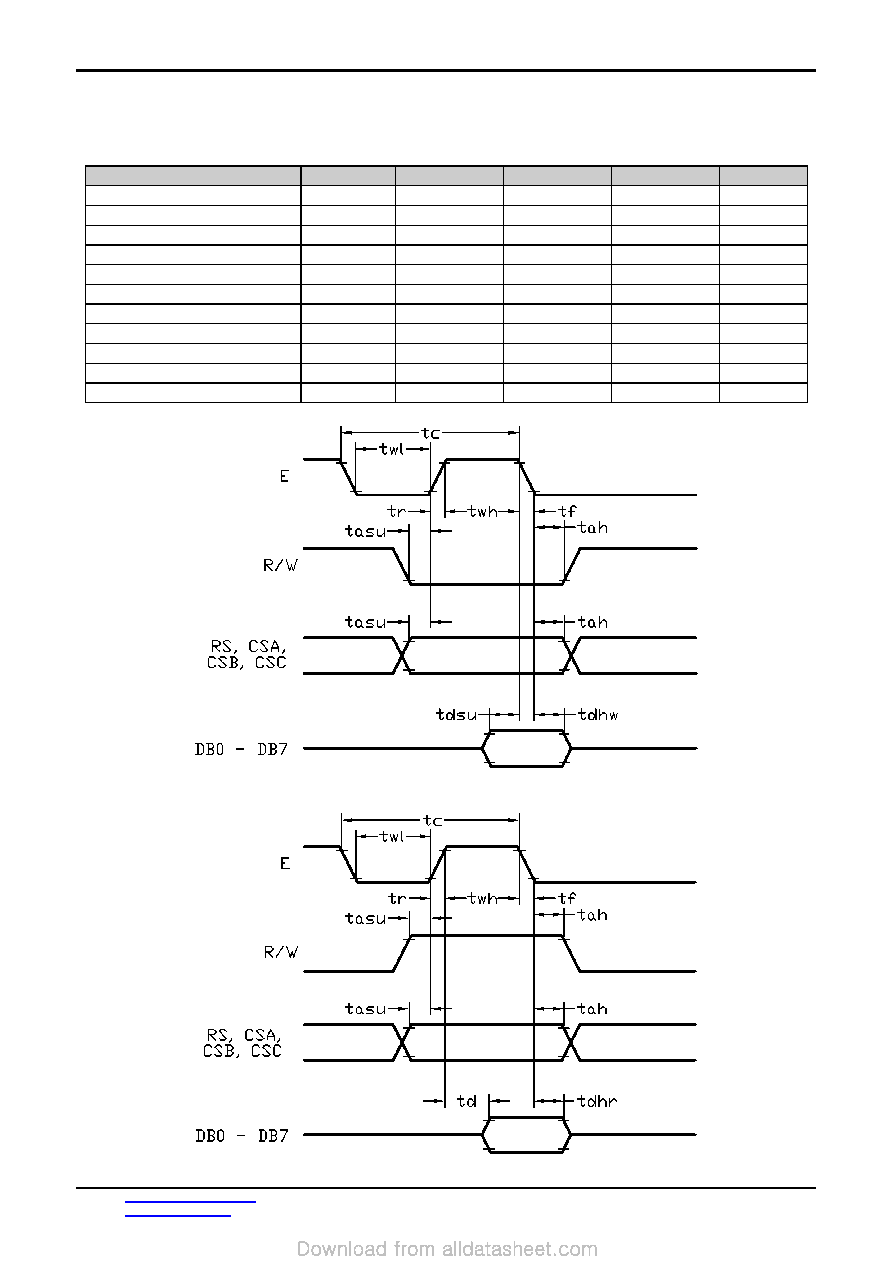

Host Write Timing Diagram
Host Read Timing Diagram
