FSMD260-16R

4.37

4.73

3.07

3.41

0.80

1.55

0.25

0.95

0.25

0.65

FSMD300R

4.37

4.73

3.07

3.41

0.80

1.55

0.25

0.95

0.25

0.65

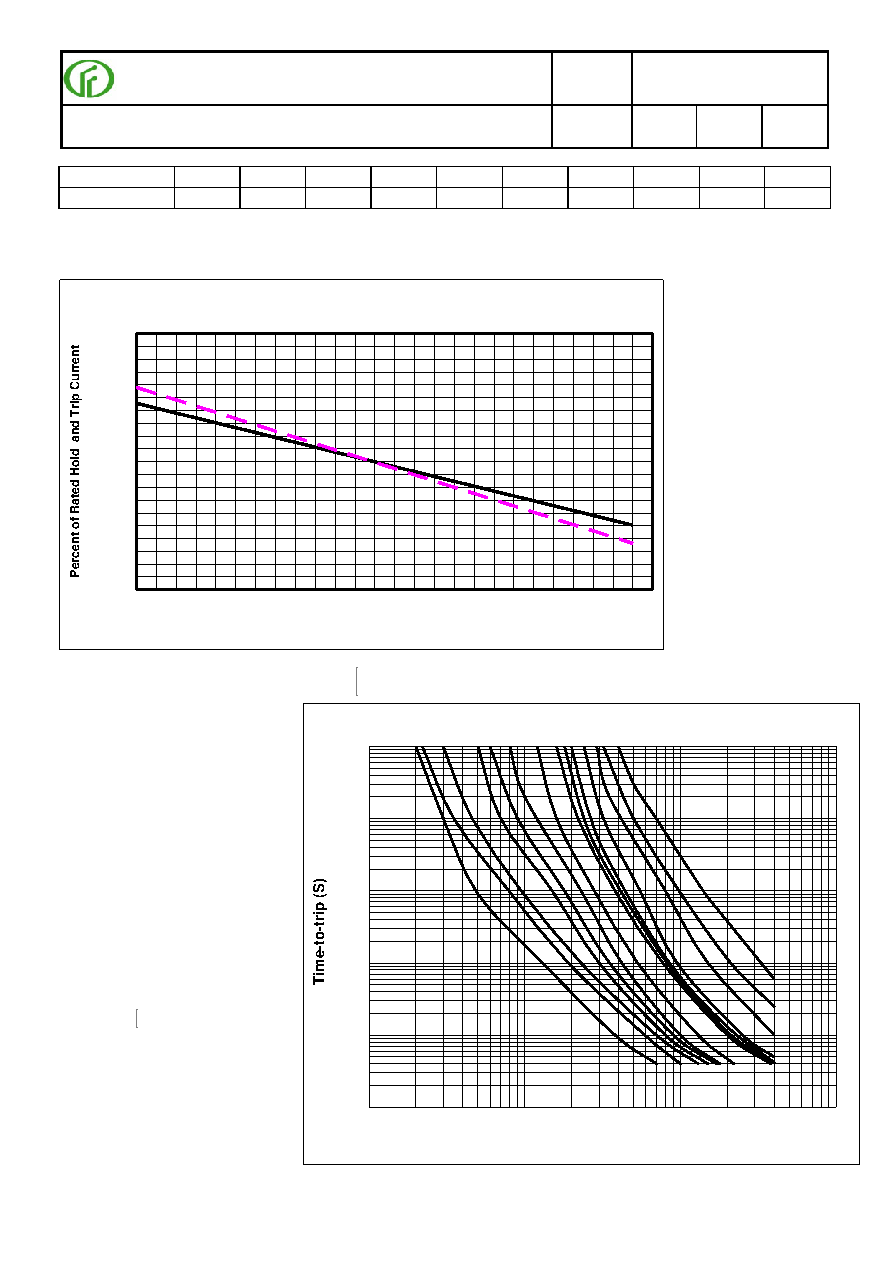

5. Thermal Derating Curve

FSMD Series

50%

100%

150%

200%

-40

-20

Ambient Temperature (℃)

6. Typical Time-To-Trip at 23℃

A = FSMD010-R

B = FSMD014-R

C = FSMD020-R / 020-60-R

D = FSMD030-R

E = FSMD035-R / 035-30-R

F = FSMD050-R / 050-30-R

G = FSMD075-R / 075-24R /

075-33R

H = FSMD110-R / 110-16-R /

110-24R / 110-33R

I = FSMD125-R / 125-16R

J = FSMD150-R / 150-12R /

150-24R

K = FSMD160-R / 160-12R /

160-16R

L = FSMD200R / 200-16R

M = FSMD260R / 260-13R /

260-16R

N = FSMD300R

A= FSMD075-R, 075-24R, 075-33R,

110-R, 110-16-R, 110-24R,

110-33R, 125-R, 125-16R,

150-R, 150-12R, 150-24R,

160-R, 160-12R, 160-16R, 200R,

200-16R, 260R, 260-13R,

260-16R, 300R

B= FSMD010-R, 014-R, 020-R,

020-60-R, 030-R,

035-R,035-30-R,050-R,

050-30-R

0.001

0.01

0.1

100

0.1

100

Fault Current (A)

A B

D E

HIJ

K LM N
