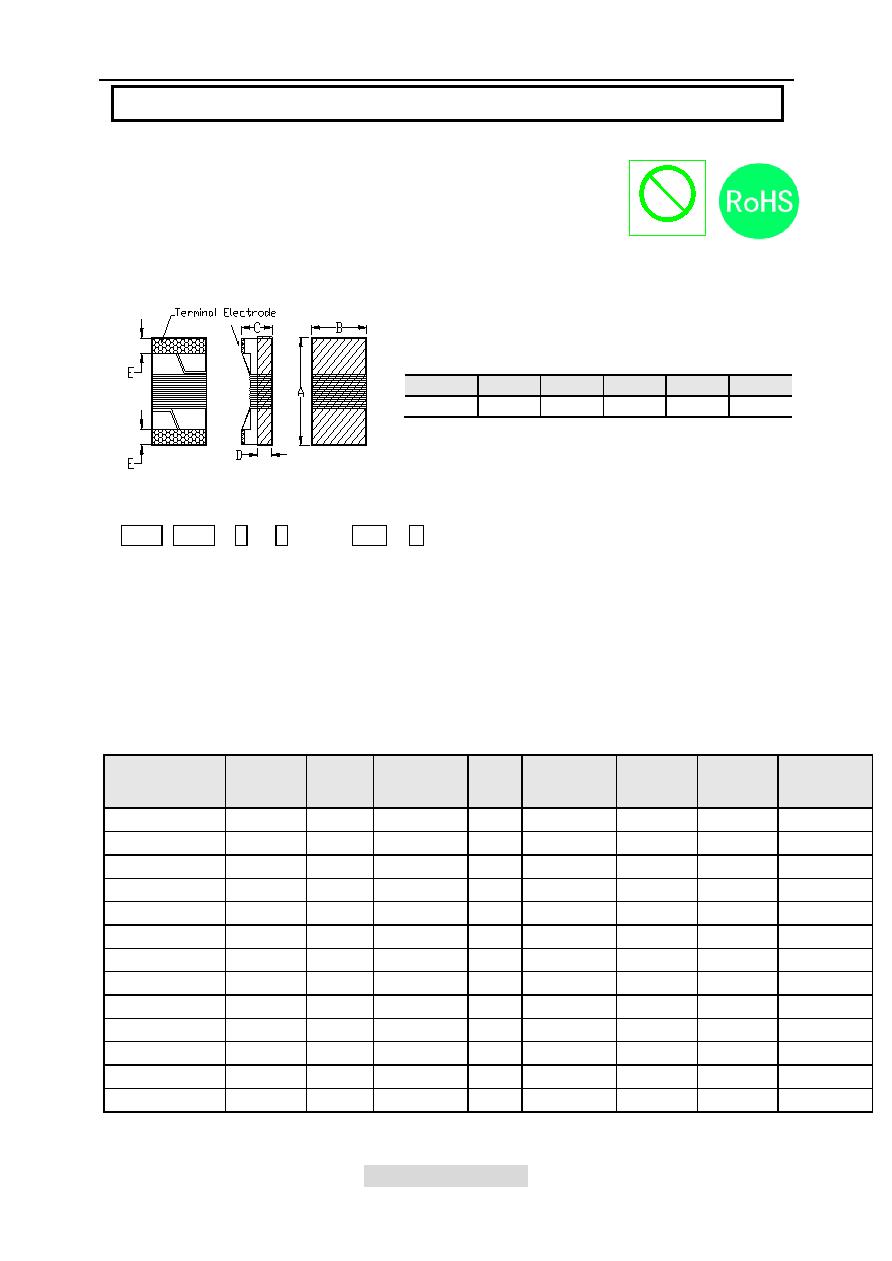

1. Features

2. Dimensions

3. Part Numbering

4. Specification

TAI-TECH

Part Number

Inductance

(uH)

Tolerance

Test Frequency

(Hz)

Q

Typ

Test Frequency

(MHz)

SRF

(MHz) typ.

DCR

(Ω) max.

IDC

(mA) max.

SWF1608LF-47N□

0.047

K

0.5V/7.9M

17

7.9

1700

0.075

1500

SWF1608LF-72N□

0.072

K

0.5V/7.9M

17

7.9

1700

0.12

1500

SWF1608LF-R10□

0.1

K

0.5V/7.9M

17

7.9

1500

0.12

1500

SWF1608LF-R15□

0.15

K

0.5V/7.9M

17

7.9

1350

0.15

1450

SWF1608LF-R18□

0.18

K

0.5V/7.9M

17

7.9

1150

0.15

1400

SWF1608LF-R33□

0.33

K

0.5V/7.9M

17

7.9

850

0.46

900

SWF1608LF-R39□

0.39

K

0.5V/7.9M

17

7.9

810

0.51

1100

SWF1608LF-R47□

0.47

K

0.5V/7.9M

17

7.9

720

0.62

1050

SWF1608LF-R56□

0.56

K

0.5V/7.9M

17

7.9

600

0.44

850

SWF1608LF-R68□

0.68

K

0.5V/7.9M

17

7.9

600

0.52

850

SWF1608LF-R82□

0.82

K

0.5V/7.9M

17

7.9

480

0.69

750

SWF1608LF-R91□

0.91

K

0.5V/7.9M

17

7.9

330

0.76

670

SWF1608LF-1R0□

1.00

K

0.5V/7.9M

17

7.9

310

0.81

600

1. Ferrite core wire wound construction.

2. High Reliability due to wire wound type construction.

3. Small footprint as well as low profile.

4. Application for Signal Use.

5. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

6. Operating temperature-40~+125℃ (Including self - temperature rise)

SWF 1608

L

F

-

R10

K

A

B

C

D

E

F

A: Series

B: Dimension

L x W

C: Application

For Signal Use

D: Lead free type

E: Inductance

R10=0.1uH

F: Inductance Tolerance

J=±5%,K=±10%

Size

A

B

C

D

E

SWF1608

1.65±0.15

1.15±0.15

1.05±0.15

±0.15

0.38 ref.

0.35±0.1

Unit:mm

Winding Type Chip Inductor

SWF1608LF-SERIES

Halogen-free

Halogen
