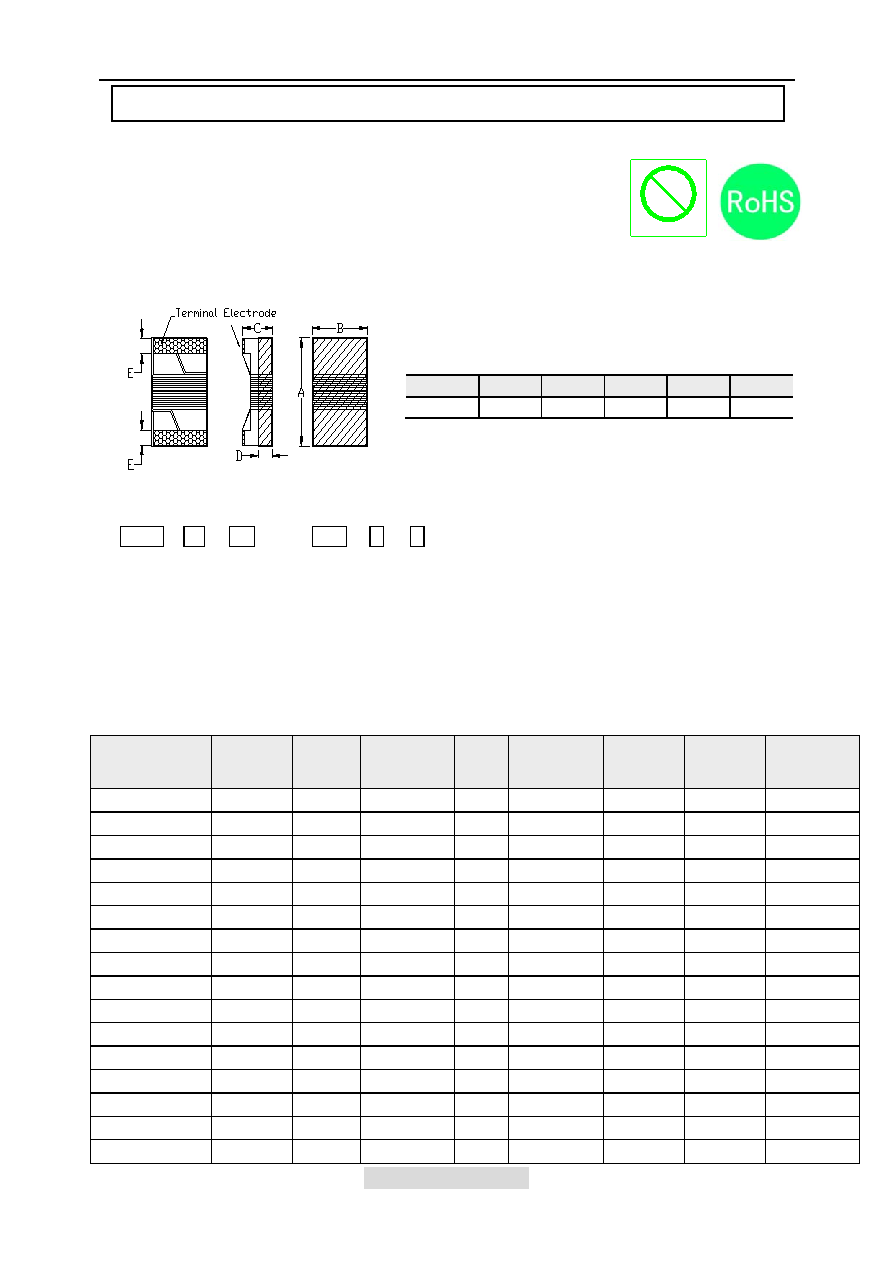

1 / 2 page  TAI-TECH www.tai-tech.com.tw 1. Features 2. Dimensions 3. Part Numbering 4. Specification 1. Ferrite core wire wound construction. 2. High Reliability due to wire wound type construction. 3. Small footprint as well as low profile. 4. Application for DC power line. 5. 100% Lead(Pb) & Halogen-Free and RoHS compliant. 6. Operating temperature -40~+125℃ (Including self - temperature rise) SWC 18 FC - 47N K A A B C D E F A: Series B: Dimension L x W C: Lead free type D: Inductance 47N=0.047 uH E: Inductance Tolerance K=±10%; M=±20% F: Control S/N Size A B C D E SWC18FC 1.80 max. 1.20 max. 1.20 max. 0.38 ref. 0.35±0.1 Unit:mm Winding Type Chip Inductor SWC18FC-SERIES TAI-TECH Part Number Inductance (uH) Tolerance Test Frequency (Hz) Q min. Test Frequency (MHz) SRF (MHz) min. DCR (Ω) max. Rated Current (mA) max. SWC18FC-47N□A 0.047 K,M 0.5V/7.96M 10 7.96 1500 0.075 1400 SWC18FC-R10□A 0.10 K,M 0.5V/7.96M 10 7.96 1150 0.13 1400 SWC18FC-R12□A 0.12 K,M 0.5V/7.96M 10 7.96 1100 0.15 1400 SWC18FC-R15□A 0.15 K,M 0.5V/7.96M 10 7.96 1050 0.15 1300 SWC18FC-R18□A 0.18 K,M 0.5V/7.96M 10 7.96 950 0.15 1300 SWC18FC-R22□A 0.22 K,M 0.5V/7.96M 10 7.96 800 0.15 950 SWC18FC-R24□A 0.24 K,M 0.5V/7.96M 10 7.96 800 0.31 620 SWC18FC-R27□A 0.27 K,M 0.5V/7.96M 10 7.96 775 0.20 710 SWC18FC-R33□A 0.33 K,M 0.5V/7.96M 10 7.96 725 0.35 620 SWC18FC-R39□A 0.39 K,M 0.5V/7.96M 10 7.96 620 0.39 600 SWC18FC-R47□A 0.47 K,M 0.5V/7.96M 10 7.96 540 0.43 570 SWC18FC-R56□A 0.56 K,M 0.5V/7.96M 10 7.96 525 0.47 550 SWC18FC-R68□A 0.68 K,M 0.5V/7.96M 10 7.96 460 0.52 470 SWC18FC-R82□A 0.82 K,M 0.5V/7.96M 10 7.96 410 0.69 400 SWC18FC-1R0□A 1.0 K,M 0.5V/7.96M 10 7.96 190 0.81 400 SWC18FC-1R2□A 1.2 K,M 0.5V/7.96M 10 7.96 160 0.87 370 Halogen-free Halogen |
