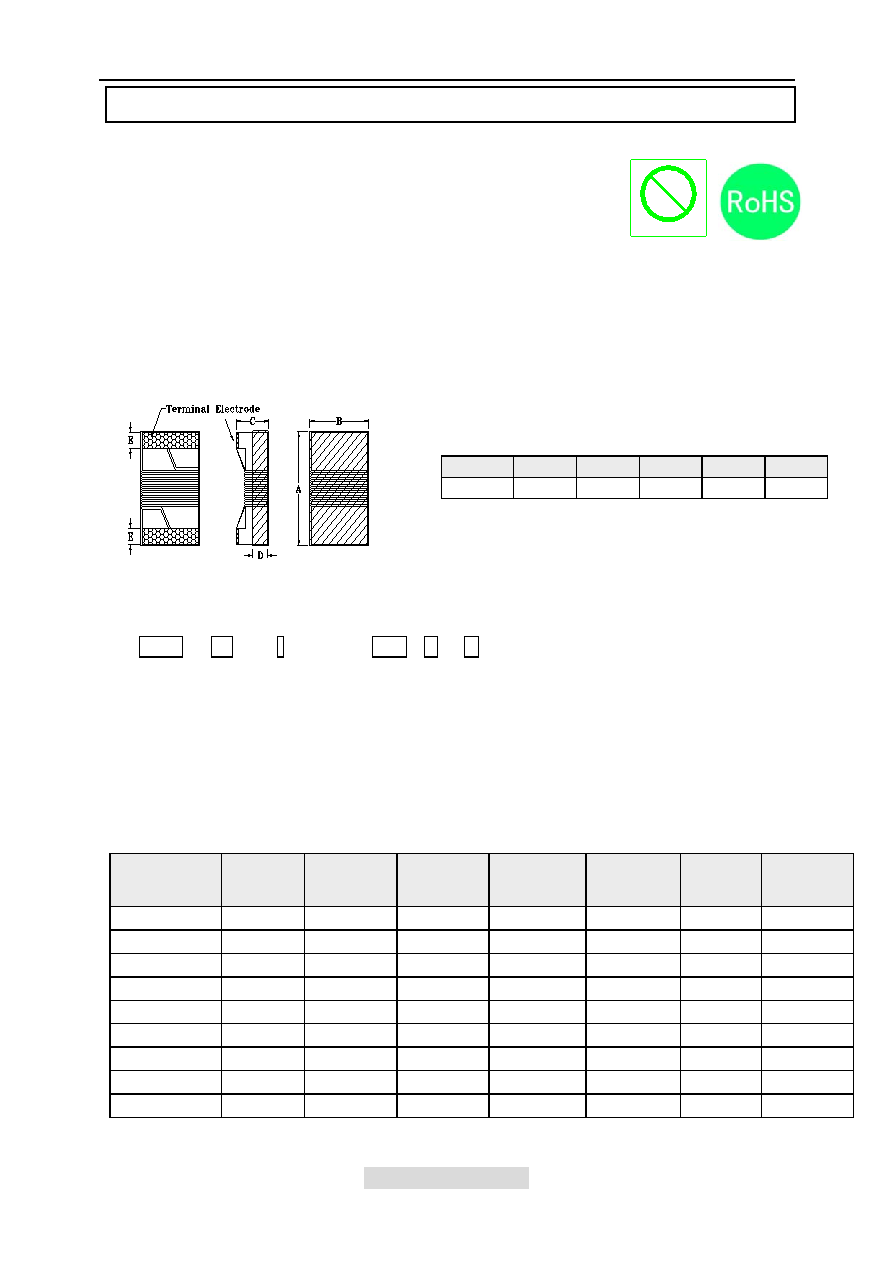

1 / 2 page

TAI-TECH

www.tai-tech.com.tw

1. Features

2. Dimensions

3. Part Numbering

4. Specification

SWC

85

I

-

2N0

S

A

B

C

D

E

F

A: Series

B: Dimension

LxW

C: Lead free type

D: Inductance

2N0=2.0nH

E: Inductance Tolerance

C=±0.2nH , S=±0.3nH, J=±5% ,K=±10%

F: Control S/N

Part Number

Inductance

(nH)

Tolerance

Test Frequency

(Hz)

Q @ Test Freq.

min.

Rated Current

(mA) max.

DCR

(Ω) max.

SRF

(MHz) min.

SWC85I-2N0□A

2.0

C,S

0.1V/250M

70/1500

800

0.03

8000

SWC85I-3N9□A

3.9

C,S

0.1V/250M

70/1500

800

0.04

5750

SWC85I-4N7□A

4.7

C,S

0.1V/250M

70/1500

800

0.04

5750

SWC85I-6N8□A

6.8

C,J,K

0.1V/250M

70/1500

800

0.06

5500

SWC85I-7N5□A

7.5

C,J,K

0.1V/250M

70/1000

800

0.06

4500

SWC85I-8N2□A

8.2

C,J,K

0.1V/250M

70/1000

800

0.06

4700

SWC85I-10N□A

10

J,K

0.1V/250M

70/1000

600

0.08

4200

SWC85I-12N□A

12

J,K

0.1V/250M

80/1000

600

0.08

4000

SWC85I-15N□A

15

J,K

0.1V/250M

80/1000

600

0.10

3400

Size

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

SWC85I

2.40 max.

1.60 max.

1.40 max.

0.51 ref.

0.44±0.1

Unit:mm

1. Ceramic core wire wound construction.

2. No batch to batch variations in inductance

3. High Reliability due to ceramic wire wound construction.

4. High frequency application.

5. Small footprint as well as low profile.

6.100% Lead(Pb) & Halogen-Free and RoHS compliant.

7. Operating temperature-40~+125℃ (Including self - temperature rise)

High Frequency Winding Type Chip Inductor

SWC85I-SERIES

Halogen-free

Halogen
