AWP252012AF-R47M datasheet(1/2 Pages) TAI-TECH

部件名	AWP252012AF-R47M

功能描述	Power Inductors

PDF	2 Pages

Scroll/Zoom	100%

制造商	TAI-TECH [TAI-TECH Advanced Electronics Co., Ltd.]

网页	https://www.tai-tech.com.tw/en/

标志

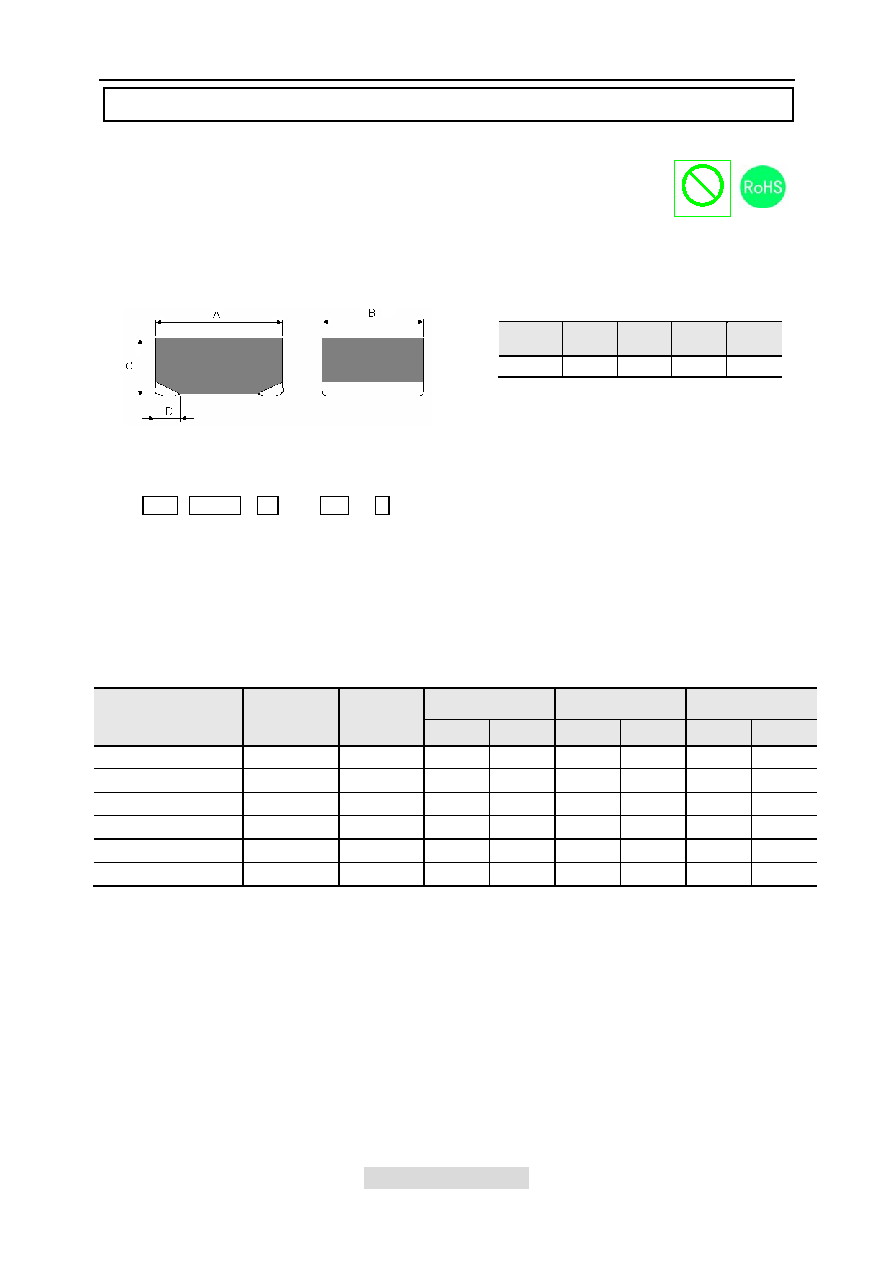

1 / 2 page

TAI-TECH

www.tai-tech.com.tw

AWP 252012

AF

-

R47

M

A

B

C

D

E

A: Series

B: Dimension

C: Material

D: Inductance

R47=0.47uH

E: Inductance Tolerance

M=±20%

1. Features

2. Dimensions

3. Part Numbering

4. Specification

Power Inductors

AWP252012AF-Series

1. This specification applies Low Profile Power Inductors.

2. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

3. Operating Temperature:-40~+105℃(Including self-temperature rise)

Size

A(mm)

B(mm)

C(mm)

D(mm)

252012

2.5±0.2

2.0±0.2

1.2 max.

0.5±0.3

TAI-TECH

Part Number

Inductance

(uH)

Test

Frequency

(Hz)

DCR (Ω)

I sat (A)

I rms (A)

max.

typ.

max.

typ.

max.

typ.

AWP252012AF-R47M

0.47±20%

1V/1M

0.039

0.029

4.00

4.50

3.50

3.80

AWP252012AF-R68M

0.68±20%

1V/1M

0.056

0.046

3.10

3.50

3.00

3.30

AWP252012AF-1R0M

1.00±20%

1V/1M

0.065

0.054

2.70

3.00

2.70

2.90

AWP252012AF-2R2M

2.20±20%

1V/1M

0.125

0.104

2.20

2.50

2.00

2.20

AWP252012AF-3R3M

3.30±20%

1V/1M

0.167

0.139

1.70

1.90

1.70

1.90

AWP252012AF-4R7M

4.70±20%

1V/1M

0.260

0.198

1.40

1.60

1.40

1.60

Note:

Isat：Based on inductance change （△L/L0：≦-30%）@ ambient temp. 25℃

Irms：Based on temperature rise （△T：40℃.）Max

Halogen-free

Halogen
