TAI-TECH

www.tai-tech.com.tw

P1

1. Features

2. Applications

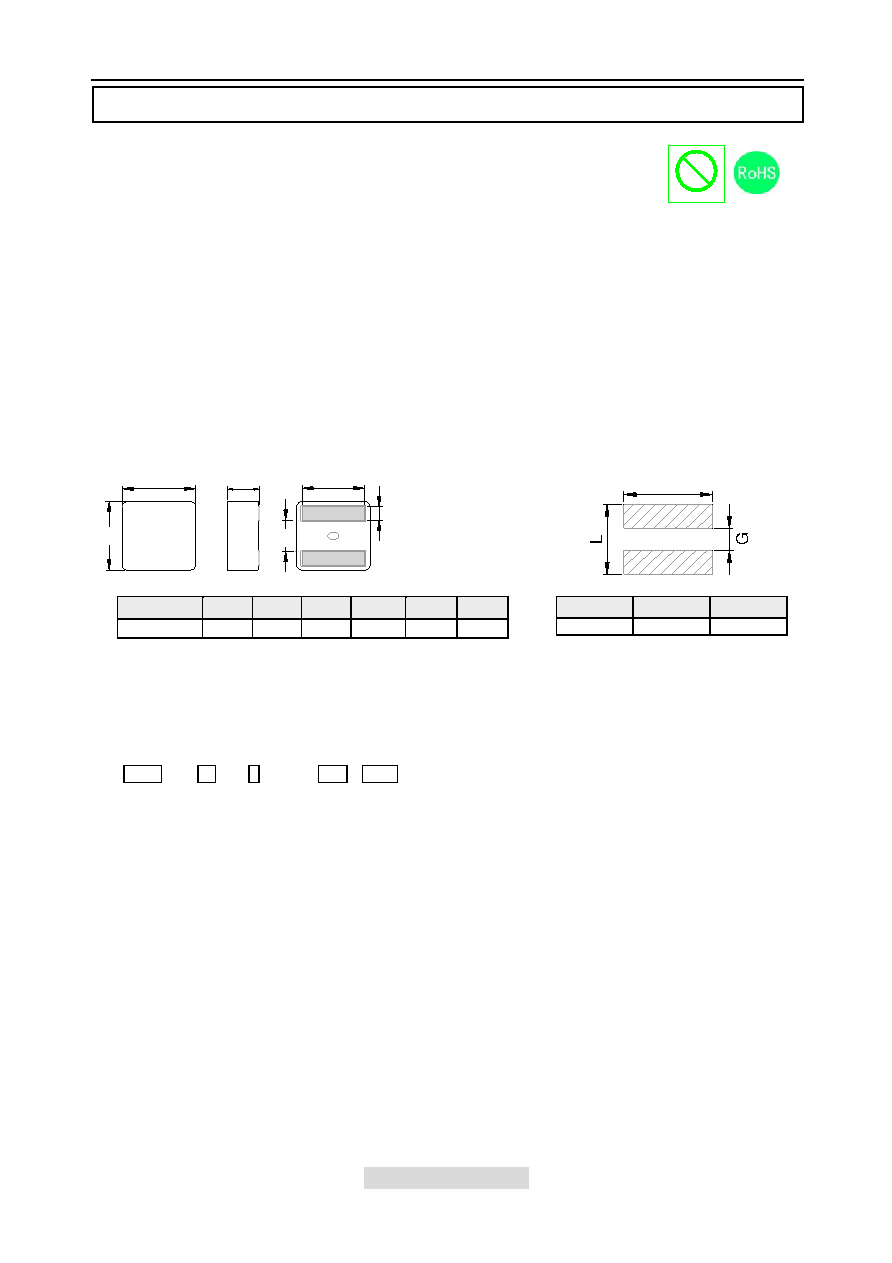

3. Dimensions

B

C

E

F

A

　1R0

D

H

4. Part Numbering

SMD Power Inductor

VMPI42F-Series

Halogen-free

Halogen

Recommend PC Board Pattern

L(mm)

G(mm)

H(mm)

3.4 ref

1.4 ref

3.8 ref

Note: 1、The above PCB layout reference only.

2、Recommend solder paste thickness at

0.12mm and above.

Series

A

B

C

D

E

F

VMPI42F

4.1±0.2

1.9±0.2

3.4±0.3

0.88±0.2 1.6±0.25

Unit:mm

1. Soft saturation.

2. High current，low DCR，high efficiency.

3. Very low acoustic noise and very low leakage flux noise.

4. High reliability.

5. 100% Lead(Pb)-Free and RoHS compliant.

6. Operating temperature -40~+125℃(Including self - temperature rise)

Note PC power system，incl. IMVP-6

DC/DC converter .

VMPI

42

F

-

1R0 MDA

A

B

C

D

E

A: Series

B: Dimension

BxC

C: Type

Material.

D: Inductance

1R0=1.00uH

E: Inductance Tolerance

M=±20%

Marking: Black.1R0 and 1901(19 YY, 01 WW,follow production date).
