FP1008L1-R150-R datasheet(2/6 Pages) EATON

2 / 6 page

Technical Data

10450

Effective December 2015

FP1008L

High frequency, high current power inductors

www.eaton.com/elx

Product Specifications

Part Number8

OCL1

(nH) ±10%

FLL2

(nH) minimum

rms

(amps)

sat1

(amps)

sat2

(amps)

sat3

(amps)

DCR (mΩ)

@ 20°C

K-factor7

L1 Version

FP1008L1-R100-R

100

0.17 ±5%

461

FP1008L1-R150-R

150

108

0.17 ±5%

461

L2 Version

FP1008L2-R150-R

150

108

0.17 ±15%

411

1. Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.1Vrms, 0.0Adc, @ +25°C

2. Full Load Inductance (FLL) Test Parameters: 100kHz, 0.1Vrms, @ I

sat1, @ +25ºC

3. Irms: DC current for an approximate temperature rise of 40°C without core loss. Derating is necessary for AC currents.

PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the

temperature rise. It is recommended that the temperature of the part not exceed 125°C under worst case operating

conditions verified in the end application.

4. Isat1: Peak current for approximately 20% rolloff @ +25°C

5. Isat2: Peak current for approximately 20% rolloff @ +100°C

6. Isat3: Peak current for approximately 20% rolloff @ +125°C

7. K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K * L * ΔI * 10-3 Bp-p: (Gauss),

K: (K-factor from table), L: (Inductance in nH), ΔI (Peak to peak ripple current in Amps).

8. Part Number Definition: FP1008Lx-Rxxx-R

FP1008L = Product code and size

x= Version indicator

Rxxx= inductance value in μH, R= decimal point ,

-R suffix = RoHS compliant

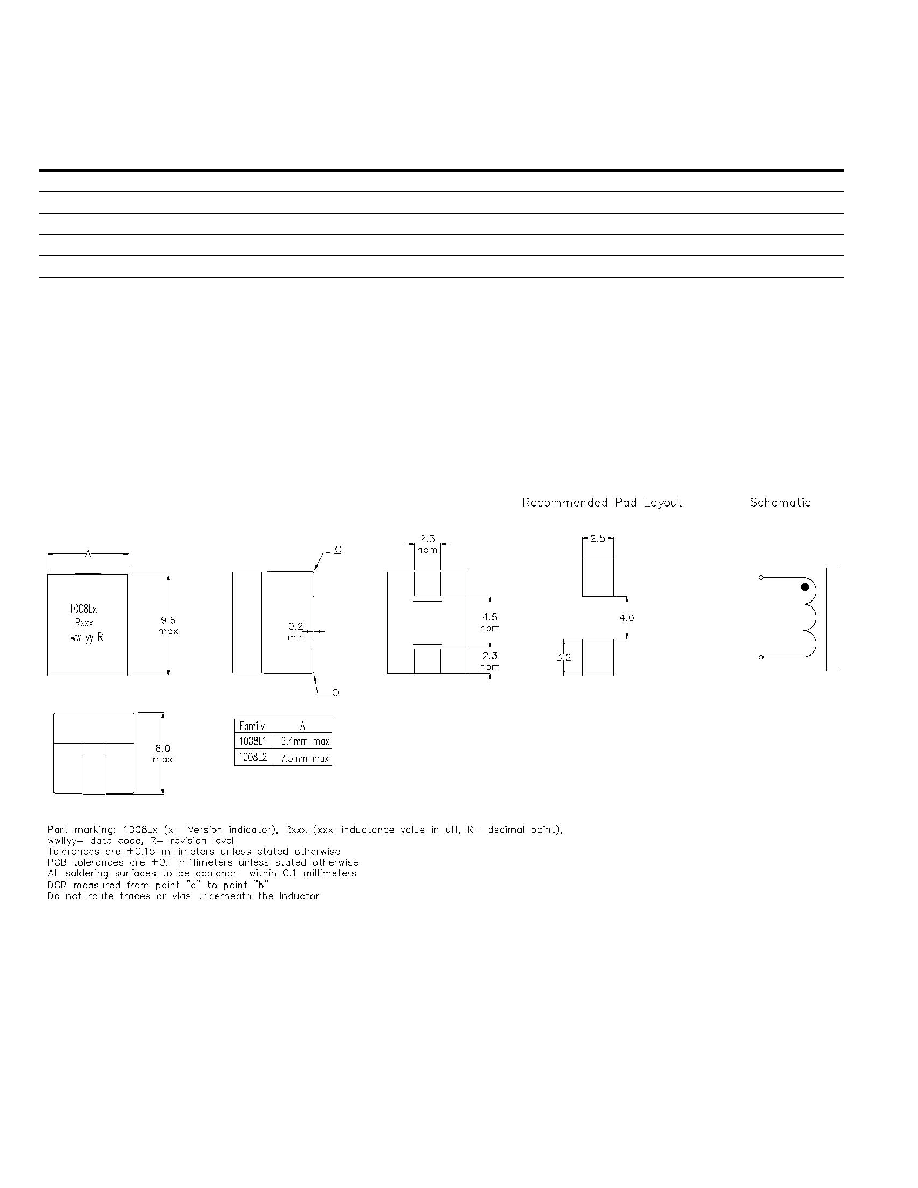

Dimensions (mm)
