Technical Data 10247

Effective June 2014

MPI5451 Series

High current, low profile power inductors

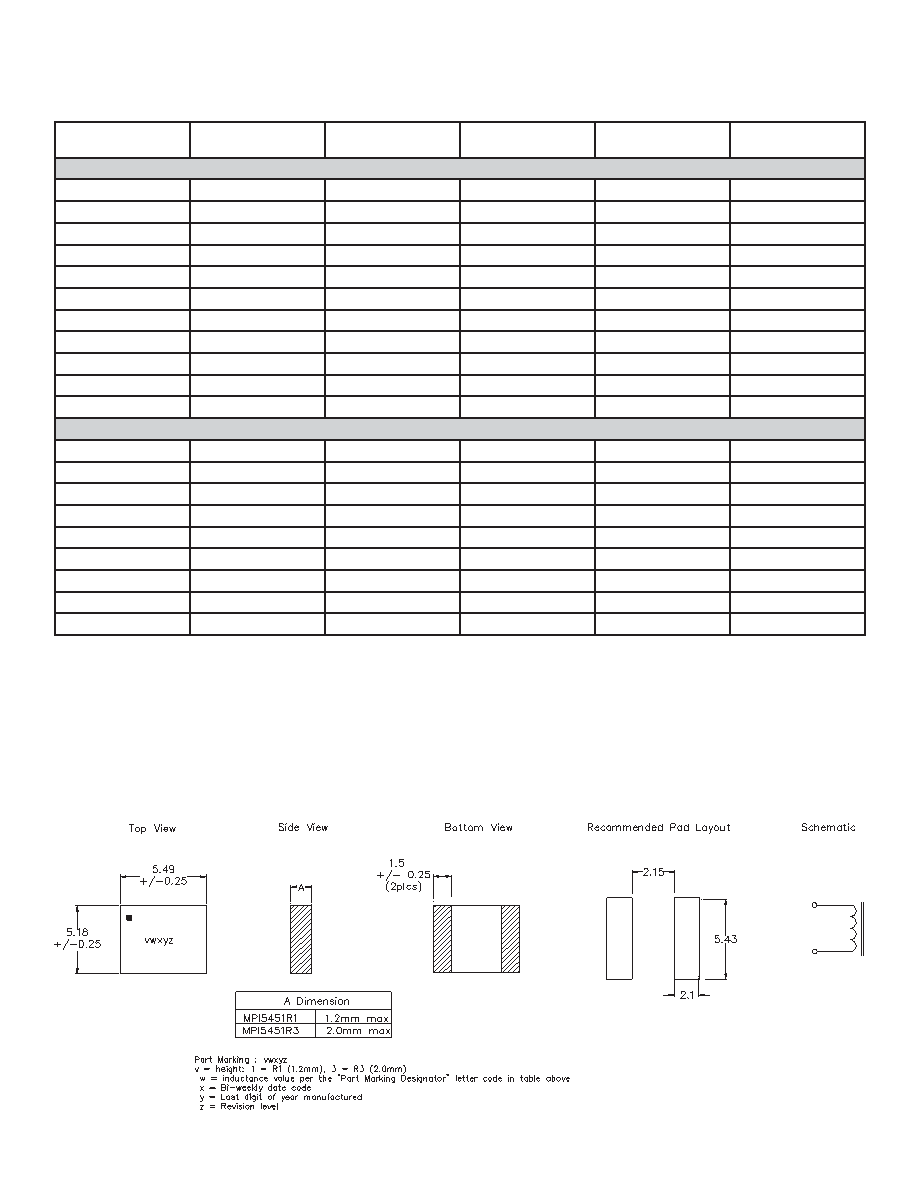

Dimensions - mm

Product specifications

1. Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.1V

25°C

2. I

loss. Derating is necessary for AC currents. PCB layout, trace thickness and

width, air-flow, and proximity of other heat generating components will affect

the temperature rise. It is recommended that the temperature of the part

not exceed 125°C under worst case operating conditions verified in the end

application.

3. I

4. K-factor: Used to determine B

B

ripple current in Amps).

5. Part Number Definition: MPI5451Rx-yyy-R

- MPI5451Rx = Product code and size

- yyy= Inductance value in uH, R = decimal point, if no R is present then third

character = number of zeros

- “-R” suffix = RoHS compliant

(μH) ± 20%

I

rms

2

(Amps)

I

sat

3

(Amps)

DCR (mΩ)

@ 25°C ± 20%

R1 - 1.2mm height

MPI5451R1-R33-R

0.33

6.5

11.5

13

1244

MPI5451R1-R47-R

0.47

6.1

10.9

18

995

MPI5451R1-1R0-R

1.0

4.2

7.2

30

622

MPI5451R1-1R5-R

1.5

3.4

6.1

48

498

MPI5451R1-2R2-R

2.2 ± 15%

2.6

4.8

70

452

MPI5451R1-3R3-R

3.3 ± 15%

2.3

3.8

95

355

MPI5451R1-4R7-R

4.7 ± 15%

2.1

3.5

120

293

MPI5451R1-5R6-R

5.6 ± 15%

1.9

3.1

145

249

MPI5451R1-6R8-R

6.8 ± 15%

1.7

2.8

175

237

MPI5451R1-100-R

10.0 ± 15%

1.3

2.5

290

199

MPI5451R1-150-R

15.0 ± 15%

1.1

2.2

400

155

R3 - 2.0mm height

MPI5451R3-R47-R

0.47

6.0

9.0

8.8

1244

MPI5451R3-R68-R

0.68

5.9

8.0

9.5

995

MPI5451R3-1R0-R

1.0

5.1

6.6

14

711

MPI5451R3-1R5-R

1.5

5.0

5.8

16

553

MPI5451R3-2R2-R

2.2

4.1

5.0

24

452

MPI5451R3-3R3-R

3.3

3.7

4.2

33

383

MPI5451R3-4R7-R

4.7

3.0

3.8

50

293

MPI5451R3-6R8-R

6.8

2.6

3.0

70

249

MPI5451R3-100-R

10.0

2.1

2.4

110

207

Discontinued,

Effective

February

1, 2016

or until

inventory

is depleted.

No recommended

replacement

available
