www.eaton.com/elx

2

Technical Data 10279

RL0809 Series

Unshielded radial leaded drum core inductors

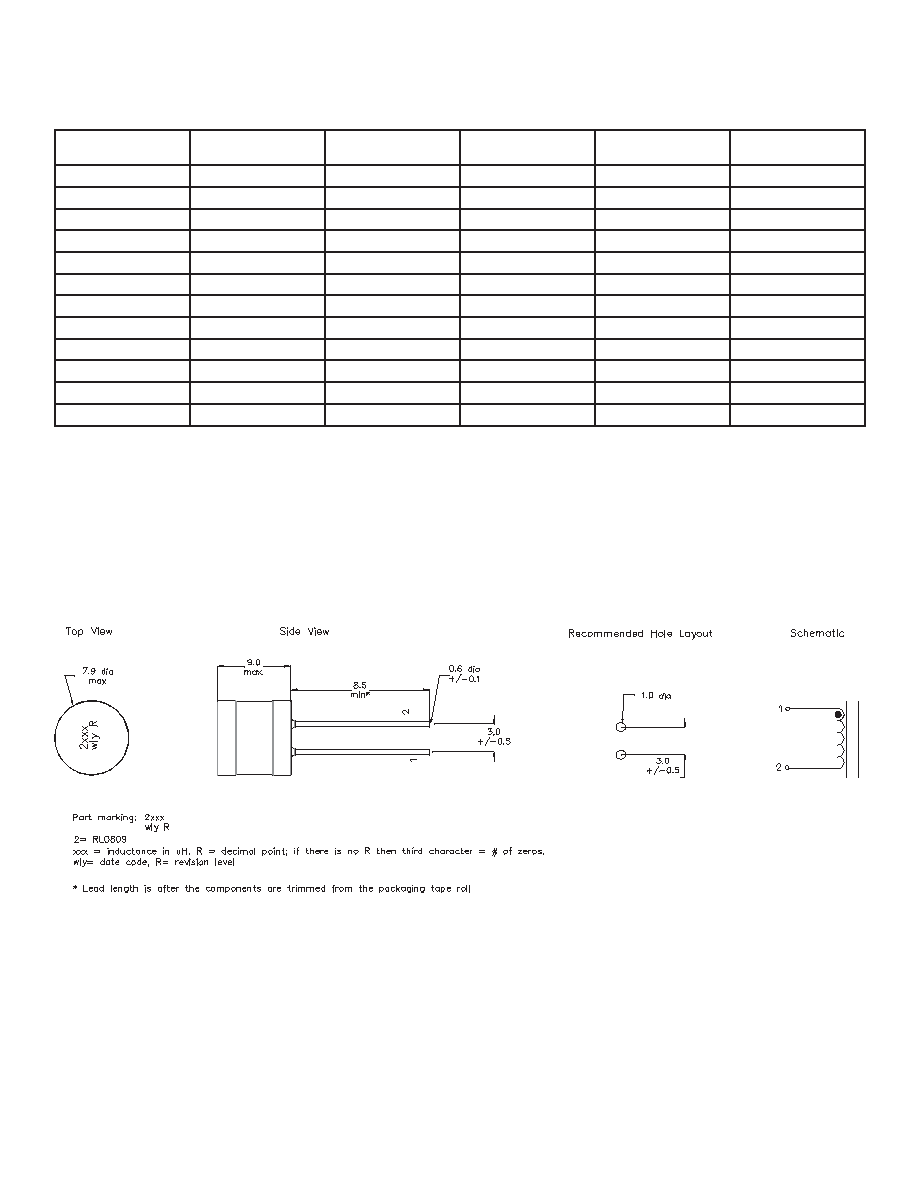

Dimensions - mm

Product specifications

OCL¹

(μH) ±10%

I

rms

2

(amps)

I

sat

3

(amps)

DCR (Ω)

@ 20°C max.

SRF

(MHz) typ.

RL0809-100-R

9.65

2.90

2.47

0.031

18

RL0809-102-R

992

0.312

0.244

2.69

2

RL0809-152-R

1504

0.255

0.198

4.00

2

RL0809-182-R

1792

0.240

0.182

4.52

1

RL0809-222-R

2204

0.207

0.164

6.06

1

RL0809-332-R

3297

0.170

0.134

9.06

1

RL0809-682-R

6796

0.123

0.093

17.3

0.69

RL0809-822-R

8209

0.106

0.085

23.1

0.67

RL0809-103-R

10002

0.099

0.077

26.4

0.59

RL0809-123-R

12011

0.093

0.070

30.0

0.52

RL0809-223-R

21989

0.070

0.052

59.7

0.39

RL0809-333-R

32998

0.058

0.042

78.9

0.31

1. Open Circuit Inductance (OCL) Test Parameters: 10kHz, 0.1V

2. I

loss. Derating is necessary for AC currents. PCB layout, trace thickness and

width, air-flow, and proximity of other heat generating components will affect

the temperature rise. It is recommended that the temperature of the part

not exceed 125°C under worst case operating conditions verified in the end

application.

3. I

4. Part Number Definition: RL0809-yyy-R

- RL0809 = Product code and size

- yyy= Inductance value in μH, R = decimal point,

if no R is present then third character = number of zeros.

- “-R” suffix = RoHS compliant
