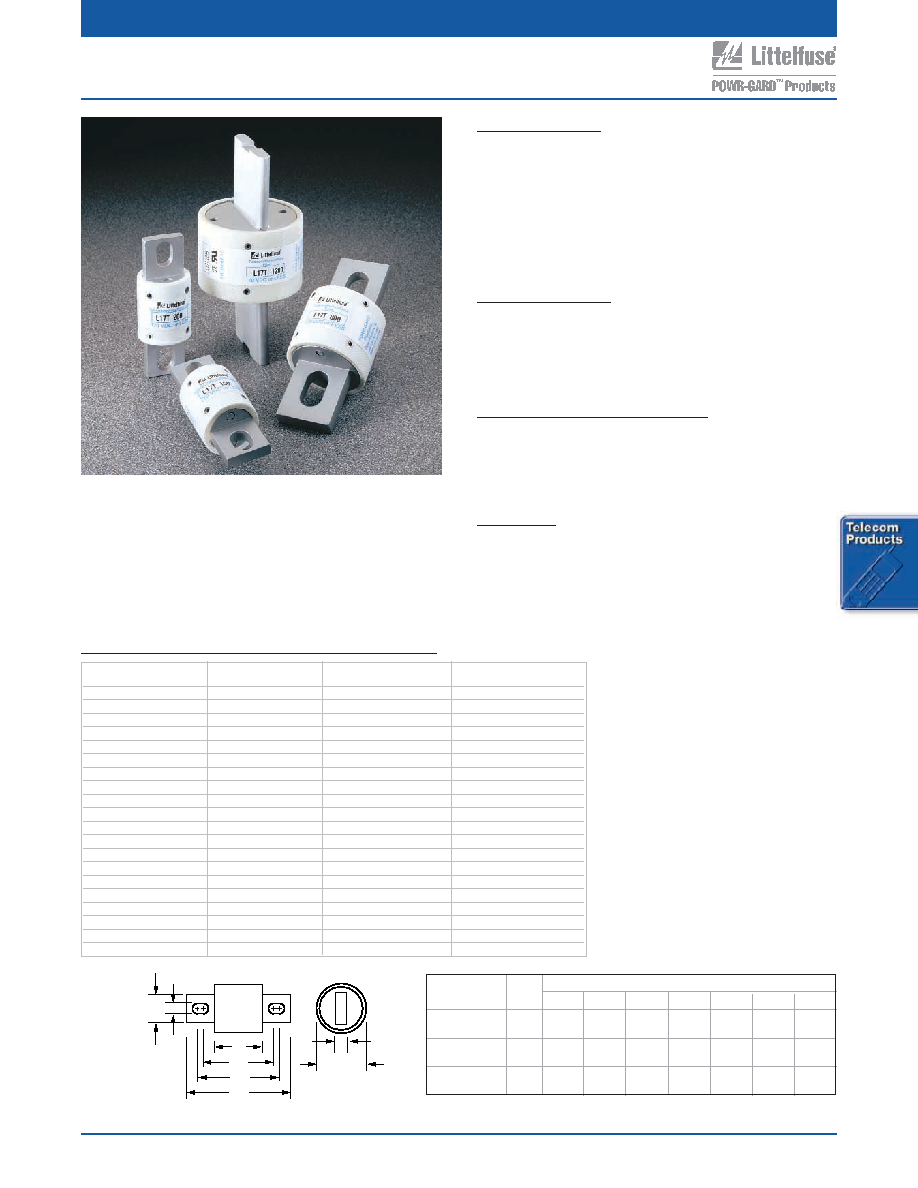

L17T Series Telecommunications Power Fuse

SPECIFICATIONS

Voltage Rating: 170 VDC

Interrupting Rating: 100,000 amperes

Ampere Range: 70 – 1200 amperes

Approvals: UL Recognized under the Components Program

(File No: E71611)

CSA Recognized under the Component

Acceptance Program (File No: LR29862)

AMPERE RATINGS

70

125

200

300

450

800

1100

90

150

225

350

500

900

1200

100

175

250

400

600

1000

Example part number (series & amperage): L17T 200

RECOMMENDED FUSE BLOCKS

LTFD 6001 and LTFD1200 series

Refer to the LTFD series in this catalog section for

additional information.

FEATURES

I

I

Extremely current limiting

I

Low operating temperature

I

170 VDC rating

Specifically designed for short circuit protection of

Telecommunications circuits, the Littelfuse L17T series

fuses provide reliable protection of sensitive DC power

distribution systems. Constructed with silver plated elements

virtually eliminate equipment damage due to surges and

spikes. The L17T series fuse’s unique element geometry

also provides cooler running temperatures, helping to

minimize heat within enclosures.

AMPERE

RATING

70 – 250

1-5/32

1-7/8

2-3/16 2-21/32

1

7/8

5/16

3/16

(29.4)

(47.6)

(55.6)

(67.5)

(25.4)

(22.2)

(7.9)

(4.8)

300 – 800

1-1/4

1-15/16 2-9/16

3-1/2

1-1/2

1

13/32

1/4

(31.8)

(49.2)

(65.1)

(88.9)

(38.1)

(25.4)

(10.3)

(6.35)

1000 – 1200 1-11/32

—

—

4-1/16

—

1-1/2

—

1/4

(34.0)

(103.12)

(38.1)

(6.35)

AB

C

D

E

F

G

H

DIMENSIONS IN INCHES (mm in parentheses)

Contact Littelfuse for characteristic curves.

A

B

C

D

F

G

E

H

Fig. 3

ORDERING INFORMATION & CROSS REFERENCE
