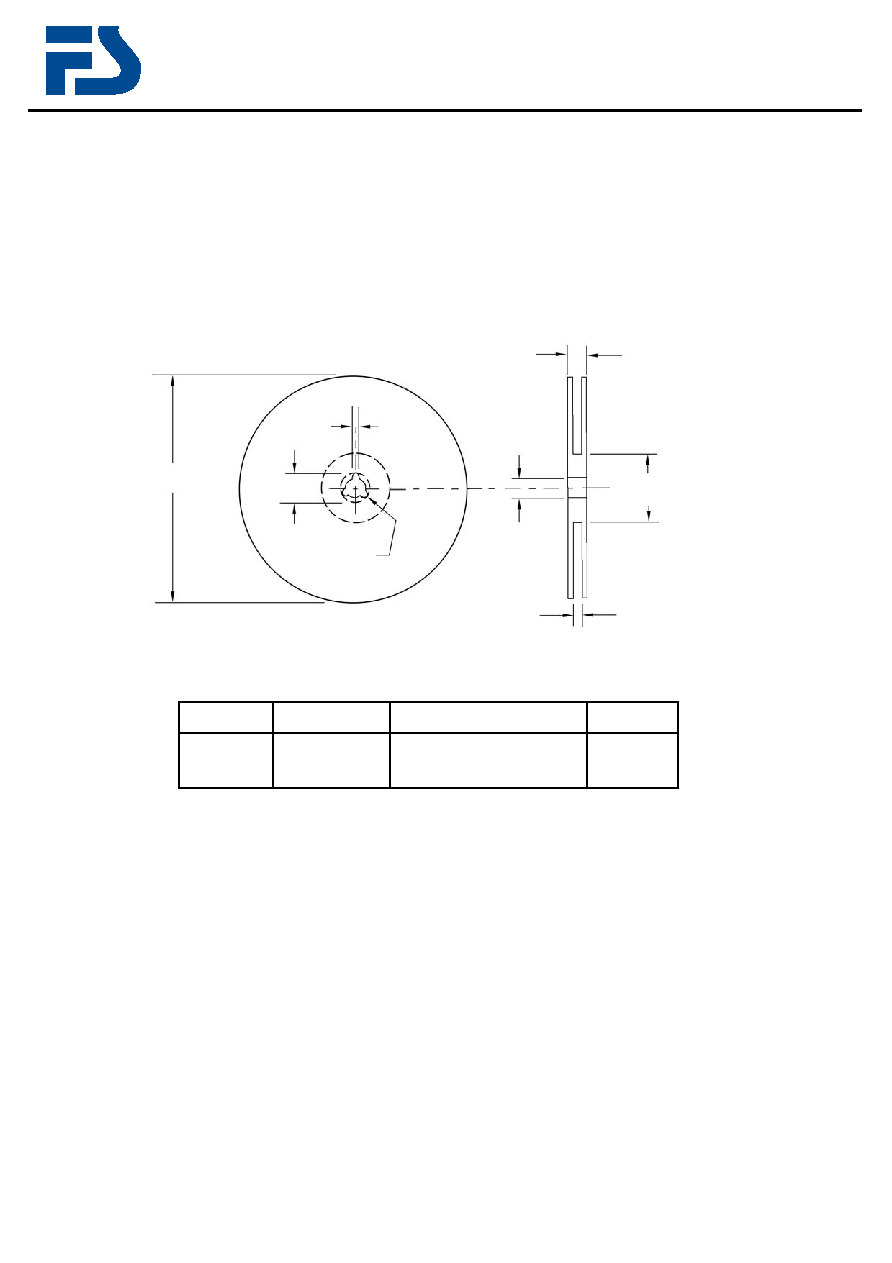

Reel Dimensions

Metric Dimensions Govern –– English are in parentheses for reference only

EMBOSSED TAPE AND REEL DATA

FOR DISCRETES

A

T Max

Outside Dimension

Measured at Edge

G

Inside Dimension

Measured Near Hub

20.2mm Min

(.795’’)

1.5mm Min

(.06’’)

13.0mm ± 0.5mm

(.512 ±.002’’)

50mm Min

(1.969’’)

Full Radius

Size

A Max

G

T Max

8 mm

330mm

(12.992’’)

8.4mm+1.5mm, -0.0

(.33’’+.059’’, -0.00)

14.4mm

(.56’’)

Storage Conditions

Temperature: 5 to 40 Deg.C (20 to 30 Deg. C is preferred)

Humidity: 30 to 80 RH (40 to 60 is preferred )

Recommended Period: One year after manufacturing

(This recommended period is for the soldering condition only. The

characteristics and reliabilities of the products are not restricted to

this limitation)

FTC4081
