S3AB-PJ thru S3MB-PJ

SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIERS

Forward Current: 3 A

Reverse Voltage: 50 to 1000 V

FEATURES



For Surface Mounted Applications



Low Profile Package



Glass Passivated Chip Junction



Easy to Pick and Place



Lead Free in Comply with EU RoHS 2011/65/EU

Directives

MECHANICAL DATA



Case: SMB



Terminals: Solderable Per MIL-STD-750, Method 2026



Weight: Approx. 0.055g

PINNING

DESCRIPTION

1

Cathode

2

Anode

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derating by 20 %.

PARAMETER

SYMBOL S3AB

-PJ

S3BB

-PJ

S3DB

-PJ

S3GB

-PJ

S3JB

-PJ

S3KB

-PJ

S3MB

-PJ

UNITS

Maximum Repetitive Peak Reverse Voltage

VRRM

50

100

200

400

600

800

1000

V

Maximum RMS voltage

VRMS

35

70

140

280

420

560

700

V

Maximum DC Blocking Voltage

VDC

50

100

200

400

600

800

1000

V

Maximum Average Forward Rectified Current

IF(AV)

3

A

Peak Forward Surge Current Note 1

IFSM

90

A

Max Instantaneous Forward Voltage at 3 A

VF

1.1

V

Maximum DC Reverse Current TA = 25°C

at Rated DC Reverse Voltage

TA =125°C

IR

5

100

μA

Typical Junction Capacitance Note 2

CJ

35

pF

Typical Thermal Resistance Note 3

RθJA

RθJC

48

16

°C/W

Operating and Storage Temperature Range

TJ, TSTG

-55 ~ +150

°C

Notes: 1. Measured at 8.3 ms single half sine wave superimposed on rated load (JEDEC Method).

2. Measured at 1MHz and applied reverse voltage of 4 V D.C.

3. P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas.

1

2

Top View

Marking Code

： S3A~S3M

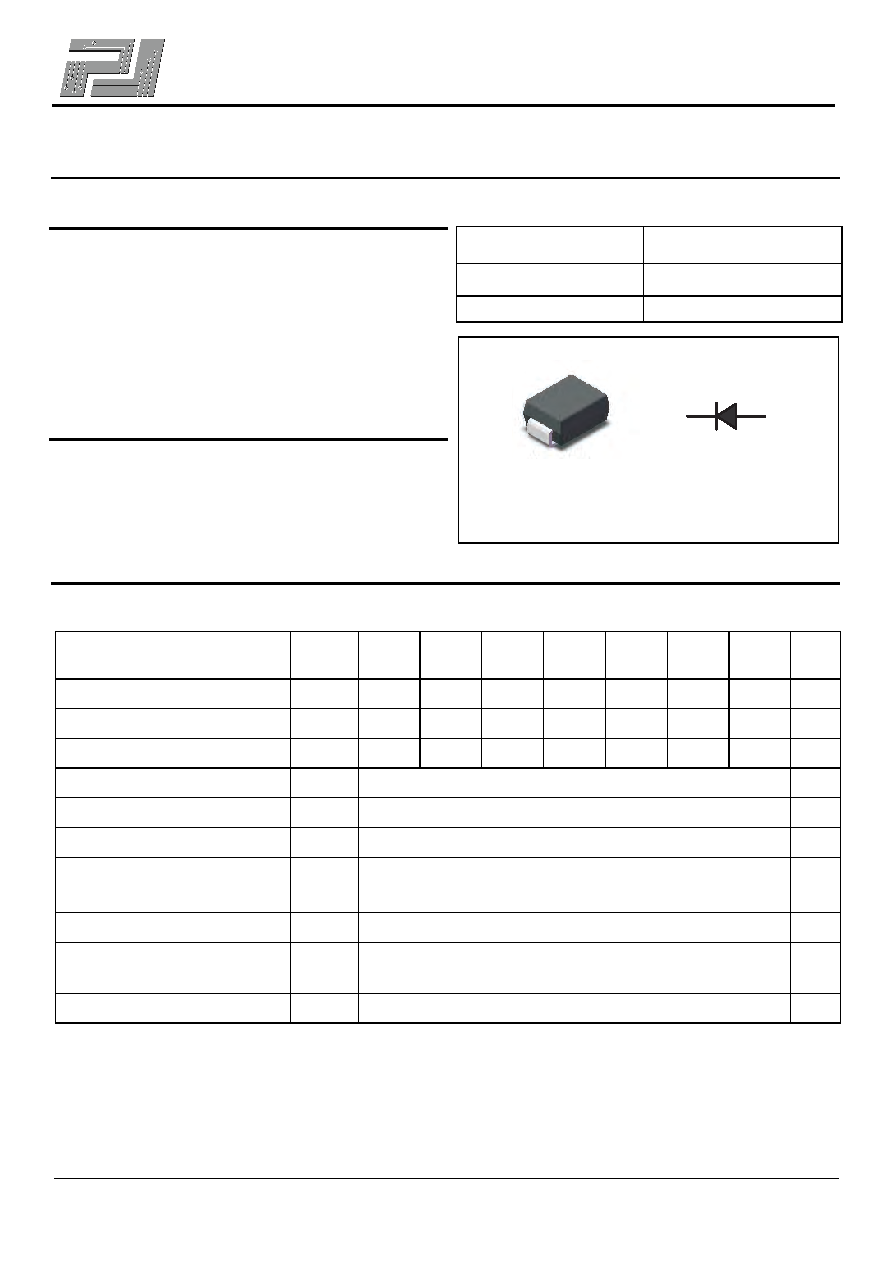

Simplified outline SMB and symbol

1 / 3

www.pingjingsemi.com

Revi

sion:1.0 Oct-2017
